WORKHORSE CUSTOM CHASSIS
Service Manual

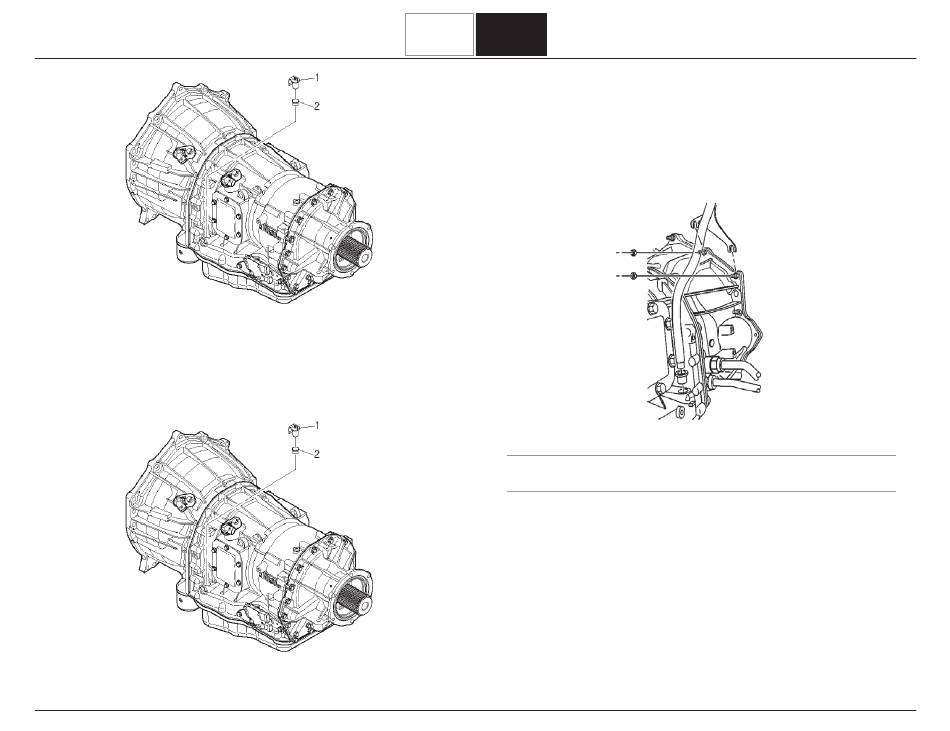

9. Remove the fi ll tube plug (1).
10. Remove the fi ll tube plug seal (2).
Installation Procedure
1. Install a new fi ll tube plug seal (2) into the main
WSM082106
PAGE
SECTION
7.2 489
NOTICE:
© 2006 Workhorse Custom Chassis — All Rights Reserved
Automatic Transmission – Allison
housing.
2. Align the tab on the fi ll tube plug (1) with the tang on
the main housing.
3. Install the fi ll tube plug (1). Press the plug into the seal
(2) until the tab on the fi ll tube plug locks into place in
the notch on the main housing.
4. Install a NEW fi ll tube seal.
Refer to Fastener Notice in Cautions and Notices. Refer to Fastener Notice in Cautions and Notices.
5. Install the fi ll tube. Ensure that the fi ll tube bracket is
positioned properly on the studs.
6. Install the fi ll tube nuts and tighten the nuts to 18 N·m
(13 lb ft).
7. Lower the vehicle.
8. Fill the transmission to the proper level with approved
fl uid.
2007 W Series Chassis
2007 W Series
