Workhorse ALLISON 1000MH Service Manual page 25

WORKHORSE CUSTOM CHASSIS
Service Manual

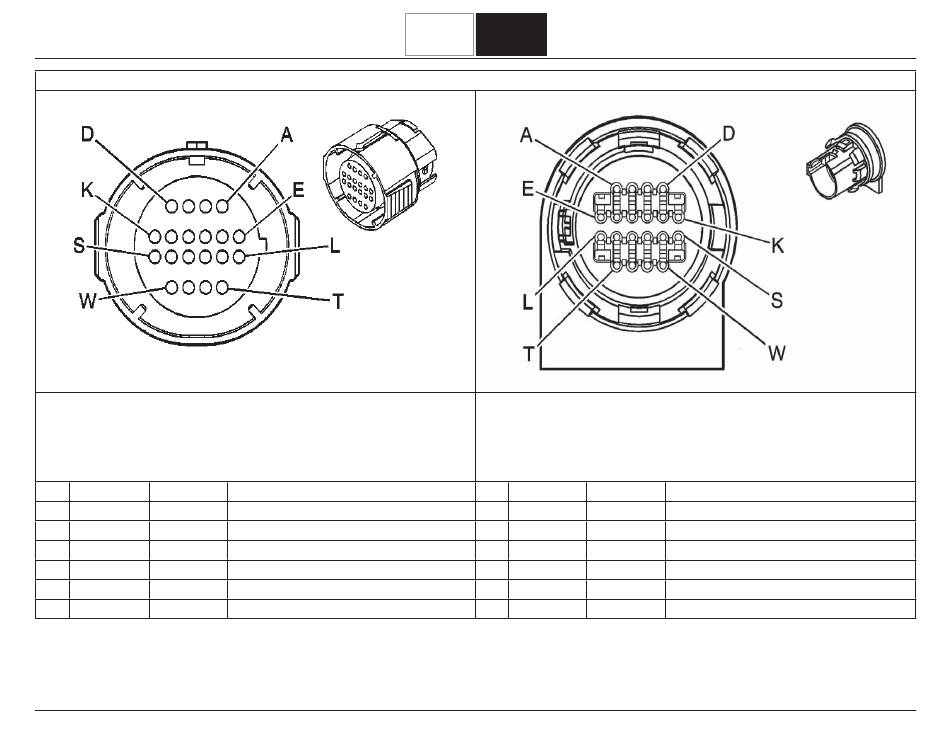

Automatic Transmission Inline Harness Connector End View
Connector Part Information
* OEM: 12186609
* Service: --
* Description: 20-Way F Micro-Pack 100 Series (GY)
Pin Wire Color Circuit No.
R OG/BK 1786
S D-BU 1530
T GY 773
U YE 772
V BK/WH 771
W WH 776
WSM082106
SECTION
Function
Transmission Park/Neutral Signal
Mod Main Solenoid Low
Internal Mode Switch Signal C
Internal Mode Switch Signal B
Internal Mode Switch Signal A
Internal Mode Switch Signal P
© 2006 Workhorse Custom Chassis — All Rights Reserved
PAGE
7.2 25
Automatic Transmission – Allison
Connector Part Information
* OEM: 12160782
* Service: --
* Description: 20-Way M Micro-Pack 100 Series (GY)
Pin Wire Color Circuit No.
R PU 1786
S YE 1530
T BK 773
U PK/BK 772
V YE/BK 771
W WH 776
2007 W Series Chassis
Function
Transmission Park/Neutral Signal
Mod Main Solenoid Low
Internal Mode Switch Signal C
Internal Mode Switch Signal B
Internal Mode Switch Signal A
Internal Mode Switch Signal P
2007 W Series
