Line Pressure; Special Tools - Workhorse ALLISON 1000MH Service Manual

WORKHORSE CUSTOM CHASSIS
Service Manual

LINE PRESSURE

Forward Converter - Torque Converter Clutch Not Applied
Forward Lockup - Torque Converter Clutch Applied
Reverse
Neutral/Park

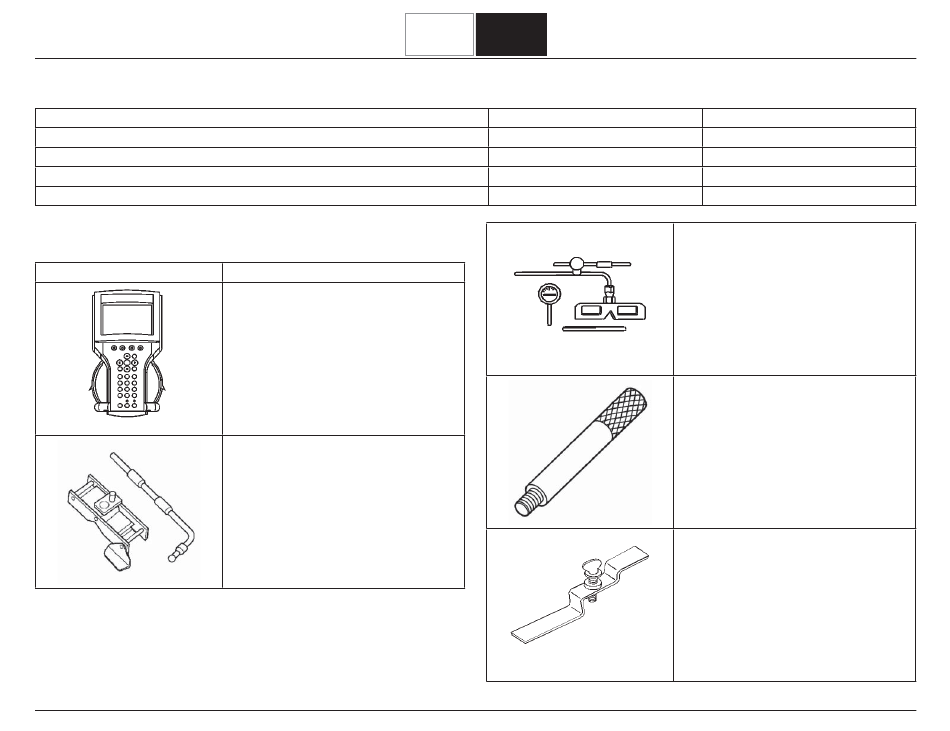

SPECIAL TOOLS

Illustration
WSM082106
SECTION
7.2
Range
Tool Number/ Description
Scan Tool
J 5959
Dial Indicator Clamp and Adjuster
© 2006 Workhorse Custom Chassis — All Rights Reserved
PAGE
16
Automatic Transmission – Allison
Line Pressure @ 600 RPM
700- 380 kPa (101-200 PSI)
N/A
700-1 380 kPa (101-200 PSI)
590-720 kPa (85-105 PSI)
2007 W Series Chassis
Line Pressure @ 2100 RPM
1 515-1 795 kPa (220-260 PSI)
1 000-1 170 kPa (145-170 PSI)
1 515-1 795 kPa (220-260 PSI)
1 515-1 795 kPa (220-260 PSI)
J 7872
Magnetic Base Dial Indicator
J 8092
Universal Driver Handle - 3/4 in - 10
J 21366
Torque Converter Retaining Strap
2007 W Series
