TRANSMISSION FLUID COOLER HOSE/PIPE

CONNECTOR REPLACEMENT
Removal Procedure
1. Disconnect the hose from the transmission oil cooler
pipe connector being replaced.
2. Remove the transmission oil cooler pipe connectors

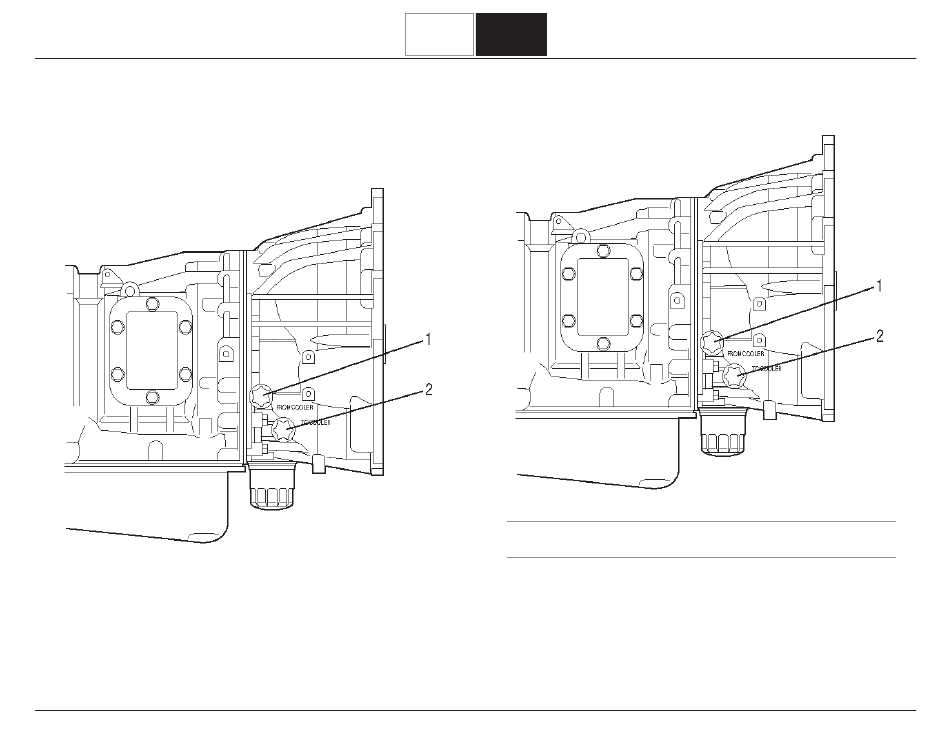

(1) and (2).
WSM082106
PAGE
SECTION
7.2 486
Installation Procedure
NOTICE:
© 2006 Workhorse Custom Chassis — All Rights Reserved
Automatic Transmission – Allison
Refer to Fastener Notice in Cautions and Notices. Refer to Fastener Notice in Cautions and Notices.
1. Install new transmission oil cooler pipe connectors (1)
and (2) and tighten the fi ttings to 25 N·m (18 lb ft).
2. Connect the hose to the transmission oil cooler pipe
connectors.
