Wisdom Sage Series Installation And Owner's Manual
Minimal appearance subwoofer
Hide thumbs
Also See for Sage Series:
- Owner's manual (20 pages) ,
- Installation and owner's manual (12 pages) ,
- Owner's manual (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for Wisdom Sage Series
Summary of Contents for Wisdom Sage Series
- Page 1 Installation and Owner’s Manual Sage Series SUB1 Minimal Appearance Subwoofer Preconstruction Mounting Gypsum and Solid Surface Mounting Final Installation...
-
Page 2: Table Of Contents
Document Conventions This document contains general safety, installation and operation instructions for the Wisdom Audio Sage Series Minimal Appearance loudspeakers. It is important to read this document before attempting to use this product. Pay particular attention to: WARNING: Calls attention to a procedure, practice, condition or the like that, if not correctly performed or adhered to, could result in injury or death. -
Page 3: System Overview

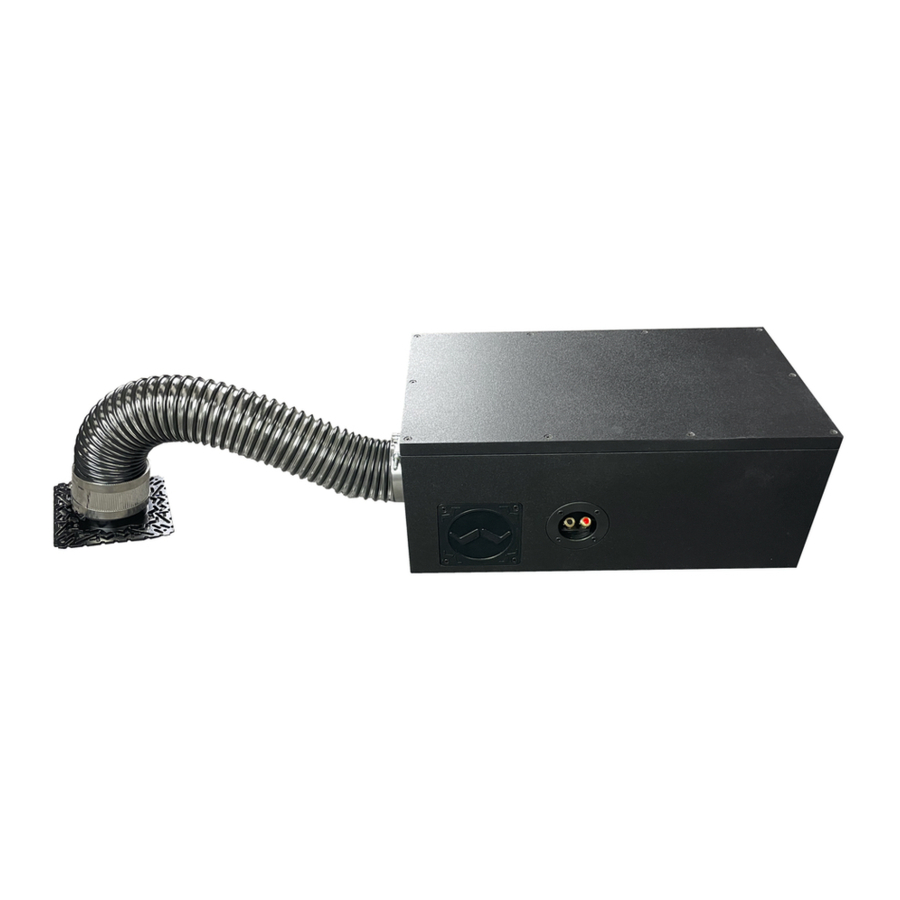

System Overview Connections 1. Band-Pass Cabinet 2. Speaker Termination Binding Posts 3. Primary Bass Snorkel Port Tube Output 4. Alternate Bass Snorkel Port Tube Output 5. Bass Snorkel Port Tube 6. Bass Snorkel Attachment to Mounting Platform (Mounting Platform) NOTE: Bass Snorkel Tube length is not to be altered as it will severely impact the operation of the subwoofer. What is Included: Band-Pass woofer assembly box for installing into the ceiling joists The “Bass Snorkel”... -
Page 4: Quickstart Installation Guide
QuickStart Installation Guide: The installation of the SUB1 can be broken down into several simple steps. The installation of the SUB1 is intended to be a pre-construction process as it requires access to the space within the ceiling joists. The SUB1 fits within standard ceiling joists that are spaced between 12”... -
Page 5: Grill Depth Adjustment
Grill Depth Adjustment: These instructions are for ceilings that have been finished and painted. The system is now ready to have the grille plane set using the Magnetic Recoil Fastener (Pat. Pend). and the grille secured in place. Use the Paint Shield to set the plane of the grille as it has access holes for the adjustment screws so the depth can be adjusted with ease. -
Page 6: Grill Painting (Optional)
Linkwitz-Riley. The SUB1 in-ceiling Minimal Appearance subwoofer is designed to work seamlessly with the ICS3 when used with a Wisdom Audio SC-2 or SC-3 system controller, or other processor capable of implementing the correct crossover between for the ICS3. -
Page 7: North American Warranty
During the warranty period, any Wisdom Audio loudspeaker exhibiting defects in materials and/or workmanship will be repaired or replaced, at our option, without charge for either parts or labor, at our factory. The warranty will not apply to any Wisdom Audio loudspeaker that has been misused, abused, altered, or installed and calibrated by anyone other than an authorized Wisdom Audio dealer. -
Page 8: Obtaining Service
If your Wisdom Audio loudspeaker must be serviced, please contact your dealer. Your dealer will then decide whether the problem can be remedied locally, or whether to contact Wisdom Audio for further service information or parts, or to obtain a Return Authorization. -
Page 9: Specifications
Specifications Note: All specifications are subject to change at any time, in order to improve the product. Frequency response 37Hz – 140 Hz +/- 3dB Impedance 8 ohms Sensitivity 85dB SPL (2.83V @ 1m) Recommended Amplifier Power 100 Watts Maximum Amplifier Power 300 Watts Dimensions HxWxD 7.9”... - Page 10 WISDOM and the stylized W are registered trademarks of Wisdom Audio. Magnetic Recoil Fastener (Pat. Pend). Wisdom Audio 1572 College Parkway, Suite 164 Carson City, Nevada 89706 USA Telephone: 775.887.8850 Fax: 775.887.8820 www.wisdomaudio.com SUB1OM-1.0 © 11/17/2020 Wisdom Audio, Inc. All rights reserved.
