Installation and Owner's Manual
Sage Series ICS3
Minimal Appearance Point Source Loudspeaker
ICS3-SPMD Installation with Gypsum or Solid Surface

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sage Series and is the answer not in the manual?

Questions and answers

Related Manuals for Wisdom Sage Series

Summary of Contents for Wisdom Sage Series

  • Page 1 Installation and Owner’s Manual Sage Series ICS3 Minimal Appearance Point Source Loudspeaker ICS3-SPMD Installation with Gypsum or Solid Surface...

  • Page 2: Table Of Contents

    Table of Contents Introduction ......................................4 Overview ......................................4 System Overview ....................................5 Connections ....................................5 Installing into the Mounting Platform ..............................6 ICS3-SPMD (Spiral Magnetic Planar Driver) Installation Into ICS3-Backbox: .................. 6 Grille Depth Adjustment: ................................7 Grille Painting (Optional) ..................................8 ICS3 with Subwoofers ..................................
  • Page 3 Document Conventions This document contains general safety, installation and operation instructions for the Wisdom Audio Sage Series Minimal Appearance loudspeakers. It is important to read this document before attempting to use this product. Pay particular attention to: WARNING: Calls attention to a procedure, practice, condition or the like that, if not correctly performed or adhered to, could result in injury or death.

  • Page 4: Introduction

    You do not have to do anything to register your warranty for your Wisdom Audio products. (Isn’t that a pleasant surprise?) In the unlikely event that your loudspeakers ever require service, please contact the dealer from whom you purchased them. Between their records and ours, you should be all set.

  • Page 5: System Overview

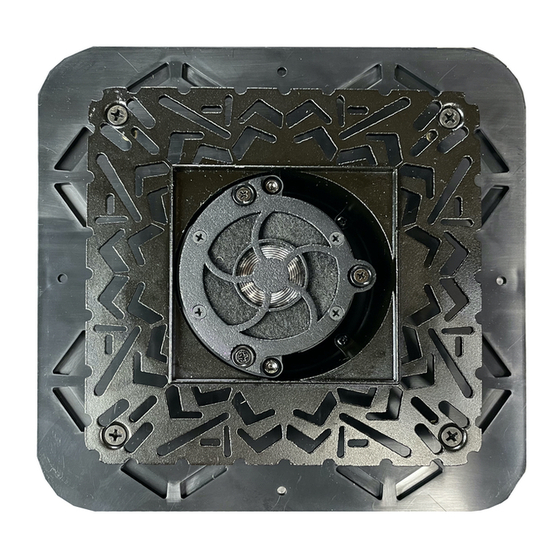

    System Overview The ICS3 Minimal Appearance Point Source Loudspeaker has several components that make up a complete system. A complete installation takes into account the type of ceiling surface and the size and shape of the grille opening. The finished installation matches flush mount lighting with both a completely flush grille and a seamless aesthetic with the lighting design.

  • Page 6: Installing Into The Mounting Platform

    Installing into the Mounting Platform ICS3-SPMD (Spiral Magnetic Planar Driver) Installation Into ICS3-Backbox: These instructions are for ceilings that have been finished and painted and are using the Gypsum Mounting Platform or the Solid Surface Mounting Kit. The Mounting Platform must be installed during pre-construction and the prewire must be completed and connected to the ICS3-Backbox containing the mid-bass driver.

  • Page 7: Grille Depth Adjustment

    Step 5: Check for tight fit (hand tighten only!) Step 6: Replace Paint Shield for setting the grille depth (next section) NOTE: There is a protective plastic film on the ICS3-SPMD. Do not remove it unil after you have completed installation. Magnetic Recoil Fastener (Pat.

  • Page 8: Grille Painting (Optional)

    In some installations, the ICS3 may be used full-range rather than with a subwoofer. If so, we recommend using a high-performance Wisdom Audio SA amplifier or comparable with between 100-300 watts per channel and a high pass filter to keep excess bass from the speakers of no lower than 80hz.

  • Page 9: North American Warranty

    During the warranty period, any Wisdom Audio loudspeaker exhibiting defects in materials and/or workmanship will be repaired or replaced, at our option, without charge for either parts or labor, at our factory. The warranty will not apply to any Wisdom Audio loudspeaker that has been misused, abused, altered, or installed and calibrated by anyone other than an authorized Wisdom Audio dealer.

  • Page 10: Obtaining Service

    If your Wisdom Audio loudspeaker must be serviced, please contact your dealer. Your dealer will then decide whether the problem can be remedied locally, or whether to contact Wisdom Audio for further service information or parts, or to obtain a Return Authorization.

  • Page 11: Specifications

    Specifications Note: All specifications are subject to change at any time, in order to improve the product. Frequency response 85Hz - 30kHz +/- 3dB Impedance 8 Ohms Sensitivity 85dB / 2.83V / 1m Minimum recommended power 100 Watts Maximum recommended power 300 Watts Standard 3"...
  • Page 12 WISDOM and the stylized W are registered trademarks of Wisdom Audio Magnetic Recoil Fastener (Pat. Pend) Wisdom Audio 1572 College Parkway, Suite 164 Carson City, Nevada 89706 USA Telephone: 775.887.8850 Fax: 775.887.8820 www.wisdomaudio.com ICS3SPMDIM-1.0 ©11/17/2020 Wisdom Audio, Inc. All rights reserved.
