Summary of Contents for Wisdom SCS-2

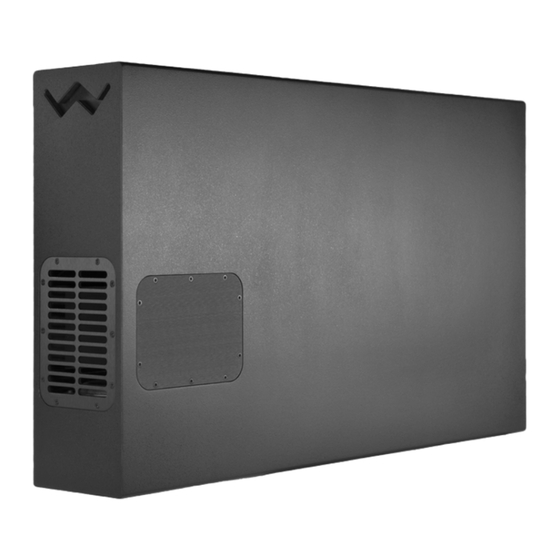

- Page 1 Owner’s Manual SCS-2 High Output RTL Subwoofer ®...
-
Page 2: Table Of Contents
Dimensions | 11 DOCUMENT CONVENTIONS This document contains general safety, installation, and operation instructions for the Wisdom Audio High Output RTL® Subwoofer. It is important to read this document before attempting to use this product. Pay particular attention to: WARNING: Calls attention to a procedure, practice, condition or the like that, if not correctly performed or adhered to, could result in injury or death. -
Page 3: Introduction
Audio’s Sage Series. This manual focuses on the SCS-2 subwoofer itself. While we expect your local Wisdom Audio dealer to take care of the setup and calibration of the system, we still recommend that you at least briefly review this and the other manuals (SA-DSP Series amplifiers) to understand the system’s full... -
Page 4: Unpacking
It is unwise for a single person to attempt doing so. Do not attempt to lift your SCS-2 while bending or twisting from the waist. Use your legs for lifting, not your back. Always stand as straight as possible and keep the SCS-2 close to your body to reduce strain on your back. - Page 5 (The minimization of these reflections is one of the strongest arguments for the tall, line source loudspeakers that Wisdom Audio builds.) This leaves you with eight “first reflections” that you should consider minimizing somehow. These points are easily found by having an assistant slide a small mirror along the four walls of the room, while you sit at the listening position.
- Page 6 Rooms by Dr. Floyd Toole, Focal Press Setting Up your SCS-2 The unusual form factor of the SCS-2 allows it to be used effectively in many situations where a more conventional “bass cube” would be either cumbersome or impossible. Examples include locating it behind a couch, in the small space between the couch and the wall or lying flat under a set of risers in a home theater with multiple rows of seating.
-
Page 7: North American Warranty
RTL to work properly. Connections Speaker Terminals Connect the + and – terminals of the power amplifier that is driving the SCS-2 to the corresponding + and – terminals of the SCS-2, located in the recessed input cup. -
Page 8: Obtaining Service
If your Wisdom Audio loudspeaker must be serviced, please contact your dealer. Your dealer will then decide whether the problem can be remedied locally, or whether to contact Wisdom Audio for further service information or parts, or to obtain a Return Authorization. The Wisdom Audio Service Department works closely with your dealer to solve your service needs expediently. -
Page 9: Specifications
If the packaging to protect the unit is, in our opinion or that of our dealer, inadequate to protect the unit, we reserve the right to repackage it for return shipment at the owner’s expense. Neither Wisdom Audio nor your dealer can be responsible for shipping damage due to improper (that is, non-original) packaging. - Page 10 • Maximum SPL: 120dB / 25 Hz /1m • Dimensions: See appropriate dimensions drawings on next page • Shipping weight, each: 72 lbs. (33 kg) For more information, see your Wisdom Audio dealer or contact: Wisdom Audio 1572 College Parkway, Suite 164 Carson City, NV 89706 wisdomaudio.com...
-
Page 11: Dimensions
SCS-2 Dimensions SCS-2 WISDOMAUDIO.COM... - Page 12 WISDOM and the stylized W are registered trademarks of Wisdom Audio. Wisdom Audio 1572 College Parkway, Suite 164 Carson City, Nevada 89706 USA (775) 887-8850 (775) 887-8820 wisdomaudio.com SCS-2 OM © 12/2021 Wisdom Audio, Inc. All rights reserved. Printed in U.S.A.
