Summary of Contents for Wisdom SRS High Output RTL
- Page 1 Owner’s Manual ® High Output RTL Subwoofer SRS OM © 12/5/2024 Wisdom Audio, Inc. All rights reserved. Printed in U.S.A.
- Page 2 | 12 SRS Dimensions | 13 DOCUMENT CONVENTIONS This document contains general safety, installation, and operation instructions for the Wisdom ® Audio High Output RTL Subwoofer. It is important to read this document before attempting to use this product. Pay particular attention to: WARNING: Calls attention to a procedure, practice, condition or the like that, if not correctly performed or adhered to, could result in injury or death.
- Page 3 Large Micro LED Display installations. We recognize that setting up a Wisdom Audio High Output RTL subwoofer can be a bit more involved than connecting a common sealed or ported subwoofer, which is why we...

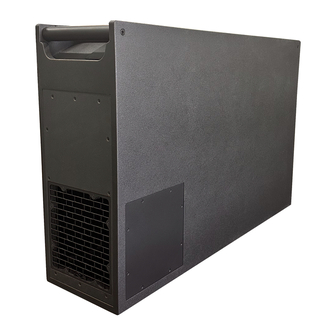

- Page 4 Unpacking the SRS The Wisdom Audio SRS subwoofer is a substantial piece of equipment. Please exercise caution when unpacking your SRS to ensure that you do not strain yourself from its (perhaps unexpected) weight. The handles on the ends of the SRS can be used for lifting.
- Page 5 Subwoofer Placement (An Introduction) Subwoofers offer somewhat greater flexibility in placement since the frequencies they reproduce are not readily localizable by the human ear. This is because the wavelengths they reproduce are more than 10 feet (3 meters) long, but our ears are located only about 6-7 inches (17 cm) apart.
- Page 6 Room treatment for satellite speakers is quite different and can be very effective in changing the sound character of the room and improving detail, intelligibility, and imaging. More information on this can be found in other Wisdom publications not dedicated to subwoofer installation.
- Page 7 Find someone who specializes in and has a great deal of experience designing home studios, home theaters, and the like. Your Wisdom Audio dealer may be such a person; failing that, he/she can help you find such a professional.
- Page 8 Swap the grille and vent panels. Reattach the panels in their new positions ensuring the Wisdom logo is rotated to the top. See below. The grille is square allowing it to be rotated so the Wisdom logo is...
- Page 9 Like most of the Wisdom Audio subwoofers, the SRS is a passive subwoofer, meaning that it does not come with a built-in “plate” amplifier or internal crossover. It must be driven with an external amplifier and the crossover function must be provided by the surround preamplifier in the system, or by the amplifier.
- Page 10 The warranty will not apply to any Wisdom Audio products that have been misused, abused, altered, or installed and calibrated by anyone other than an authorized Wisdom Audio dealer.
- Page 11 Wisdom Audio for further service information or parts, or to obtain a Return Authorization. The Wisdom Audio Service Department works closely with your dealer to solve your service needs expediently.
- Page 12 Dimensioned drawings on next page. • Product weight, each: 147 (66.7 kg) • Shipping weight, each: ~158 (71.8 kg) w/o pallet For more information, see your Wisdom Audio dealer or contact: Wisdom Audio 1572 College Parkway, Suite 164 Carson City, NV 89706 wisdomaudio.com...
- Page 13 SRS Dimensions X.XX inches [X.XX] cm...
- Page 14 WISDOM and the stylized W are registered trademarks of Wisdom Audio. Wisdom Audio 1572 College Parkway, Suite 164 Carson City, Nevada 89706 USA (775) 887-8850 (775) 887-8820 wisdomaudio.com SRS OM © 12/5/2024 Wisdom Audio, Inc. All rights reserved. Printed in U.S.A.
