Using the Edit Menu

Creating a Standard Waveform

You can create a new waveform using the standard waveform dialog box.

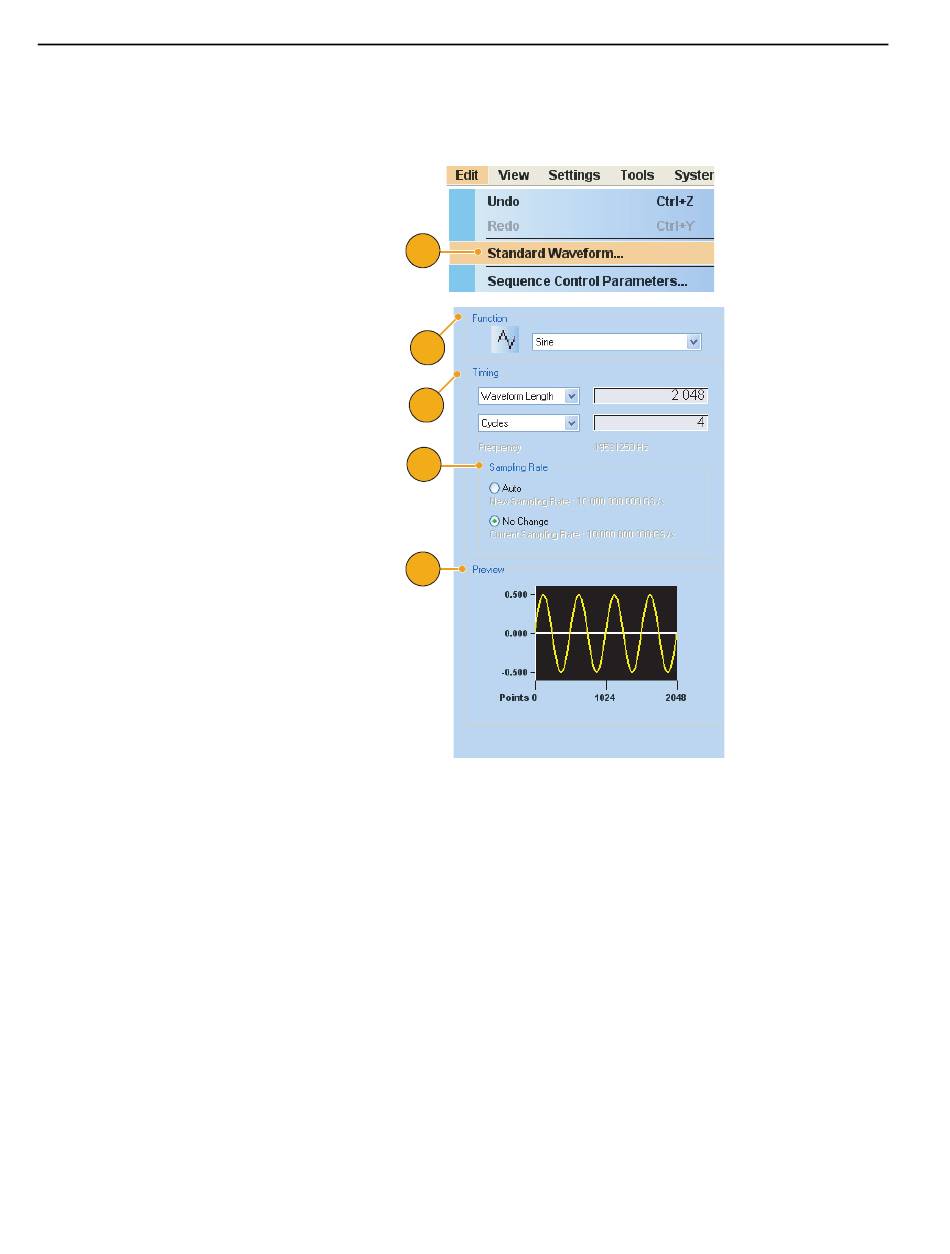

1. Select Edit > Standard Waveform... to
open the Standard Waveform dialog
box.
2. Use Function to select a waveform
type. You can select a waveform from
Sine, Triangle, Square, Ramp, Gaus-
sian Noise, and DC.
3. Use Timing to set parameters for
Frequency, Waveform Length, and
Cycle.
4. Select Auto or No Change in Sampling
Rate.
Auto
■
Sampling rate and waveform length
are automatically set to appropriate
values.
No Change
■
Sampling rate is not changed. You
can select any two parameters from
frequency, waveform length, and
cycle. The remaining parameter will
be calculated automatically.
5. A waveform is displayed on the Preview
screen.
