Features and Controls

30 kW Residential Generator

Read this Operator's Manual and Important Safety Instructions before operating your generator.
Compare the illustrations of this 30kW model with your generator to familiarize yourself with the locations of various
controls and adjustments. Save this manual for future reference.
a
Generator is pictured with access doors removed for clarity

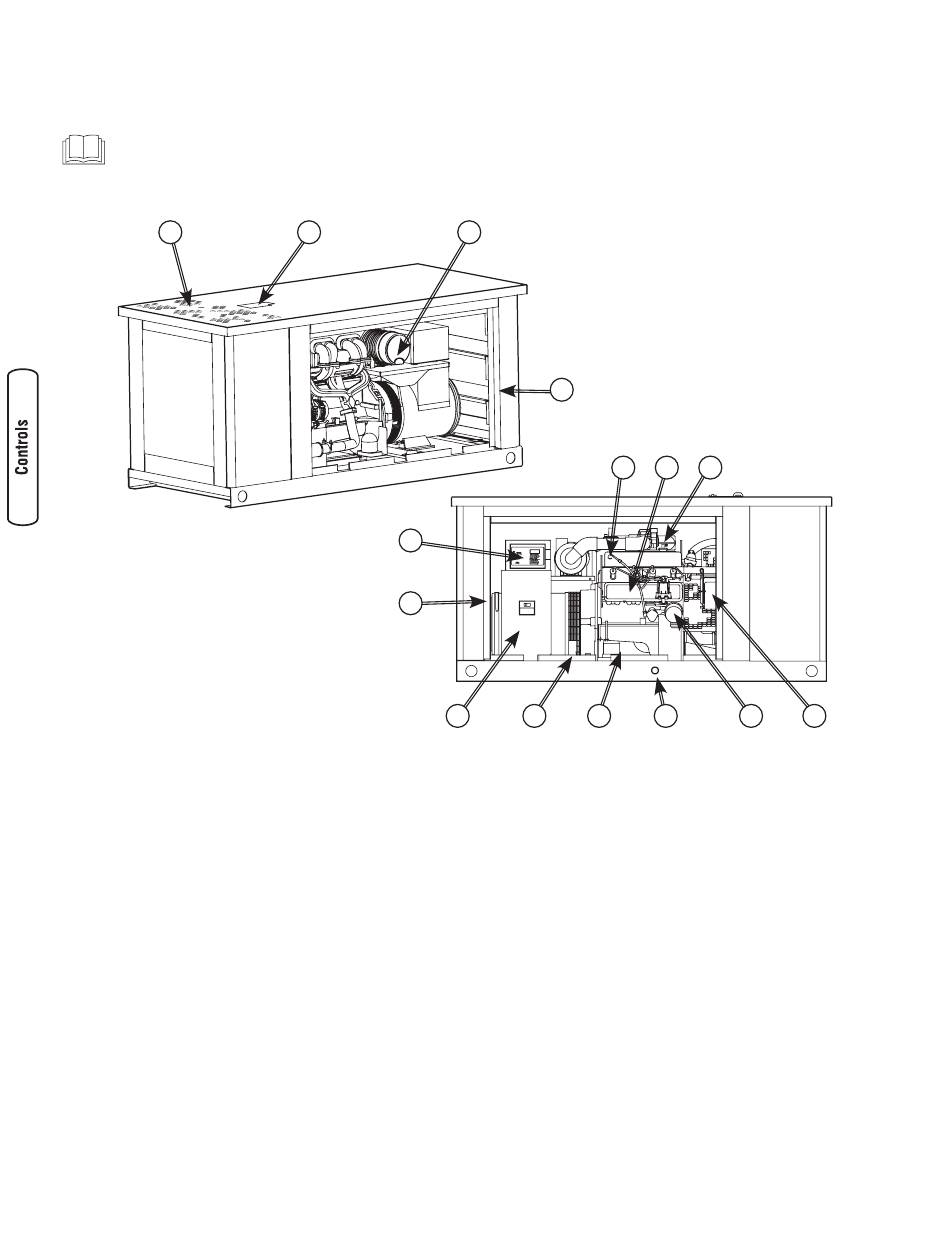

A - Exhaust Port — High-performance muffler lowers
engine noise to comply with most residential codes.
B - Coolant Fill Door — Provides access for servicing
engine with oil and coolant.
C - Air Cleaner — Protects engine by filtering dust and
debris out of intake air.
D - Battery Door opening — Provides access to starting
battery and air cleaner.
E - Oil Dip Stick — Used to check the engine oil level.
F - Engine Label — Identifies engine model and type.
G - Oil Fill Cap — Remove to service the engine with
recommended oil.
12
C
B
R
P
N
D
E F
L
M K
H - Coolant Recovery Bottle — Provides visual
indicator of engine coolant level.
J - Oil Filter — Filters engine oil to prolong system life.
K - Fuel Inlet — Fuel supply is connected here.
L - Oil Drain Hose — Provided to facilitate oil changing.
M - ID Label (located on base) — Identifies unit by
serial number.
N - Circuit Breaker Enclosure - Equipped with
removable bottom to assist with conduit connection.
P - Control Panel Door opening — Provides access to
control panel, oil filter, etc. (may be two doors)
R - Control Panel — Used for various test, operation and
maintenance functions. See System Control Panel.
G
J
H
