22 en | Connections
2.2

Network (and power)

CAUTION!
!
Never supply power via the Ethernet connection (PoE) when
power is supplied via the power connector.
A LA R M
UTP Cat 5 RJ45

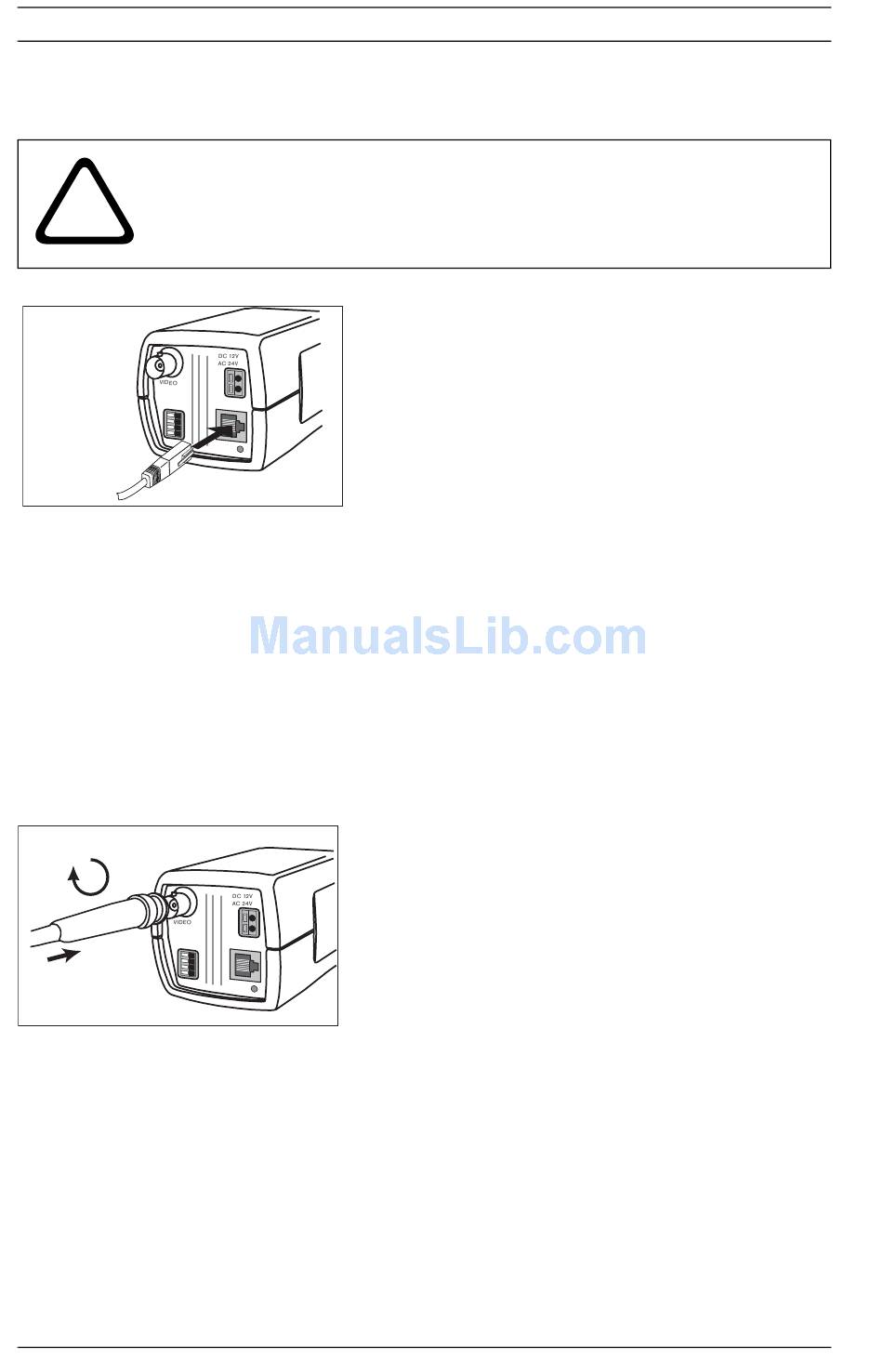

Fig. 2.2 Network and power connection
The multicolored LED under the Ethernet connection indicates
Power (red), IP connection (green) and IP traffic (green flash-
ing). It can be disabled in the Settings/Camera Settings/
Installer options menu.
2.3

Video service monitor

A LA R M
Fig. 2.3 Service monitor connection
V 2.5 | 2007.6
- connect the camera to a 10/100 Base-T network.
- use a shielded UTP Category 5 cable with RJ45
connectors.
- Power can be supplied to the camera via the Eth-
ernet cable compliant with the Power-over-Ether-
ET H
net (IEEE 802.3af) standard.
- connect a service monitor to the composite video
BNC connector to aid installation.
- a monitor connected close to the camera via this
connection can also be used in parallel with
remote PC viewing.
ET H
