DESCRIPTION

This relay allows the most basic and common functions to be carried out: opening a door, activating a light, etc.

For more advanced functions not available in this relay, FERMAX has the DUOX PLUS relay ref. 3267.

Programming is very simple, even if the factory default parameters are already the ones desired by the installer, you will not

even have to program anything. Just connect and that's it.

Using jumper JP1, the relay can be programmed as:

Block Relay (Default value: block = 00): Only the devices in that BLOCK can activate the relay (outdoor panels, guard unit or

monitors / telephones)

General Entrance Relay: All users of the installation can activate the relay.

The relay can be programmed to activate with the following actions :

Door opening.

F1 (default activation parameter).

Call from the panel or concierge.

The relay activation time can also be programmed: [1 s, 99 s]. The factory default is 4 s.

CONNECTIONS

Bus Input: to connect the DUOX PLUS bus.

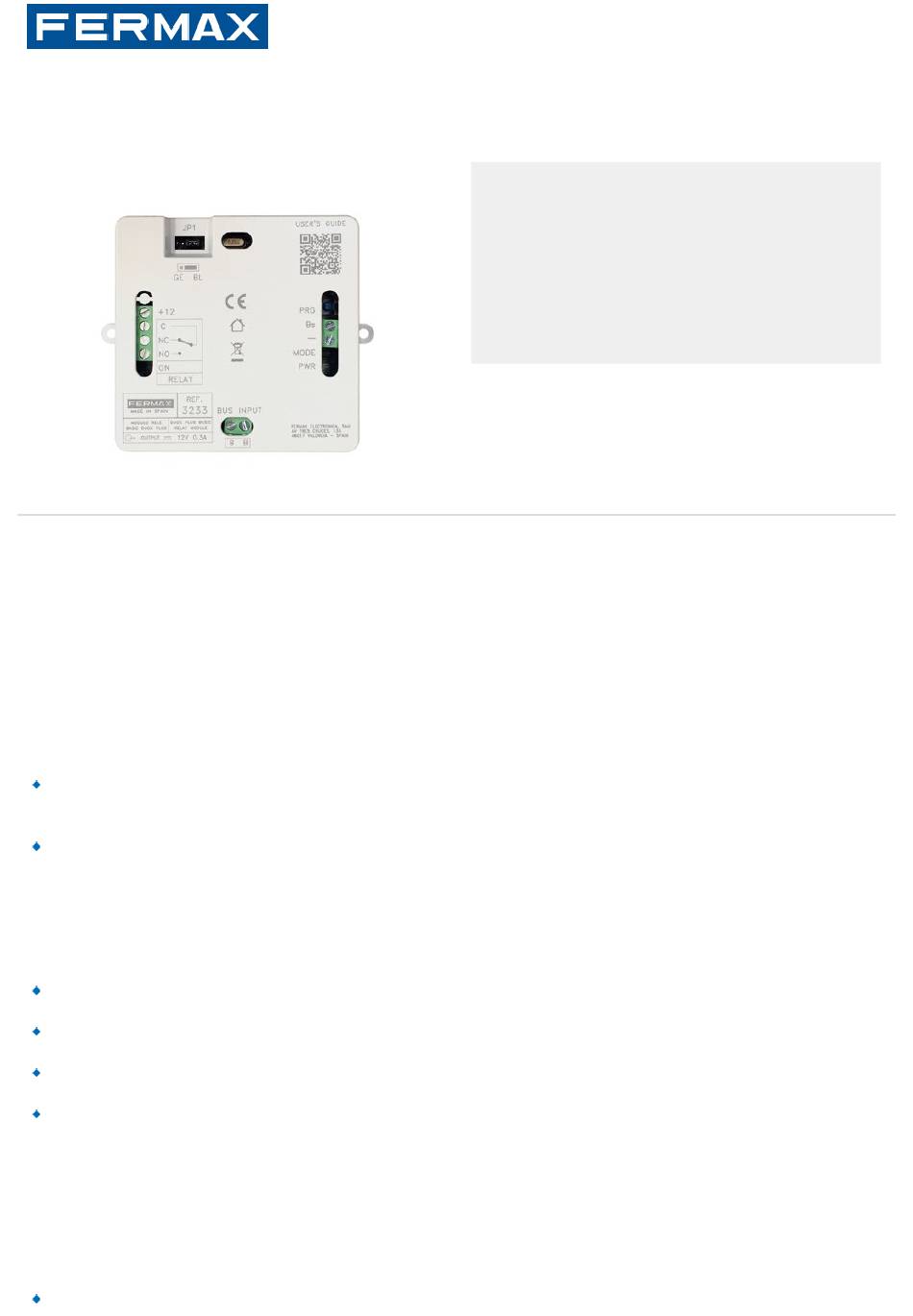

DUOX PLUS BASIC RELAY

Reference: 3233

This relay allows the most basic and common

functions to be carried out: opening a door, activating

a light, etc.

For more advanced functions not available in this

relay, FERMAX has the DUOX PLUS relay...

Page 1 This relay allows the most basic and common functions to be carried out: opening a door, activating a light, etc. For more advanced functions not available in this relay, FERMAX has the DUOX PLUS relay ref. 3267. Programming is very simple, even if the factory default parameters are already the ones desired by the installer, you will not even have to program anything.
Page 2 • C, No, NC: Potential-free relay contacts. 250 Vac / 30 Vdc - 3A. Max. • ON: LED (Green) indicating that the relay has been activated. BUS INPUT: Connection strip to the DUOX PLUS Bus. PRG BUTTON : To enter PROGRAMMING mode and define the ACTIVATION TIME.
Page 3 PARAMETERS VALUES DEFAULT VALUE GENERAL / BLOCK ENTRANCEwith jumper JP1 (GE / BL) BL (with JP1) BLOCK NO. 00-99 ACTIVATION COMMAND Lock release, F1, F2, Call from panel or guard unitF1 ACTIVATION TIME (Tact) 0-99 s. 4 s. NOTE: if the factory default parameters are already those desired by the installer, you will not have to program anything. Connect and go.
