Bogen ZX3 Install Manual

3-zone expansion module

ZX3

3-Zone Expansion Module

Description

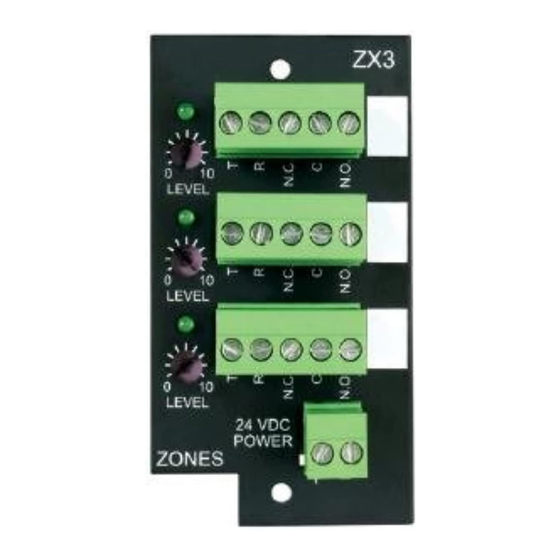

Each ZX3 module provides 3 zones of paging

capability (up to 150 self-amplified speakers) to the

UTI312 Universal Telephone Interface system.

The UTI312 module bay can accomodate up to four

ZX3 modules. Each module slot on the UTI312 is

marked on the lower left-hand corner to indicate

which zones correspond with each slot.

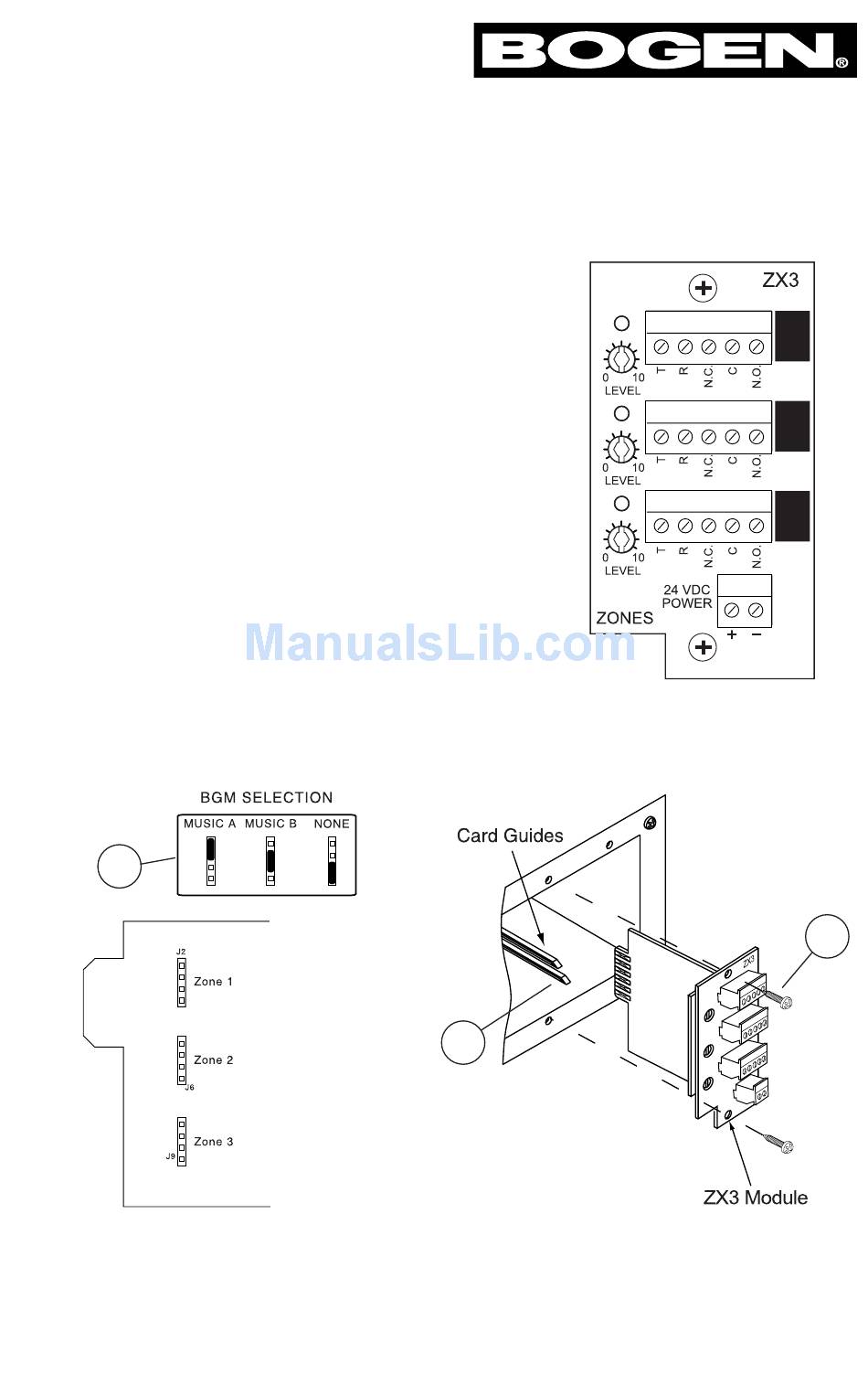

1. Before installing, select Music Bus A or B or no

music for each zone using the jumpers.

2. Slide the ZX3 module into the card guides and

push the module all the way home.

3. Install the top and bottom mounting screws.

See UTI312 manual for additional information on

ZX3 capabilities and use.

Specifications subject to change without notice.

54-2121-01A 0409
