Bogen ZPM-3 Specifications

Zone Paging Module
The Bogen ZPM3 is a telephone-compatible zone paging mod-
ule with all-call and talk back capabilities serving up to three
Description
one- or two-way paging zones.The ZPM3 can also be used in
a paging system independent of a telephone system.
The ZPM3 works with self-amplified or central-amplified pag-
ing systems. A background music source can be connected
directly to the ZPM3, or to a separate amplifier that can be
used to supply background music to all unpaged zones.
Built-in DIP switches are used to select the field-programming
mode, enable/disable the pre-announce and confirmation
tones, and set the paging mode (one-way or talk back) of each
zone.
• 3 Zone paging plus All-Call
• 3 Field-programmable paging zone groups
Features
(1-3 zones in each)
• One-way and two-way paging (talk back operation
requires TBA15 Talk Back amplifier)
• Direct connection to page ports (requires contact
closures), loop-start and ground start trunks
• Connection to an analog station line (station port) possi-
ble when used with a suitable telephone access module,
i.e., Bogen Model TAMB
• 100W total power handling capacity
• Background music input
• DIP switches select zone type (one way or talk back), talk
battery (24V/48V), and tone options
• Built-in night ringer in all zones or group of three
user-selected zones
• Shift change or emergency-call (with alert tone) in all
zones or group of three user-selected zones*
* The shift change/emergency-call feature requires additional customer-supplied equipment — master clock with a contact
closure or pre-amplified microphone with built-in or external contact closure.

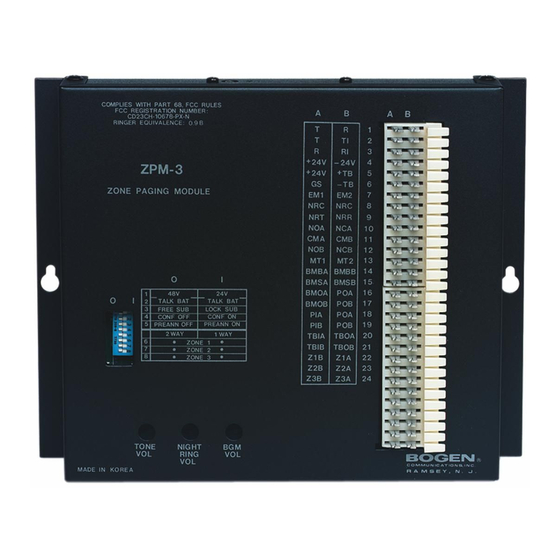

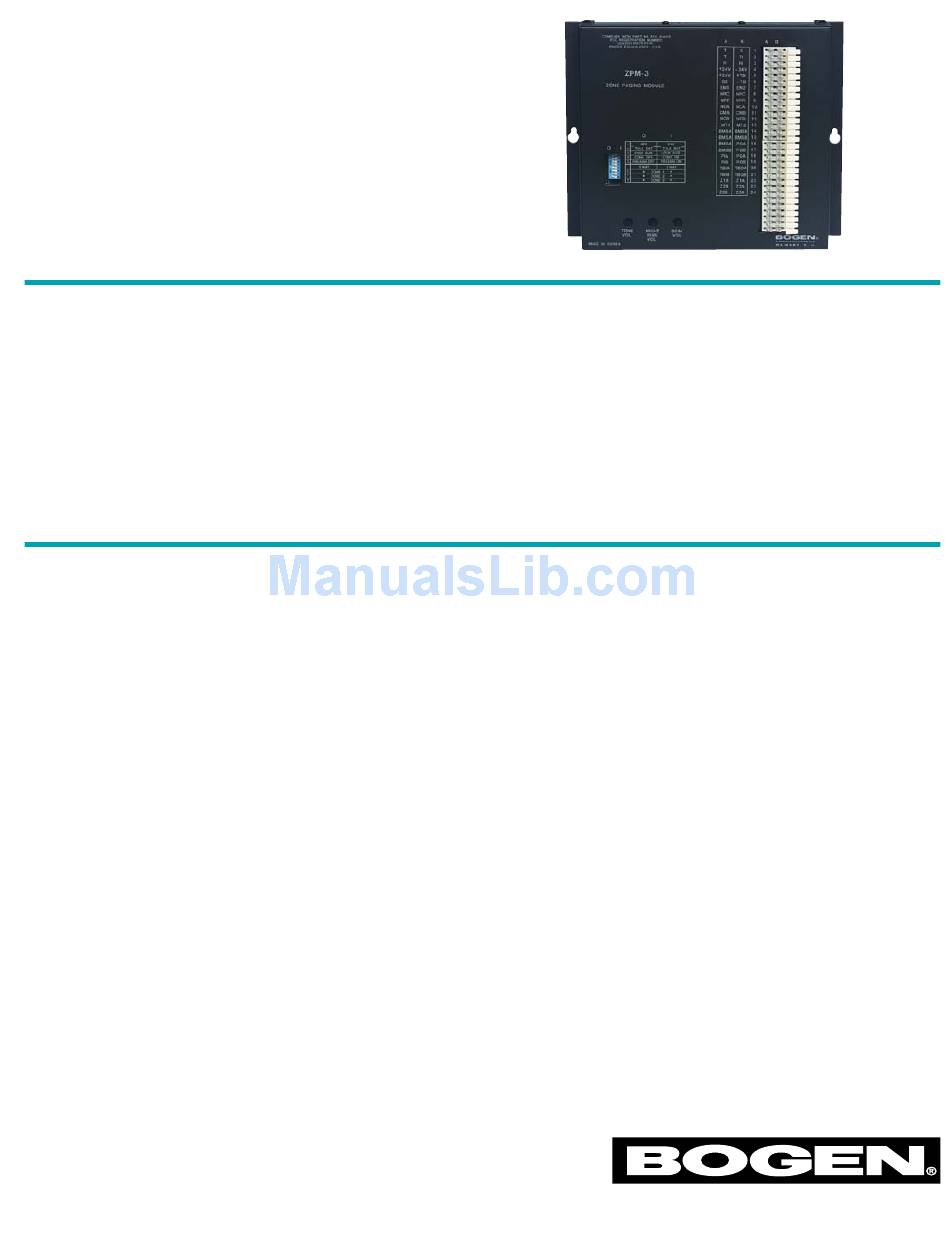

Model ZPM3
Field-programming is used to assign individual zones to the
paging zone groups, night ringer zone group, and shift
change/emergency-call zone group*. Field-programming is also
used to enable/disable the privacy beep for two-way zones,
select the shift change/emergency-call tone, and inhibit all-call
operation.
A control is included to adjust the volume of the pre-
announce, confirmation, and shift change/emergency-call
tones. Separate controls are provided to adjust the night
ringer tone and background music volume. All volume con-
trols are screwdriver-adjustable.
• Programmable All-Call inhibit and privacy beep for talk
back zones
• Built-in punch block (type 66) speeds installation
• Separate volume controls for tones, night ring, and
background music
• Works with self-amplified or central amplifier paging
systems
• Optional battery backup
• 24V power supply required — Bogen Model PRSLSI power
supply recommended
• Terminals provided for connection to an additional 48V
power supply when 48V talk battery operation required
(Bogen PRS48 power supply recommended)
• Registered under Part 68 of FCC rules
• Includes flanges with keyhole slots for wall-mounting
Specifications subject to change without notice.
