Input Modules
Models BAL2S,
BRG1R, LMM1S,
LMR1S, MAX1R,
MIC1S, MIC2S,
MIC1X, MIC2X,
SAX1R, TBL1S,
TEL1S, TNG1S
DESCRIPTION
FEATURES
BALANCED (BAL2S)

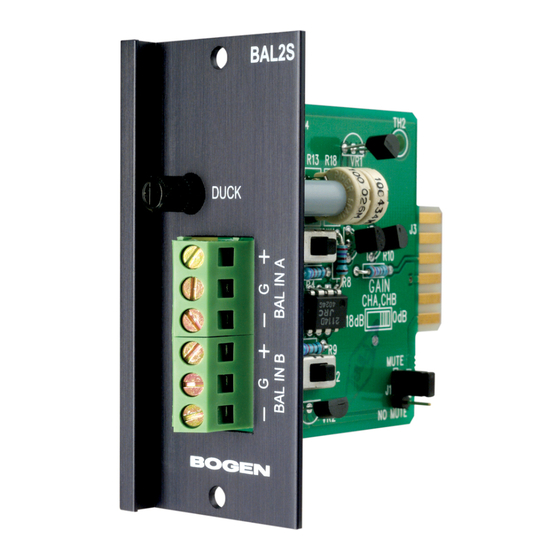

Stereo, balanced input module
1
BRIDGING (BRG1R)
Daisy chain multiple amplifiers input module
LINE/MIC (LMM1S, LMR1S)
LINE/MIC level input modules
1
1
MICROPHONES (MIC1S, MIC1X)
Transformer-balanced, low-impedance microphone
input modules
1
MICROPHONES (MIC2S, MIC2X)
Electronic-balanced, low-impedance microphone
input modules
MONO, STEREO AUX
1
(MAX1R, SAX1R)
1
Unbalanced input modules
1
TRANSFORMER-BALANCED (TBL1S)
Transformer-balanced AUX input module
TELEPHONE (TEL1S)
1
Telephone interface input module
TONE GENERATOR (TNG1S)
Multiple tone generator input module
1
1
