BRG1R
DUR
THRESH
G
A
T
E
DUCK
GAIN
LINE
IN
BUFFER
OUT
Features
•
Buffered input signal feed available
•
Gain/Trim control
•
Output signal gating
•
Gating threshold and duration adjustments
•
Variable signal ducking when muted
•
Fade back from mute level
•
4 levels of available priority
•
Can be muted from higher priority modules
•
Can mute lower priority modules

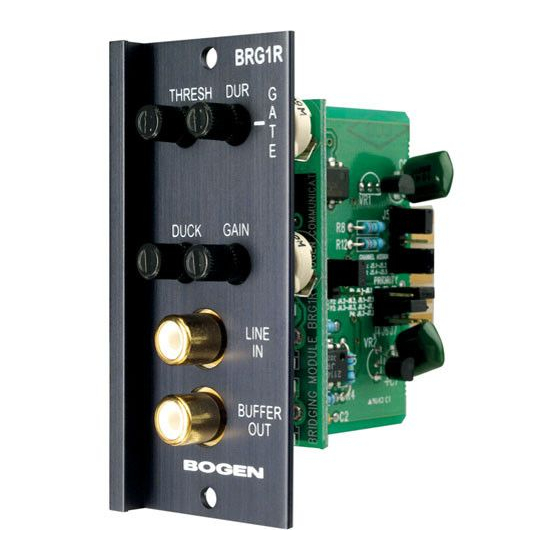

BRG1R
Amp-Bridging Input
Module
Printed in Korea.
© 2000 Bogen Communications, Inc.
54-2051-01R1
Specifications subject to change without notice.
0012
Advertisement
Table of Contents
Related Manuals for Bogen BRG1R
Summary of Contents for Bogen BRG1R
- Page 1 Fade back from mute level • 4 levels of available priority • Can be muted from higher priority modules • Can mute lower priority modules Printed in Korea. 0012 © 2000 Bogen Communications, Inc. 54-2051-01R1 Specifications subject to change without notice.
- Page 2 Controls the amount of time the output and mute signal of the module remains applied to the main unit’s buses after the input signal falls below the required minimum signal level (set by the threshold control). BRG1R THRESH Gain Provides control over the level of input signal that can be applied to the internal signal buses of the main unit.
- Page 3 Block Diagram BUFFER LINE INPUT BUFFERED OUTPUT ENABLE/ DISABLE 50 Spring Street, Ramsey, NJ 07446 U.S.A. GAIN GATING GATE CONTROL GATE 201-934-8500; Fax: 201-934-9832 www.bogen.com ASSIGNMENT DUCKING PRIORITY LEVEL BUS A BUS B MUTE HIGH MUTE MED MUTE LOW...
