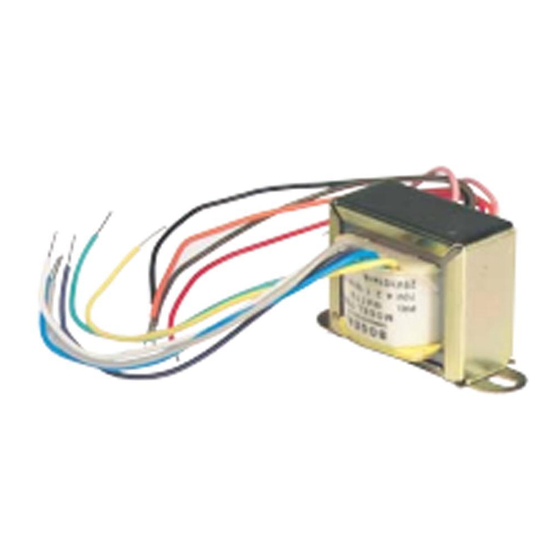

Speaker Matching Transformers
T725
T72510
These transformers allow an 8-ohm speaker to be connected to 70V or 25V amplifier outputs.
An 8-ohm secondary connects to the speaker and the multi-tap primary connects to the 70V
or 25V amplifier output.
Watts
Model
T725
4
T72510
10
Power Taps
Dimensions
4, 2, 1, 1/2, 1/4, 1/8
2-1/2" W x 1-1/4" H x 1-3/8" D
10, 5, 2-1/2, 1-1/4, 5/8
3" W x 1-1/2" H x 1-1/2" D
Shipping Weight
(16/carton)
9 lb. / carton
12 lb. / carton
