Bogen SCU250 Specifications

DESCRIPTION

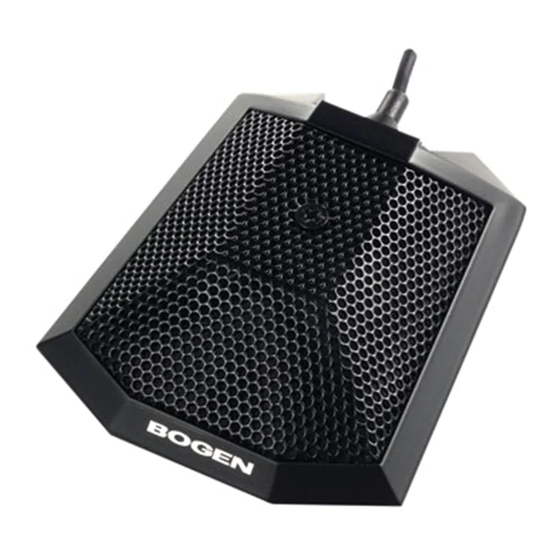

The SCU250 is an unobtrusive, uni-directional, surface-mount microphone
ideal for meeting rooms, conferences, and stage productions where minimum
visibility is ideal. The SCU250 provides full, rich reproduction of voice and
music and is well-suited in capturing the sound source and the immediate sur-
roundings. It has a low sensitivity to stage vibration and thumping noise and
has excellent user sound isolation feedback rejection.The SCU250 has a low-
impedance balanced output.The SCU250 features a heavy copper case with a
non-glare matte black finish, mounting keyways on bottom for hanging or for
attachment to the mounting surface, and a cardioid pickup pattern.The micro-
phone requires an external 9V - 52V DC phantom power supply and is ter-
minated by a standard male XLR with a built-in pre-amplifier.

SPECIFICATIONS

MIC Type:
Element:
Polar Pattern:
Impedance:
Frequency Response:
Sensitivity*:
Max SPL @ 1% THD:
S/N Ratio:
Cable:
Dimensions:
Product Weight:
Material:
Finish:
* (0dB=1V/microbar 1,000 Hz indicated by open circuit)
FREQUENCY RESPONSE GRAPH
dB Frequency Response, Magn dB re 1 V/microbar
-40
-50
-60
-70
-80
-90
-100
20 200
o
= 0 on axis
o
= 180 off axis
Boundary
Back Electret condenser
Uni-directional
250-ohm
20 Hz to 18 kHz
-58 dB +/- 3 dB
>130 dB
>65 dB
26 ft.
2 / " W x / " H x 3 / " D
3 3
1
4 4 4
1 lb.
Zinc die cast
Matte black finish
1 2 20
K K K
270˚
Hz
Model SCU250
Professional Boundary
POLAR GRAPH
0˚
330˚ 30˚
300˚ 60˚
90˚
240˚ 120˚
150˚
210˚
180˚
Microphone
