Features
•
4-band equalizer
•
2 full parametric bands
•
Frequency control
•
'Q' bandwidth control
•
Gain control
•
Bass and Treble control
•
Bypass switch
•
Unbalanced input
•
Gradual fade back from mute

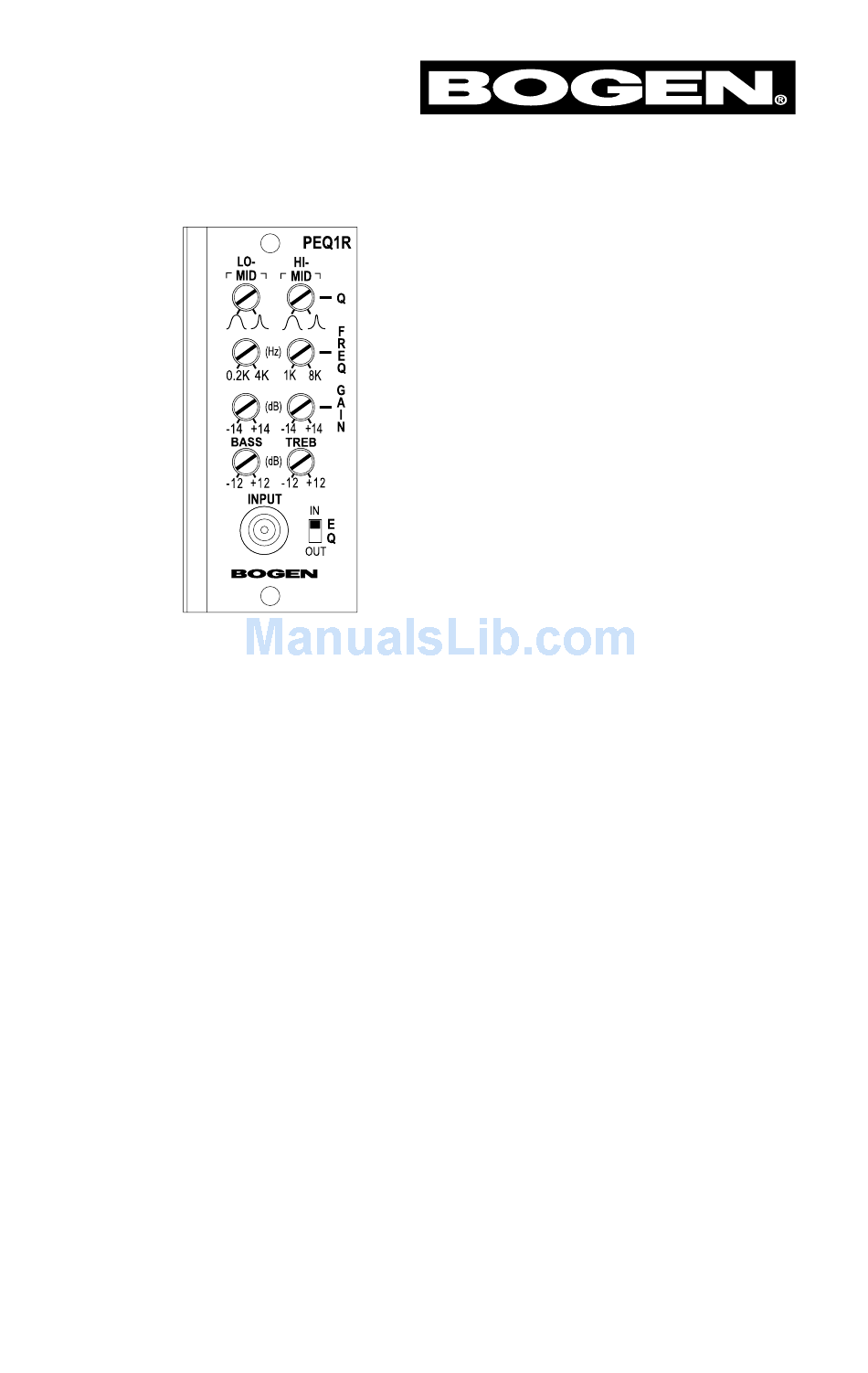

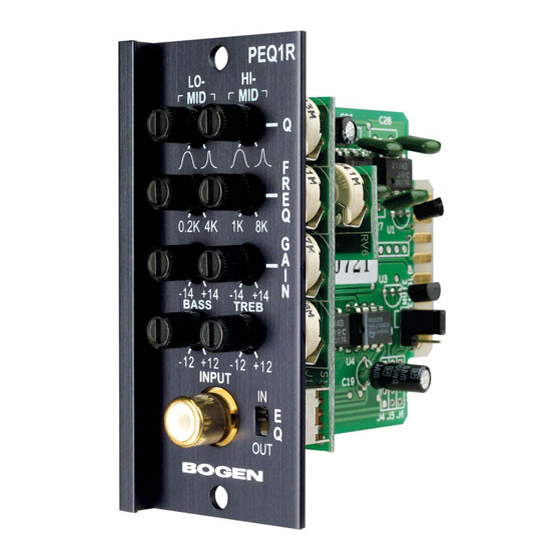

PEQ1R
Parametric Equalizer
Output Module
Printed in Korea.
© 2001 Bogen Communications, Inc.
54-2069-01R2
Specifications subject to change without notice.
0112
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Bogen PEQ1R
Summary of Contents for Bogen PEQ1R
- Page 1 • ‘Q’ bandwidth control • Gain control • Bass and Treble control • Bypass switch • Unbalanced input • Gradual fade back from mute Printed in Korea. 0112 © 2001 Bogen Communications, Inc. 54-2069-01R2 Specifications subject to change without notice.
- Page 2 Module Features The PEQ1R is a 4-band equalizer that provides 2 bands of para- metric equalization control with adjustments for filter bandwidth (‘Q’), filter center frequency, and cut or boost level.
- Page 3 Block Diagram 50 Spring Street, Ramsey, NJ 07446, U.S.A. Tel. 201-934-8500; Fax: 201-934-9832; www.bogen.com...
