Bogen ANS1R Specifications

Signal-Processing
Output Modules
ANS1R, CMP1R, and PEQ1R
Description
Bogen's plug-in signal-processing output modules add a new level of convenience and flexibility to the Power Vector amplifier line in
that they automatically insert themselves into the mix bus signal path leading to the power amplifier stage.
All Bogen output modules include an unbalanced input that is controlled by the amplifier's input control so that the number of inputs
is not forfeited when using an output module.
Features
AMBIENT NOISE SENSOR
(ANS1R)
The ANS1R module is an ambient noise
sensor module that adjusts the level of a
page announcement and/or background
music in an area of a building where ambi-
ent noise levels are continuously changing.
• Maximum gain control
• Ramp speed control
• Activity threshold control
• Ambient mic input threshold control
• Aux input can bypass gain control
function
• Aux level input control
• Stereo unbalanced Aux inputs (electroni-
cally summed mono) with low priority
• Barrier strip connections for sensor
microphone & remote defeat
• Gradual fade back from mute for Aux IN

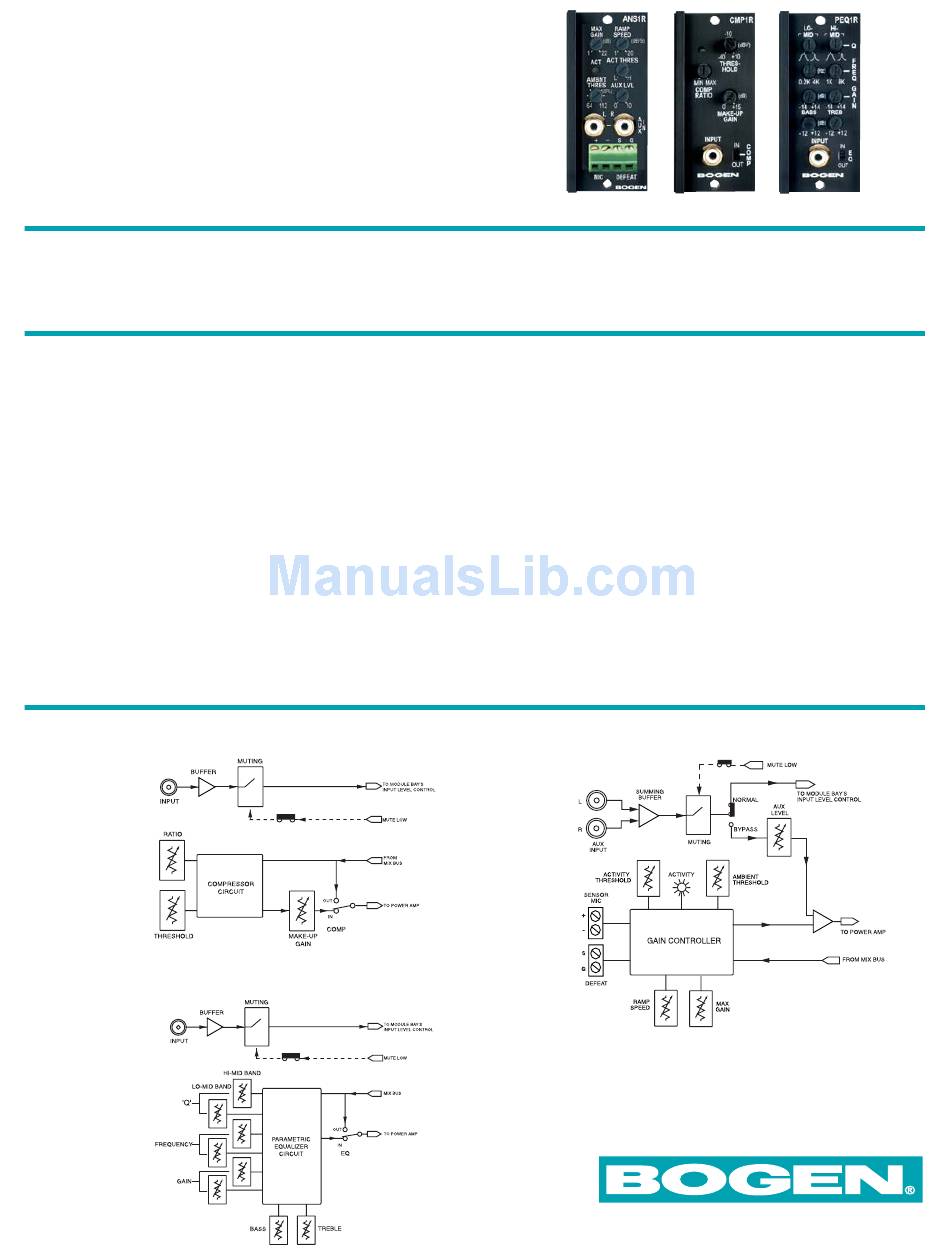

Block
CMP1R Block Diagaram
Diagrams
PEQ1R Block Diagaram
Models
COMPRESSOR/LIMITER
(CMP1R)
The CMP1R module is a compressor/lim-
iter module that can be used as a compres-
sor to minimize the differences in level of all
of the inputs on the mix bus, or can be used
as a limiter to keep overall output at a
desired level.
• Compressor ratio control
• Threshold control
• Make-up gain control
• Bypass switch
• Unbalanced input with low priority
• Gradual fade back from mute for unbal-
anced input
PARAMETRIC EQUALIZER
(PEQ1R)
The PEQ1R is a 4-band equalizer that pro-
vides 2 mid bands of parametric equaliza-
tion control with adjustments for filter
bandwidth ('Q'), filter center frequency, cut
or boost level, as well as cut or boost for
bass and treble.
• 4-band equalizer
• 2 full parametric bands
• Center frequency control
• 'Q' bandwidth control
• Gain control
• Bass and Treble control
• Bypass switch
• Unbalanced input with low priority
• Gradual fade back from mute for unbal-
anced input
ANS1R Block Diagaram
