- Page 1 Fronius AquiSuite Install Guide V01 2010...
- Page 2 Configuring Fronius inverters and USB Smart Converter with Obvius AquiSuite Fronius IG Plus and CL inverters can be attached to an Obvius AquiSuite using the Fronius USB Converter. These instructions show how to install and connect the Fronius hardware, and configure the inverter.
- Page 3 • Install Com Card in each inverter. • Install terminal plug in “in” port on Com Card farthest from Aquisuite. • Daisy-chain remaining inverters with Cat-5 cable and RJ 45 plugs wired straight through from “out” to “in” on Com Cards. Be sure to test! •...
- Page 4 Configuring Fronius with Obvius AquiSuite Configuring Fronius Inverter ID: • After system is turned on, press “enter” and use right or left arrow keys (scroll) on the display to scroll to “setup” on far right and press “enter”. • Scroll to “IG NR” and press enter.
- Page 5 Configuring Fronius with Obvius AquiSuite Configuring Fronius Inverter mode and baud rate: • After system is turned on, press “enter” and use right or left arrow keys (scroll) on the display to scroll to “setup” on far right and press “enter”.

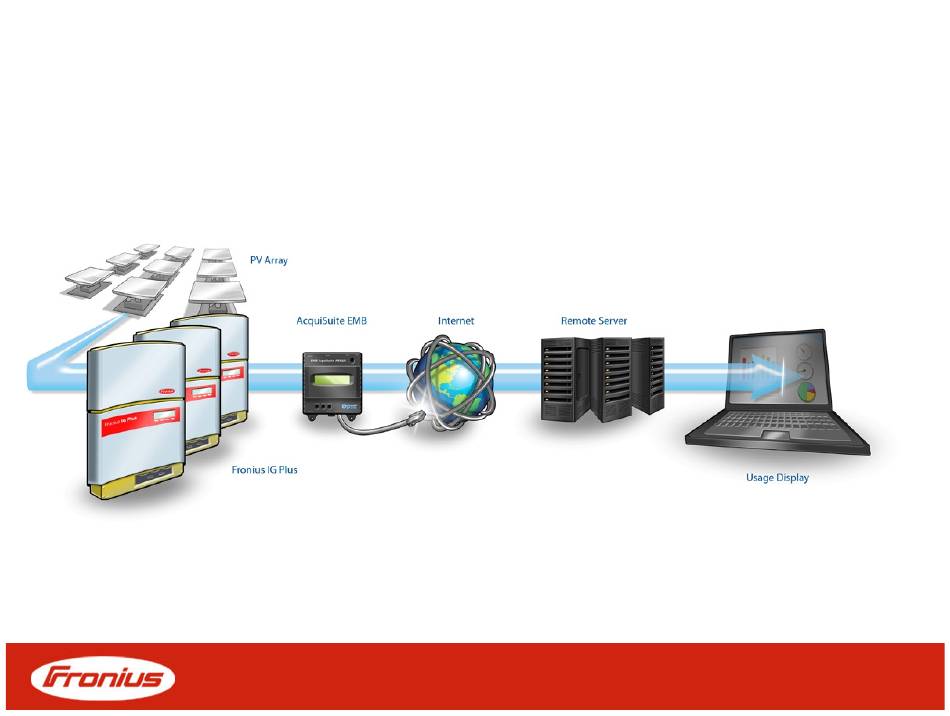

- Page 6 Fronius converter with Obvius Aquisuite Internet V01 2010...
- Page 7 Fronius IG Plus or CL (Not for use with Fronius IG) 1 FRONIUS Converter USB 4,240,119 1 Fronius Com Card for each inverter Standard Cat-5 network cable wired straight through between each device- for multiple inverters in close proximity, consider buying prefab cables!
- Page 8 Fronius Converter Technical data USB Part # 4,240,119 Degree of IP 20 protection Temperature 0°C to +40°C range Humidity 0 to 95% non-condensing 1x RJ45 plug (integrated termination Plug plug) 1x USB plug (can be inserted directly into the PC)
