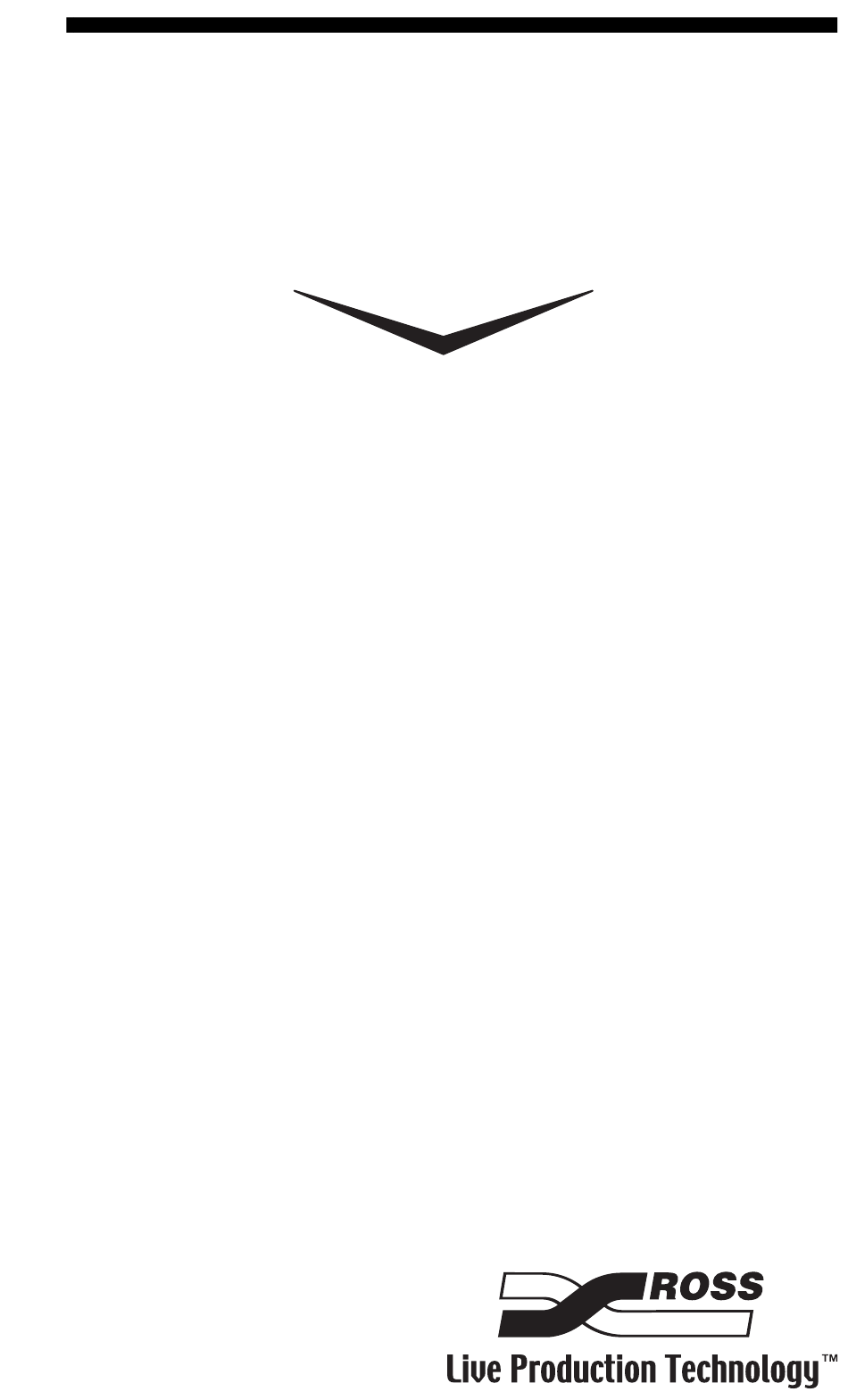

- Page 1 Ross Video Limited Panel Row Addition Installation Guide...
- Page 2 Notice The material in this guide is furnished for informational use only. It is subject to change without notice and should not be construed as commitment by Ross Video Limited. Ross Video Limited assumes no responsibility or liability for errors or inaccuracies that may appear in this guide.
- Page 3 To avoid the potential release of those substances into the environment and to diminish the need for the extraction of natural resources, Ross Video encourages you to use the appropriate take-back systems. These systems will reuse or recycle most of the materials from your end-of-life equipment in an environmentally friendly and health conscious manner.
-
Page 4: Package Contents
Package Contents The contents of a Panel Row Addition upgrade kit depends on the model of Vision control panel you have. If any items are missing, or damaged, contact Ross Video Technical Support. Part# Item V-124A Keyer Module (4-Keyer) V-128A... - Page 5 Panel Row Blanks Removal To install the new panel row, you must first remove the blank module plates from the crosspoint buses, as well as from the module slots. The blank module plate covering the crosspoint buses consists of the Crosspoint Plate, and Crosspoint Plate Retainer.
- Page 6 Identify the 3 blank module plates to be removed (Figure 2). These are the first three module slots in the same row as the crosspoint plates. Front of Control Panel Memory Transition Keyers Module Module Module Figure 2 Blank Module Plates to Remove — Vision 2X Remove the Retaining Bolts located at each corner of each blank module plate and keep them in a safe place.
- Page 7 Panel Row Module Installation The new panel row consists of a Memory module, Transition module, Keyers module, and a series of Crosspoint modules. The number of Crosspoint modules depends on the model of Vision control panel you have. Memory, Transition, and Keyers Module Installation Use the following procedure to install the Memory, Transition and Keyers modules: Locate the Memory, Transition, and Keyers module slots in the...
- Page 8 Install the Retaining Bolts located at each corner of the module to a maximum torque of 5 in-lbs (6 cm-kg). A ¼ inch hex driver or wrench is required. Slide the Keyers module into the third module opening. Install the Retaining Bolts located at each corner of the module to a maximum torque of 5 in-lbs (6 cm-kg).
- Page 9 Retaining Screw Holes Figure 5 Crosspoint Module Alignment Using the screws obtained from removing the Crosspoint Plate Retainer, secure the Crosspoint module into the slot. Repeat Step (2.) and Step (3.) until all Crosspoint modules are installed. This completes the procedure for installing the Crosspoint modules. Next, you must install the Module Control Link cables and the power cables to the modules.
- Page 10 Panel Row Module Cabling To install the cables for the modules, you must first connect the Module Power cables, and Module Control Link cables. Memory, Transition, and Keyers Module Cabling Use the following procedure to cable the Memory, Transition and Keyers modules: Connect and secure the existing Module Control Link Cable to the PREV port on the first module...
- Page 11 Front of Control Panel Power Cable Figure 7 Module Power Cable — Vision 2X Connect and secure the Module Power Cable to the remaining modules. This completes the procedure for cabling the Memory, Transition and Keyers modules. Next, you must install the Module Control Link cables and the power cables to the Crosspoint modules.
- Page 12 Connect and secure one of the Module Control Link Cable to the NEXT port on the second module Connect and secure the other end of the Module Control Link Cable to the PREV port on the third module Connect and secure one of the Module Control Link Cables to the NEXT port on the third module Connect and secure the other end of the Module Control Link Cable to the PREV port on the fourth module...
- Page 13 Mnemonic Blank Installation The Mnemonic Blank Plate covers the slot that the mnemonics option installs into. If you have purchased the mnemonics option for this panel row, refer to the Mnemonics Installation Guide that came with your option for instructions on how to install the mnemonics.
- Page 14 Panel Row Setup With the new modules installed and cabled, the Vision switcher must be set up to properly communicate with the new modules in the row. Refer to your Vision Engineering Manual for information on upgrading your Panel Module Controllers (PMCs) and assigning the modules to a panel row. Important —...
- Page 15 Notes Panel Row Setup • 15...
- Page 16 613 • 349 • 0006 613 • 652 • 4425 General Information solutions@rossvideo.com E-MAIL Technical Support techsupport@rossvideo.com 8 John Street, Ross Video Limited Iroquois, Ontario, Canada K0E 1K0 POSTAL SERVICE P.O. Box 880, Ross Video Incorporated Ogdensburg, New York, USA...
