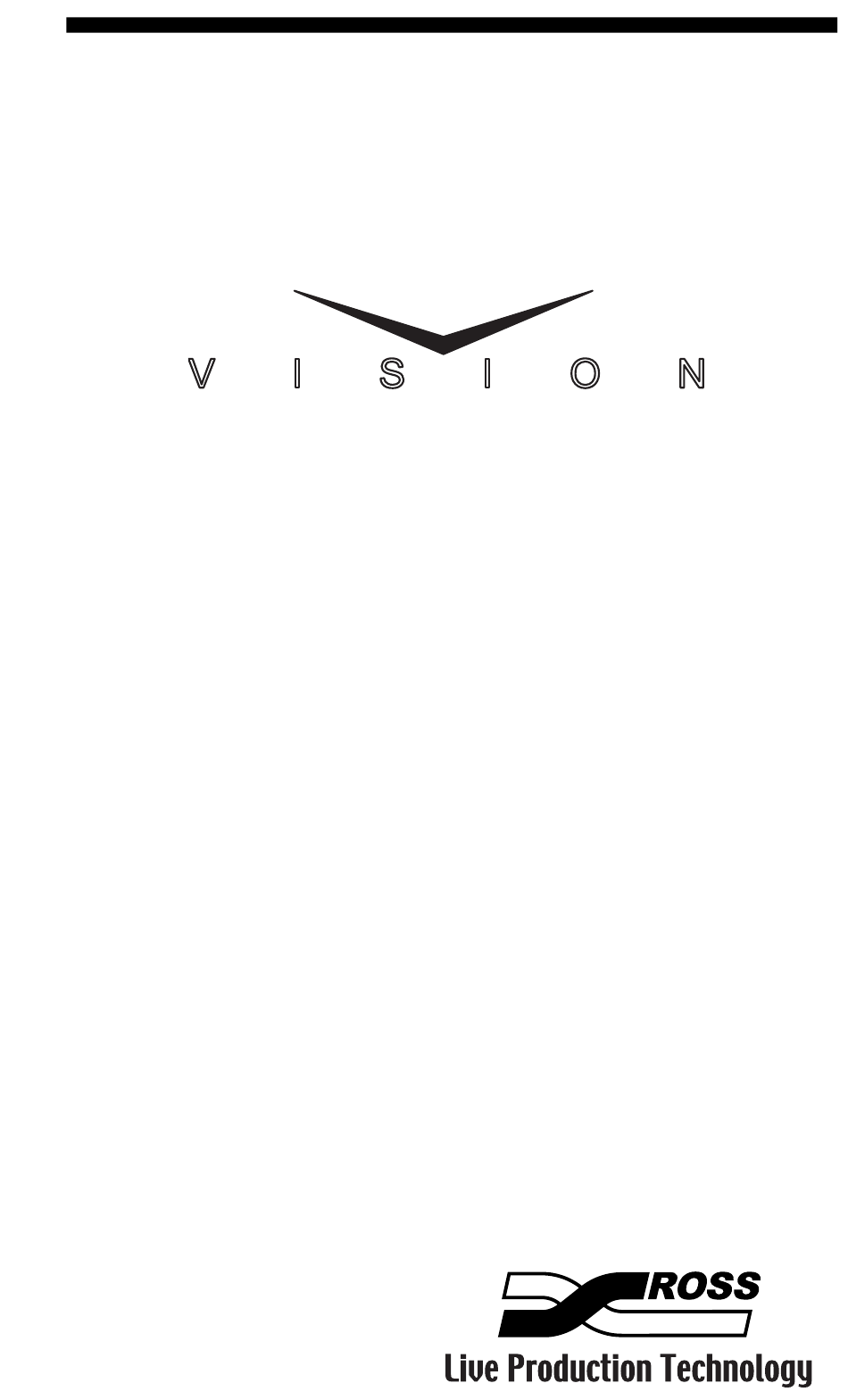

- Page 1 Ross Video Limited Crosspoint Module Installation Guide...
- Page 2 The material in this document is furnished for informational use only. It is subject to change without notice and should not be construed as commitment by Ross Video Limited. Ross Video Limited assumes no responsibility or liability for errors or inaccuracies that may appear in this document.
- Page 3 To avoid the potential release of those substances into the environment and to diminish the need for the extraction of natural resources, Ross Video encourages you to use the appropriate take-back systems. These systems will reuse or recycle most of the materials from your end-of-life equipment in an environmentally friendly and health conscious manner.
-
Page 4: Package Contents
Package Contents The contents of a Crosspoint Module kit is listed below. If any items are missing, or damaged, contact Ross Video Technical Support. Part# Item V-110M Crosspoint Module 727-024R Module Control Link Cable (Black, CAT5e, 2’ long) 727-025R Module Control Link Cable (Black, CAT5e, 1’ long) -
Page 5: Removing A Module
Removing a Module To remove an existing module, you must first disconnect the communications and power cables from the existing module, and then remove the module. If you are removing a blank module plate, there are no communications or power cables to disconnect. - Page 6 Installing a Crosspoint Module To install the Crosspoint module, you must remove the plate from the Crosspoint module, install the plate into the module slot in the control panel, and then install the Crosspoint module onto the plate. 1. Remove the five (5) Retaining Screws securing the plate to the Crosspoint module and remove the plate.
- Page 7 Cabling a Crosspoint Module If you are installing the Crosspoint module into a slot on the right-hand side of the control panel, the Module Power Cable must be twisted to properly connect to the Power Connector on the Crosspoint module. In this case, you may want to replace the Module Power Cable with the longer cable provided (4800CR-361).
- Page 8 Upgrading a PMC The Panel Module Controllers (PMCs) may need to be upgraded if you perform a software upgrade or replace a module. If PMCs need to be upgraded, the message PMCs need to be upgraded; please go to Panel Modules menu is displayed on the Main Menu.
- Page 9 Mapping a Single Module If you are mapping a single modules to a panel row, you can use select the link and node that you installed the module on and assign it to a panel row. 1. Press HOME > More > Setup > More > Panel Modules . A warning is displayed, asking you if you want to enter the menu.
- Page 10 Figure 8: Panel Modules Menu - Custctrl & GPI Group 10 • Mapping a Single Module...
- Page 11 Notes:...
- Page 12 613 • 349 • 0006 613 • 652 • 4425 General Information solutions@rossvideo.com E-MAIL Technical Support techsupport@rossvideo.com 8 John Street, Ross Video Limited Iroquois, Ontario, Canada K0E 1K0 POSTAL SERVICE P.O. Box 880, Ross Video Incorporated Ogdensburg, New York, USA...
