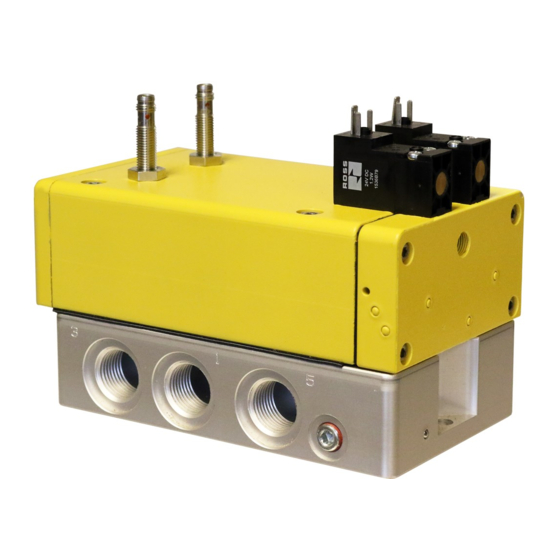

Ross RSe Series Operating Instructions Manual

Safety exhaust (dump) and safe cylinder return control reliable double valves
Hide thumbs Also See for RSe Series:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
RC-RSe 03.2019
EN
RSe Series
Safety Exhaust (Dump) and
Safe Cylinder Return
Control Reliable Double Valves
Operating Instructions
Declaration of CE Conformity and Certifications available for download at www.rosscontrols.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSe Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ross RSe Series

Summary of Contents for Ross RSe Series

  • Page 1 RC-RSe 03.2019 RSe Series Safety Exhaust (Dump) and Safe Cylinder Return Control Reliable Double Valves Operating Instructions Declaration of CE Conformity and Certifications available for download at www.rosscontrols.com...
  • Page 2 RSe Series Operating Instructions PRODUCT KEY IDENTIFICATION Dimensional Drawing 3-2 Valve Series Revision Automatic Sensor External Reset Feedback Level Monitoring Type/Function Ø G Base Port Size Voltage 3/2-Way Sensor Inlet Outlet Thread 5/2-Way 24 volts DC EPS 1/8 NPT Sensor Output PNP...
  • Page 3 RSe Series Operating Instructions ROSS EUROPA GmbH • Robert-Bosch-Strasse 2 • D-63225 Langen Telefon: (06103) 7597- 0 • Fax: (06103) 74694 • e-mail: info@rosseuropa.com • www.rosseuropa.com Sitz: Langen • AG: Langen, B412 • Geschäftsführer: Ralf W. Dinkel EU declaration of conformity (Original Version) Product: ROSS®...

  • Page 4: Intended Use

    B valve element sticks within a very small, specific range of its The 5/2 RSe Series valve is designed to control the direction of air flow into and out of a travel, there is a possibility of a condition where pressure may not be present in port 2.
  • Page 5 • Operating at pressures below minimum operating pressure or above maximum operating pressure. f In case of technical problems or a required repair, please contact your local ROSS ® representative. If used properly, the RSe valves will not require maintenance.

  • Page 6: Technical Specifications

    See section 5, Service, Repair, and Maintenance. 11. Disposal Failure of the valve to shift synchronously leads to a fault in the RSe Series valve. This could happen for a variety of reasons, such as: Dispose of the valve in accordance with the applicable statutory regulations in your •...
  • Page 7 RSe Series Operating Instructions www.rosscontrols.com...
  • Page 8 ROSS and provided such product is returned to ROSS freight prepaid and upon examination by ROSS is found to be defective.
