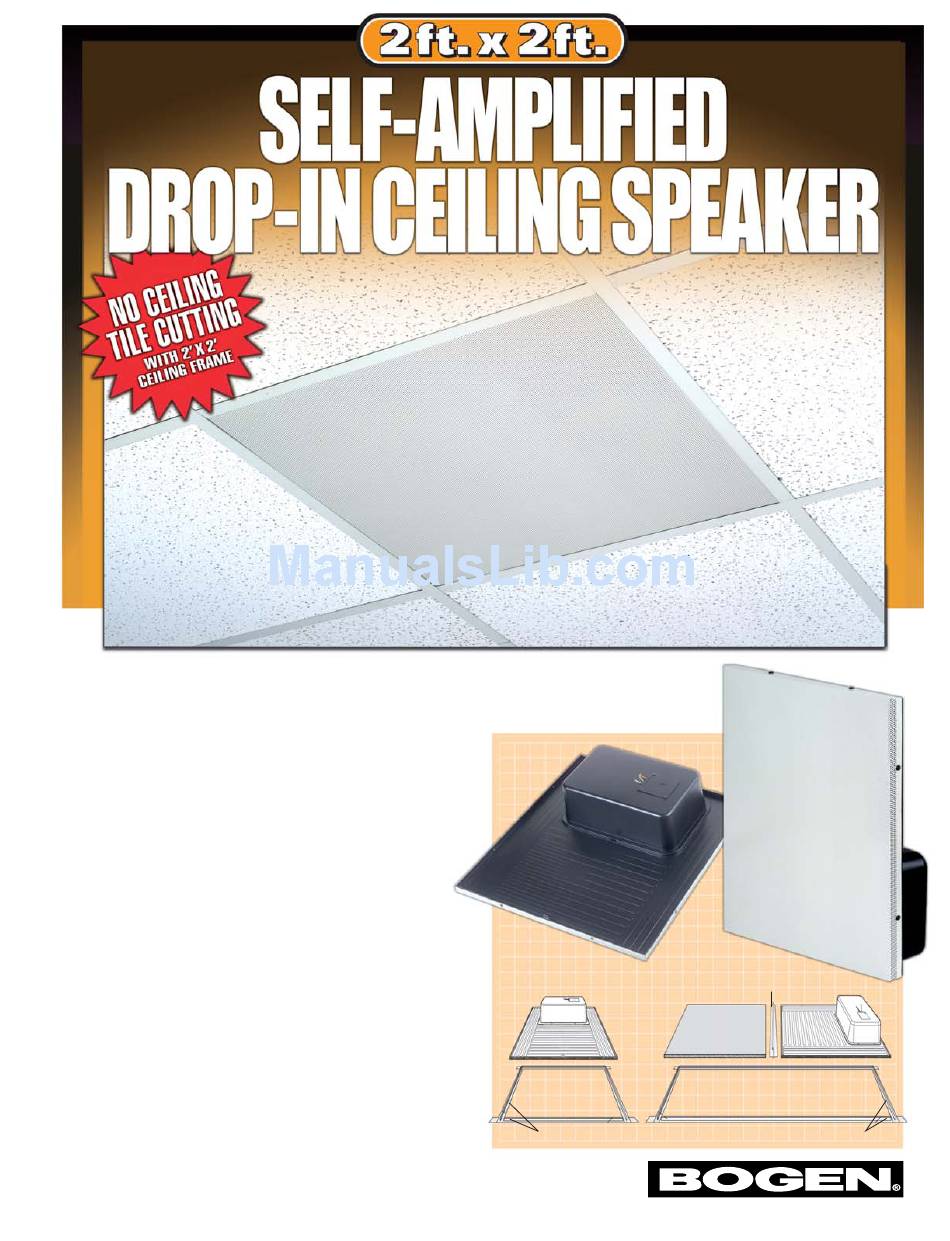

Bogen ACD2X2 Specifications

Self-Amplified Drop-In Ceiling Speaker
ACD2X2, ACD2X2U
with Back Can and Recessed Volume Control
Bogen's ACD2X2 Drop-In Ceiling Speaker is a full-range
speaker that allows for fast and easy installation, which
saves installation time, effort, and cost.
The ACD2X2 is a 2' x 2' speaker that fits perfectly into
place in 2' x 2' ceiling grids – without needing to cut
ceiling tiles or requiring the use of tile support rails. The
ACD2X2 can also be easily installed in 2' x 4' ceiling grids
– just make one cut to the ceiling tile, position the support
rail (included), and drop the speaker into place.
• Finely perforated grille over the entire front of speaker
• Fully enclosed, industrial grade steel construction
• Enclosed Back Can
• Self-contained 1-watt amplifier
• 8'' main cone with secondary high-frequency cone
• Available in off-white and bright white ("U" versions)
grille finish
• Recessed Volume Control (front-mounted)
• Complies with Requirements of UL-2043
• Support Rail Crossbar (included)
CROSSBAR INCLUDED
(2 ft. X 4 ft. CEILING GRID ONLY)
CEILING TILE
ACD2X2
(CUT IN HALF, OR NO MORE
THAN 23-
2 ft. X 2 ft.
TILE SPACE
CEILING GRID
SUPPORT RAIL
ACD2X2
3 ⁄ ")
4
2 ft. X 4 ft.
TILE SPACE
CEILING GRID
