Suspension Mounting - ETI Solid State Lighting 53508101 Use And Care Manual

12a
12b
A

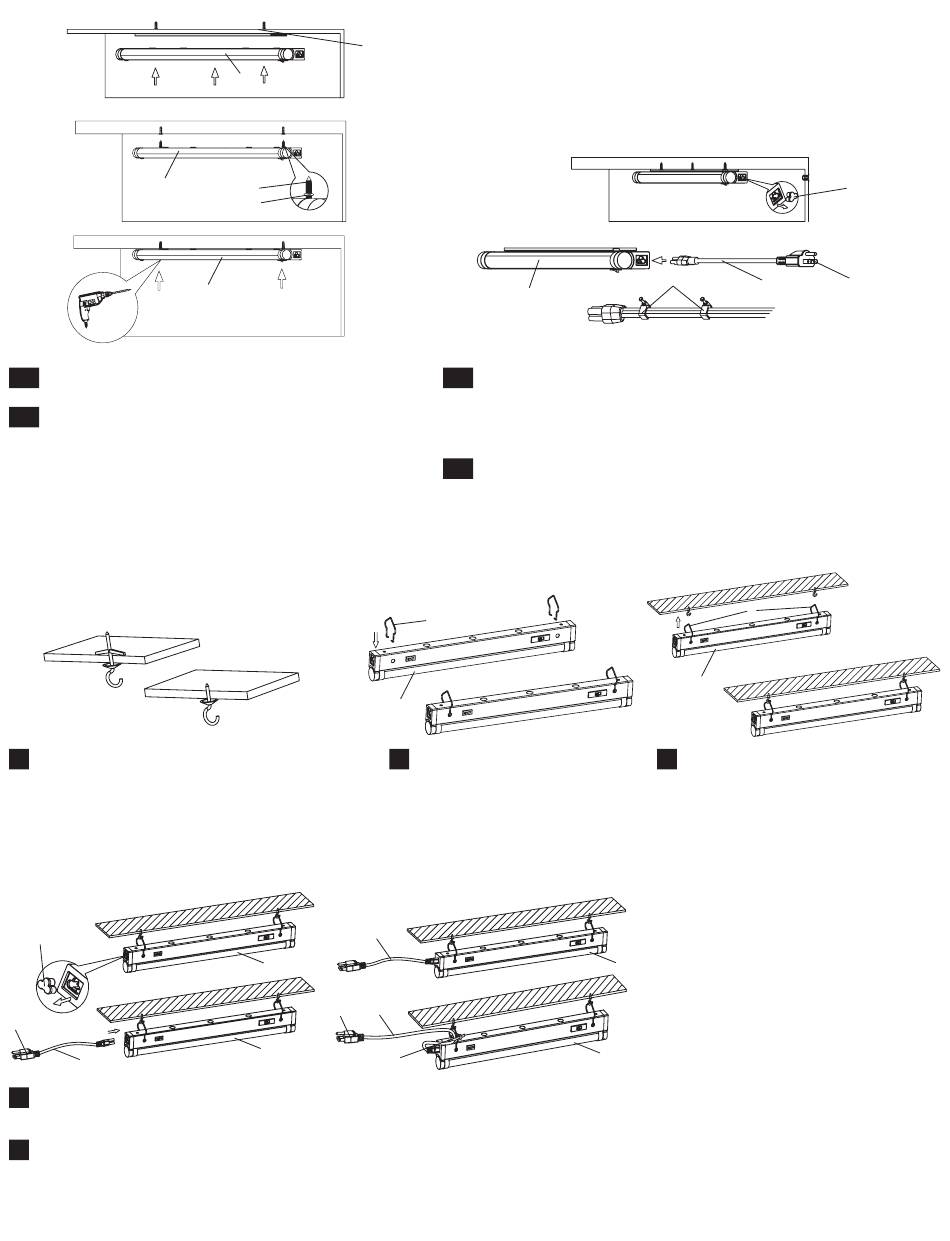

If installing using the MagnaMount™ mounting plate, place the fixture
12a
on the MagnaMount™ mounting plate and adjust the alignment as
needed.
If installing without the MagnaMount™ mounting plate, prepare the
12b
fixture for installation by pushing a long mounting screw through one of
the screw holes on the fixture and then through an O-Ring. Repeat with
the remaining long mounting screw.
Screw the fixture to the underside of the cabinet or to the drywall and
make sure it is secure.

susPensIon MountIng

Installing contractor is responsible for determining best installation method for desired location.
If mounting to drywall: Drill two 1/4in. holes in the ceiling. Fasten
5c
the toggle bolt (not included) into the butterfly nut (not included)
before inserting the flaps of the toggle bolt into the ceiling.
Tighten the toggle bolt and make sure the toggle bolt is secure
If mounting to wood: Drill two 1/16in. pilot holes in the ceiling.
Fasten the combo wood-machine (not included) end into the hook
screw (not included). Tighten the hook screw and make sure it is
secure.
NOTE: Distance between 2 holes is 14.75in.
End Cap
H
I
Remove the end cap on the "Power In" end of the fixture and connect the linking cable to the fixture and attach the
8c
plug connector to the linking cable. Use a cable tie (not included) to affix the linking cable to the V Clips. Plug the
plug connector into an outlet.
NOTE: Both ends of the linking cable and plug adapter must be plugged in before restoring power.
Restore power at the electrical panel.
9c
Turn on the light switch to activate the fixture.
G
A
E
C
A
I
A
I
H
A
Cable Tie
A
If direct wiring the fixture, skip this step.
13a
If using the plug connector, remove the end cap on the "Power In" end of the fixture and
connect the linking cable to the fixture and attach the plug connector to the linking cable.
Use wire clips to affix the linking cable to the underside of the cabinet. Plug the plug
connector into an outlet.
NOTE: Both ends of the linking cable and plug connector must be plugged in before
restoring power.
Restore power at the electrical panel.
14a
Turn on the light switch to activate the fixture.
L
A
Insert the V clips into the holes at each
6c
end of the fixture.
D I
L
A
Secure the V clips to the hooks installed in the
7c
ceiling.
A
A
End Cap
H
