ETI Solid State Lighting SL-7IN-3500LM-8-40K-SV-N Use And Care Manual

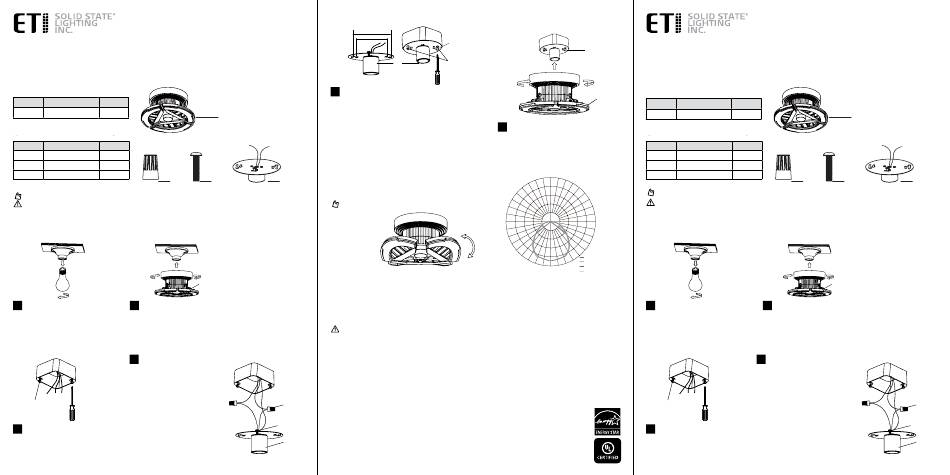

USe aNd Care GUIde
Led SPIN LIGht ® WIth 3 adjUStabLe headS
PacKage contents
Part description Quantity
Fixture Body 1
A
Hardware Included
Part description Quantity
Wire Connector 2
AA
Mounting Screw 2
BB
SpeedMount™ Socket 1
CC
AA
NOte: Keep your receipt and these instructions for proof of purchase.
WarNING: RISK OF ELECTRIC SHOCK. Ensure the electricity to the wires you are working on is shut off. Either remove the
fuse or turn off the circuit breaker before removing an existing light fixture or installing the new one.
If you are unfamiliar with electrical installations, we recommend you contact a qualified electrician to do the installation.
InstallatIon to a Keyless laMP Holder
Shut off power at the electrical panel Screw the threaded base on the fixture
1 2
before beginning the installation. body (A) clockwise into the keyless lamp
Remove existing bulb. holder (not included).
InstallatIon to an electrIcal outlet Box
Connect the white wire from the
2
SpeedMount™ socket (CC) to the
white wire from the electrical outlet
box. Connect the black wire from the
SpeedMount™ socket (CC) to the black
wire from the electrical outlet box.
Cover the wire connections using the
BB
wire connectors (AA). Wrap the wire
connections with electrical tape for
a more secure connection. Wrap the
Attach the mounting screws (BB)
1 ground wire from the electrical outlet
directly to the electrical outlet box.
box around the ground screw on the
SpeedMount™ socket (CC) mounting
bracket. Position the wires back inside
the electrical outlet box.
InstallatIon to an electrIcal outlet Box (contInued)
Model # 566011420
Part # SL-7IN-3500LM-8-40K-SV-N
3.54 in.
2.75 in.
Select the mounting holes on the SpeedMount™ socket
3
(CC) mounting bracket according to the size of the electrical
outlet box. Position the SpeedMount™ socket (CC) over the
electrical outlet box, allowing the heads of the mounting
A
screws (BB) to come through the large ends of the keyholes.
Turn the SpeedMount™ socket (CC) clockwise until the heads
of the mounting screws (BB) slide into the narrow ends of
the keyholes. Tighten the mounting screws (BB) to secure the
SpeedMount™ socket (CC) to the electrical outlet box.
adjustIng tHe lIgHt Heads
This LED light fixture has three light heads that can each be
BB CC
adjusted to direct the light where desired. Move each light head
into the desired position with your hand, from 0° with the head
pointing straight down to 90°.
NOte: The factory default setting for the adjustable heads is
0° beam angle, with the three
heads positioned together
pointing straight down.
A
care and cleanIng
CaUtION: Before attempting to clean the luminaire/light fixture, disconnect the power to the fixture by turning the breaker
off or removing the fuse from the fuse box. Clean with a soft, dry cloth. Do not use cleaners with chemicals, solvents, or harsh
abrasives. Do not use liquid cleaner on the LEDs, LED driver, or wiring.
WarNING: Carefully read and understand the information given in this manual before beginning the assembly and installation.
Failure to do so could lead to electric shock, fire, or other injuries which could be hazardous or even fatal. • Ensure the electricity to
the wires you are working on is shut off. Either remove the fuse or turn off the circuit breaker. • To reduce the possibility of serious
injury, always take the proper precautions and unplug the fixture before moving or cleaning. • Risk of fire or electric shock.
NOtICe: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures: Reorient or relocate the receiving antenna, increase the separation
AA between the equipment and the receiver, connect the equipment into an outlet on a circuit different from that to which the
receiver is connected, and consult the dealer or an experienced radio/TV.
• Changes or modifications not expressly approved by the party responsible for compliance could void the user's
Ground
authority to operate the equipment.
Screw
See website for Warranty, Troubleshooting or Care and Cleaning details at www.ETiSSL.com.
CC
Keyholes
BB
CC
Screw the threaded base on the fixture body
4
(A) clockwise into the SpeedMount™ socket
(CC). Restore power at the electrical panel.
Turn on the light switch to activate the fixture.
lIgHt dIstrIButIon
-/+180
-150 150
-120
0
-90
0°-90°
300
600
-60 900
1200
-30 30
1500
0
AVERAGE BEAM ANGLE(50%):103.6 DEG
Questions, problems, missing parts?
Call ETiSSL Customer Service 8 a.m. - 5 p.m., CST, Monday - Friday
1-855-etI-sslI (1-855-384-7754) www.etissl.com
CC
GUIde d'UtILISatION et d'eNtretIeN
SPIN LIGht ® à Led aVeC 3 têteS réGLabLeS
contenu de l'eMBallage
A
Pièce désignation Quantité
Luminaire 1
A
MatérIel Inclus
Pièce désignation Quantité
Connecteur de fil 2
AA
Vis de fixation 2
BB
Prise SpeedMount™ 1
CC
reMarQUe : Gardez votre facture ainsi que ces instructions comme preuves d'achat.
120
aVertISSeMeNt: RISQUE DE CHOC ELECTRIQUE. Assurez-vous que l'électricité des fils sur lesquels vous travaillez est
coupée. Retirez le fusible ou éteignez le disjoncteur avant de retirer un luminaire existant ou d'en installer un nouveau.
Si vous n'êtes pas familiers avec les installations électriques, nous vous recommandons de faire appel à un électricien qualifié
90
pour l'installation.
InstallatIon sur un suPPort de laMPe sans clé
60
UNIT:cd
C0/180,103.0
C30/210,104.5
C60/240,103.7
C90/270,103.1
Couper l'alimentation au panneau
1 2
électrique avant de commencer
l'installation. Retirer l'ampoule existante.
InstallatIon sur une Boîte de sortIe électrIQue
2
BB
Fixez les vis de montage (BB)
1
directement à la boîte de prise
électrique.
N° modèle 566011420
N° de pièce SL-7IN-3500LM-8-40K-SV-N
A
AA BB CC
A
Vissez la base filetée sur le corps du luminaire (A)
dans le sens des aiguilles d'une montre dans le
support de lampe sans clé (non inclus).
Connectez le fil blanc de la prise
SpeedMount™ (CC) au fil blanc de la
boîte de prise électrique. Connectez le
fil noir de la prise SpeedMount™ (CC)
au fil noir de la boîte de prise électrique.
Couvrez les connexions de fils à l'aide
des connecteurs de fils (AA). Enveloppez
AA
les connexions de fil avec du ruban
électrique pour une connexion plus sûre.
Vis de
Enroulez le fil de terre du boîtier de
terre
prise électrique autour de la vis de terre
sur le support de montage de la prise
SpeedMount™ (CC). Replacez les fils à CC
l'intérieur de la boîte de prise électrique.
