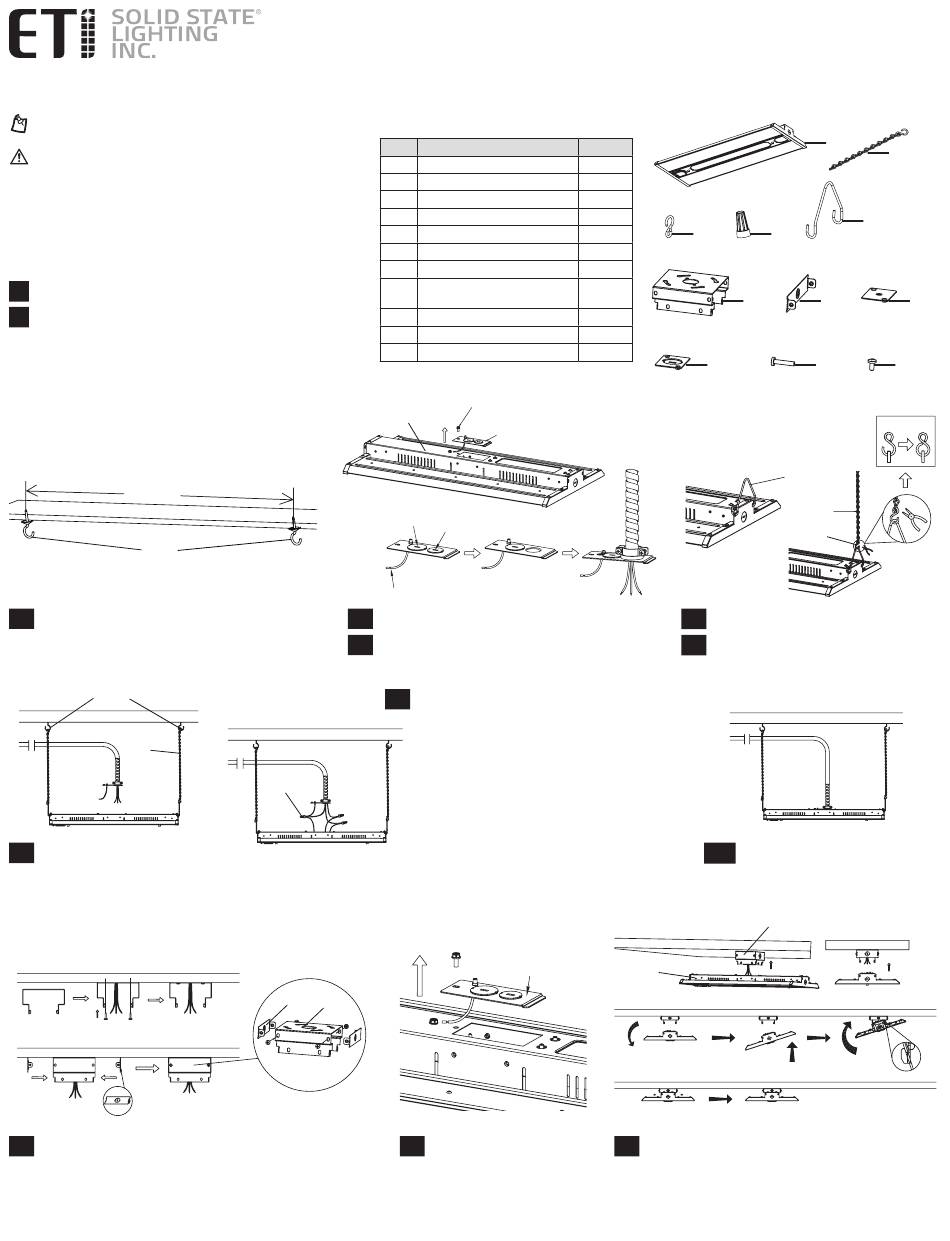

ETI Solid State Lighting 50242162 Use And Care Manual

nOTe: Keep your receipt and these instructions for proof of
purchase.
WarninG: Shut off the power at the circuit breaker or fuse panel
before removing the old fixture, ballast, or fluorescent tubes.
If you are unfamiliar with electrical installations, we recommend you
contact a qualified electrician to do the installation.
INSTALLATION
nOTiCe: Select a suitable location that can support the weight of
the fixture. It is the installers responsibility to determine the method of
mounting and mounting hardware required for the desired mounting
location before beginning installation.
Shut off power at the electrical panel before beginning the
1
installation.
Remove existing fixture and set aside to recycle in accordance
2
with local requirements.
SuSPeNSION MOuNTINg INSTALLATION
24.6 in.
Hook
Mark two spots on the ceiling 24.6 in. apart and install
3a
hooks (not included) into the ceiling if installing into
wood or use the required hardware for the desired
mounting location.
Hook
B
Attach the metal chains to the
8a
hooks in the ceiling. The fixture
must hang 3ft. from the ceiling.
SurfAce MOuNTINg INSTALLATION
Feed wires from the electrical box through the mounting
3b
bracket. Then use 2 long screws to attach the mounting
bracket to the mounting surface. Use 4 short screws to attach
the 2 mounting plate covers to the mounting bracket.
Model # 50242162
Use and Care GUide
Linear HiGH BaY Led
PAckAge cONTeNTS
Part Description
A Fixture
B Metal Chain
C S-Hook
D Wire Connector
E V Clip
F Mounting Bracket
G Mounting Plate Cover
H Mini Conduit Adapter for
Downrod Mounting
I 1/2" Downrod Mount
J Long Screw
K Short Screw
A
3/4 in. knockout
1/2 in. knockout
Green ground
Remove the driver box cover plate and punch out the
4a
knock out hole.
Feed the 1/2 in. or 3/4 in. conduit (based on local
5a
electrical code) through the respective knock out hole.
Make the electrical connections:
9a
• Feed wires from the fixture through the conduit
based on local electrical code.
• Black wire to black wire.
• White wire to white wire.
• Ground wire from fixture to ground from driver
box cover plate to the ground wire from the
electrical box.
D
• Use wire connectors to cover the wire
connections and wrap with electrical tape.
G
F
Remove the driver box cover
4b
plate from the fixture.
Part # HBL-2FT-18000LM-8-50K-MV-LVd-Os
Quantity
1
2
2
3
2
1
2
1
1
2
10
Screw
Driver Box Cover Plate
Driver Box
Cover Plate
A
Attach the fixture to the mounting bracket by aligning the
5b
slots on the fixture to the mounting bracket. Tilt the fixture
to insert it into the mounting bracket, and then push the
other side of the fixture into the mounting bracket. Use 4
short screws to secure the fixture to the mounting bracket.
Certification # 50242162
A
D
C
F G
I J
E
B
C
Connect the V Clips to each end of the fixture
6a
housing.
Connect the S-Hooks to the V Clips and then
7a
connect the metal chains to each S-Hook.
Use pliers to pinch the S-Hooks closed.
Tuck wires inside the driver box and
10a
reattach the driver box cover plate.
Restore power at the electrical panel.
F
B
E
H
K
