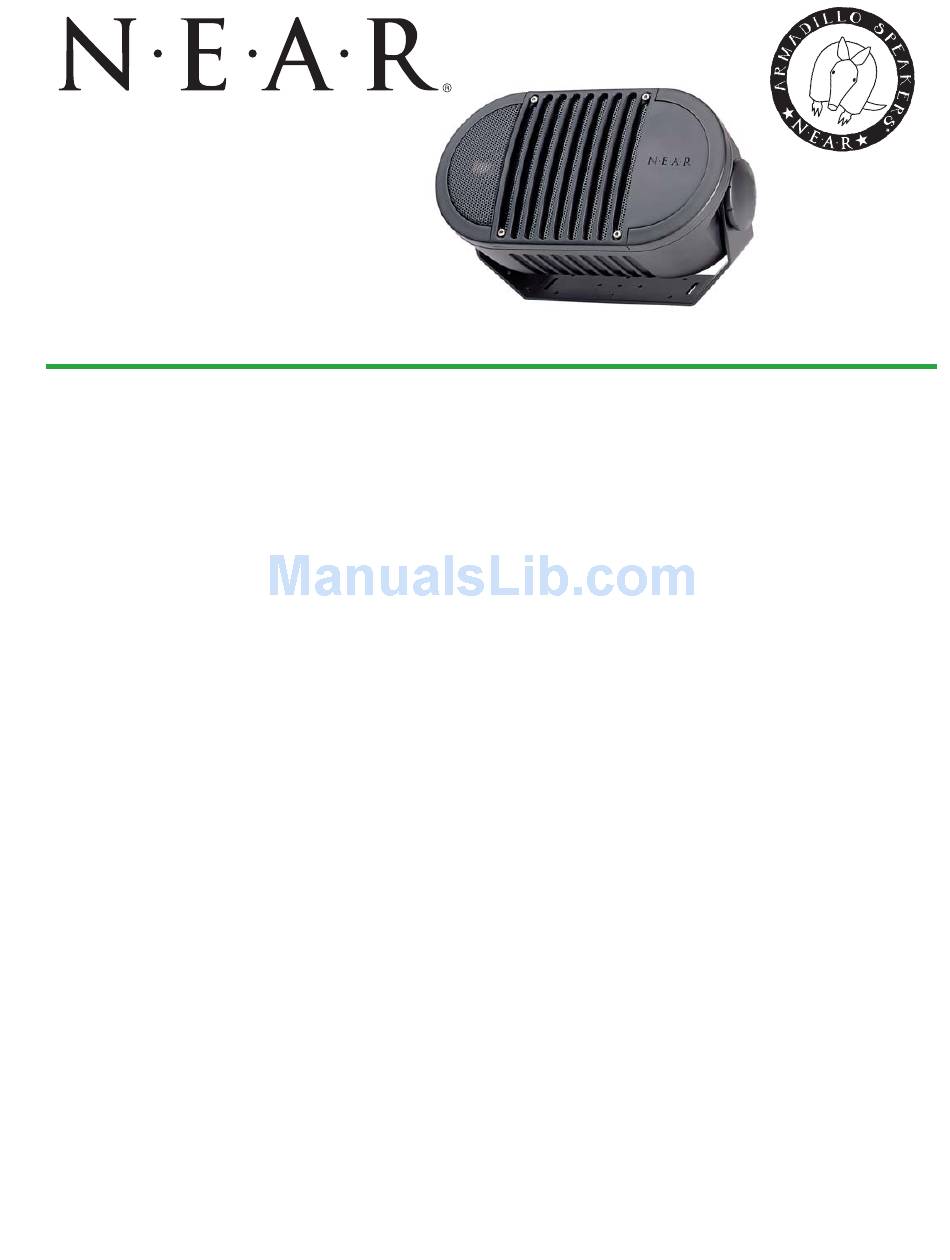

A-Series
All-Environment
Loudspeaker

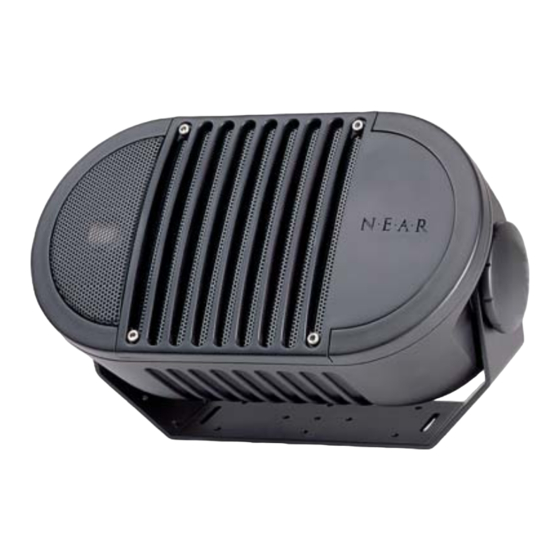

Models A6, A6T
Features*
• Indoor and outdoor all-weather speaker with
fully-sealed cabinet
• Available versions: 8-ohm and 70V
• Available colors: black, green, and white
• Metal-alloy MDT™ mid/bass speaker cone delivers
natural sound with ultra-low distortion
• Extremely stable, long-lasting MDT cone structure
• High-efficiency and power handling for optimum
performance
• Dual-layer voice coil with separate inner and outer
windings for high output with ultra-low distortion
• Patented MLS™ fluid voice coil suspension replaces
distortion-causing mechanical spider
• Compound rubber surrounds resist UV rays
and salt spray
• Gold-plated, rust proof connectors
• High-density, injection-molded cabinet resists
chipping and scratching
• Low-resonance cabinet structure
• Easy-to-grasp multi-faceted mounting brackets
with 180
o
swivel
• Easy to grip, oversized mounting knobs
• Brackets mount with knobs attached for easier
and safer installation in hard-to-reach locations
• Heavy-gauge aluminum (A2 & A6 models) or
stainless steel (A8 models) brackets
• Color-matched/powder-coated mounting brackets
• Corrosion-resistant driver frame & mounting
hardware
• Attractive styling with "Armadillo" ridges for stiffness
• Coaxial (A2 models) or 2-way speaker
systems (A6 & A8 models)
*
A2 and A8 models described in more detail on separate
specification sheets.
Additional information at www.nearspeakers.com
Description
NEAR A-Series Armadillo
technologies that improve sound quality and operating reliability.
Attractively styled, they are engineered for both indoor and out-
door applications. The A6 models are conveniently sized, 2-way
designs with high-power handling for applications such as restau-
rants, health clubs, and patio and pool areas. The compact A2
models are designed for smaller spaces.Their high audio intelligi-
bility and superb articulation make them ideal for music or pag-
ing applications.The A8 models are high-output, 2-way designs for
larger spaces such as clubs, auditoriums, and theme parks. All
models feature NEAR's MDT (Metal Diaphragm Technology) and
MLS (Magnetic Liquid Suspension).
Unique MDT™ (Metal Diaphragm Technology):
• High rigidity and low mass of metal versus traditional papers
and plastics
• Extremely stable cone structure over long periods of time
• Fast transmission of sound through the diaphragm means low
energy storage
• Special anodizing process creates a ceramic coating for
increased stiffness
• Efficient heat-sinking of voice coils under long-term,
high-power situations
Patented MLS™ (Magnetic Liquid Suspension):
• Voice coil is constantly centered for lower distortion
• Voice coil is more efficiently heat-sinked by fluid instead of air
• Greater linearity is accomplished because the mechanical
spider is eliminated
• Constant lubrication of the gap prevents oxidation from
outdoor use
loudspeakers feature NEAR's unique
®
Specifications subject to change without notice.
© 2000 Bogen Communications, Inc.
Part No. 54-8009-01R2 Printed in U.S.A. 0210
