Summary of Contents for Bogen NEAR A2

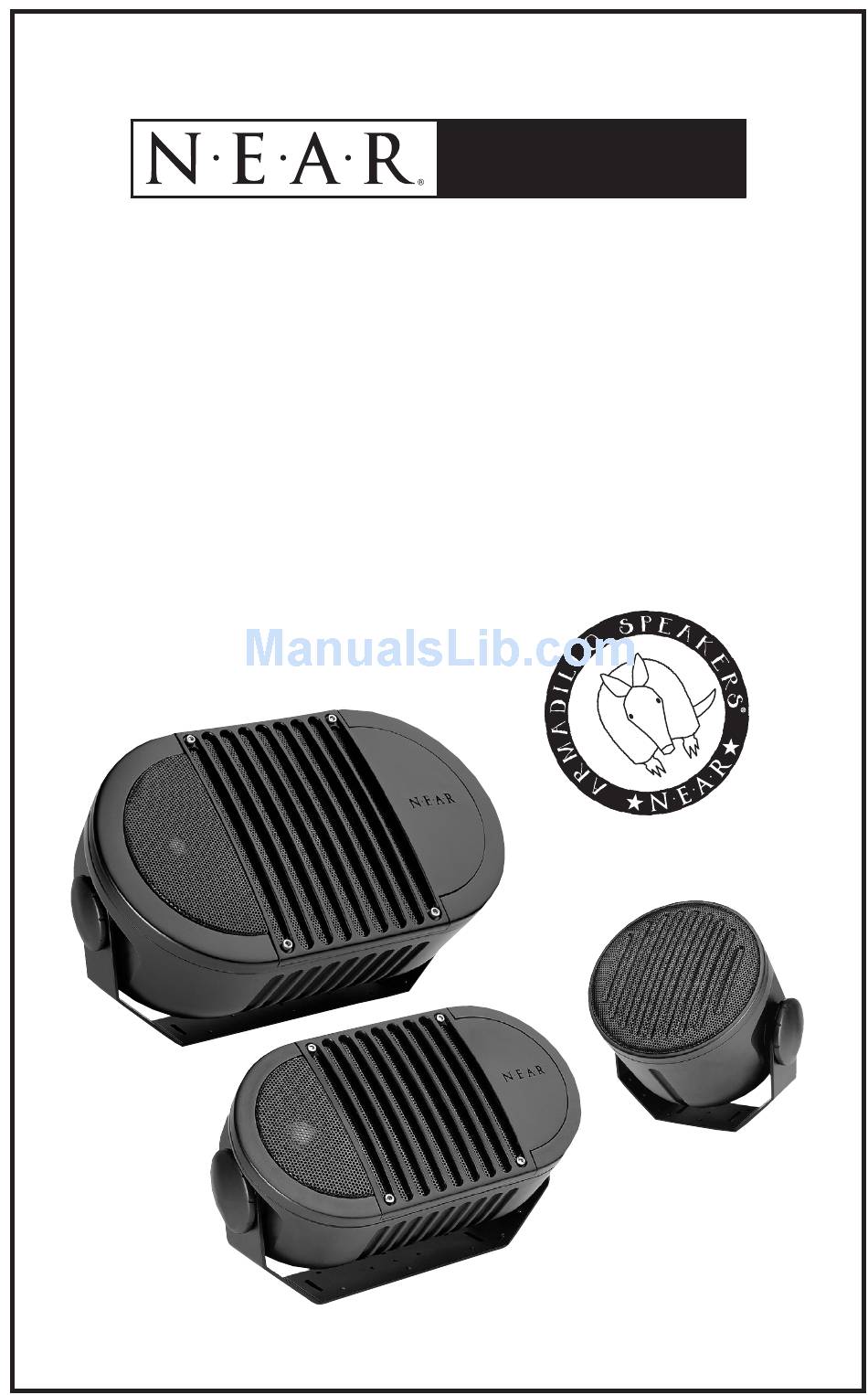

- Page 1 OWNER’S GUIDE MODELS A2, A6, A8, & VARIATIONS A-SERIES ENVIRONMENT-PROOF INDOOR/OUTDOOR LOUDSPEAKERS 54-2033-02E 1108...
- Page 2 NEAR A-SERIES ENVIRONMENT-PROOF INDOOR/OUTDOOR LOUDSPEAKERS BRACKET INSTALLATION WARNING: Mounting brackets must be secured in accordance with local codes. If in doubt, consult a professional contractor to determine the integrity of the structure to which the bracket will be attached. When required, a user-supplied safety strap can be secured to the back of the speaker cabinet using the threaded brass insert and the forged steel safety bolt (included).
- Page 3 BACK-PANEL CONNECTIONS BACK PANEL OF 70V MODELS BACK PANEL OF 8Ω MODELS EXAMPLE OF 70V SYSTEM CONFIGURATION NOTE: The total number of speakers multiplied by the tap value cannot exceed the output power (in watts) of the 70V amplifier. The above example shows 5 speakers. Using the 16W taps, you need an amplifier with at least (5) x (16) = 80W.
-
Page 4: Specifications
Other exclusions apply. 50 Spring Street, Ramsey, NJ 07446 U.S.A. 201-934-8500 • Fax 201-934-9832 www.bogen.com Specifications are subject to change without notice. © 2000 Bogen Communications, Inc.
