Bogen A2 Specifications

A-Series
All-Environment
Loudspeaker

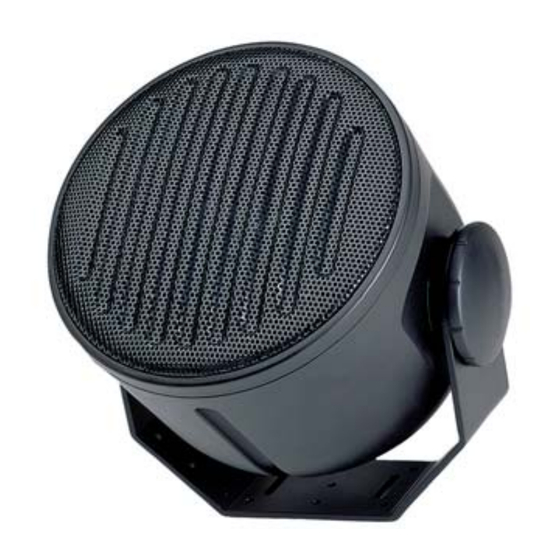

Models A2, A2T
Features*
• Indoor and outdoor all-weather speaker with
fully-sealed cabinet
• Available versions: 8-ohm and 70V
• Available colors: black, green, and white
• Metal-alloy MDT™ mid/bass speaker cone delivers
natural sound with ultra-low distortion
• Extremely stable, long-lasting MDT cone structure
• High-efficiency and power handling for optimum
performance
• Dual-layer voice coil with separate inner and outer
windings for high output with ultra-low distortion
• Patented MLS™ fluid voice coil suspension replaces
distortion-causing mechanical spider
• Compound rubber surrounds resist UV rays
and salt spray
• Gold-plated, rust proof connectors
• High-density, injection-molded cabinet resists
chipping and scratching
• Low-resonance cabinet structure
• Easy-to-grasp multi-faceted mounting brackets
o
with 180 swivel
• Easy to grip, oversized mounting knobs
• Brackets mount with knobs attached for easier
and safer installation in hard-to-reach locations
• Heavy-gauge aluminum (A2 & A6 models) or
stainless steel (A8 models) brackets
• Corrosion-resistant driver frame & mounting
hardware
• Attractive styling with "Armadillo" ridges for stiffness
• Coaxial (A2 models) or 2-way speaker
systems (A6 & A8 models)
* A6 and A8 models described in more detail on separate
specification sheets.
Additional information at www.nearspeakers.com
Description
NEAR A-Series Armadillo ®
technologies that improve sound quality and operating reliability.
Attractively styled, they are engineered for both indoor and out-
door applications. The compact A2 models are designed for
smaller spaces.Their high audio intelligibility and superb articula-
tion make them ideal for music or paging applications. The A6
models are conveniently sized, 2-way designs with high-power
handling for applications such as restaurants, health clubs, and
patio and pool areas. The A8 models are high-output 2-way
designs for larger spaces such as clubs, auditoriums, and theme
parks. All models feature NEAR's MDT (Metal Diaphragm
Technology) and MLS (Magnetic Liquid Suspension).
Unique MDT™ (Metal Diaphragm Technology):
• High rigidity and low mass of metal versus traditional papers
and plastics
• Extremely stable cone structure over long periods of time
• Fast transmission of sound through the diaphragm means
low energy storage
• Special anodizing process creates a ceramic coating for
increased stiffness
• Efficient heat-sinking of voice coils under long-term,
high-power situations
Patented MLS™ (Magnetic Liquid Suspension):
• Voice coil is constantly centered for lower distortion
• Voice coil is more efficiently heat-sinked by fluid instead of
air
• Greater linearity is accomplished because the mechanical
spider is eliminated
• Constant lubrication of the gap prevents oxidation from
outdoor use
loudspeakers feature NEAR's unique
Specifications subject to change without notice.
© 2000 Bogen Communications, Inc.
Part No. 54-8008-01R2 Printed in U.S.A. 0210
