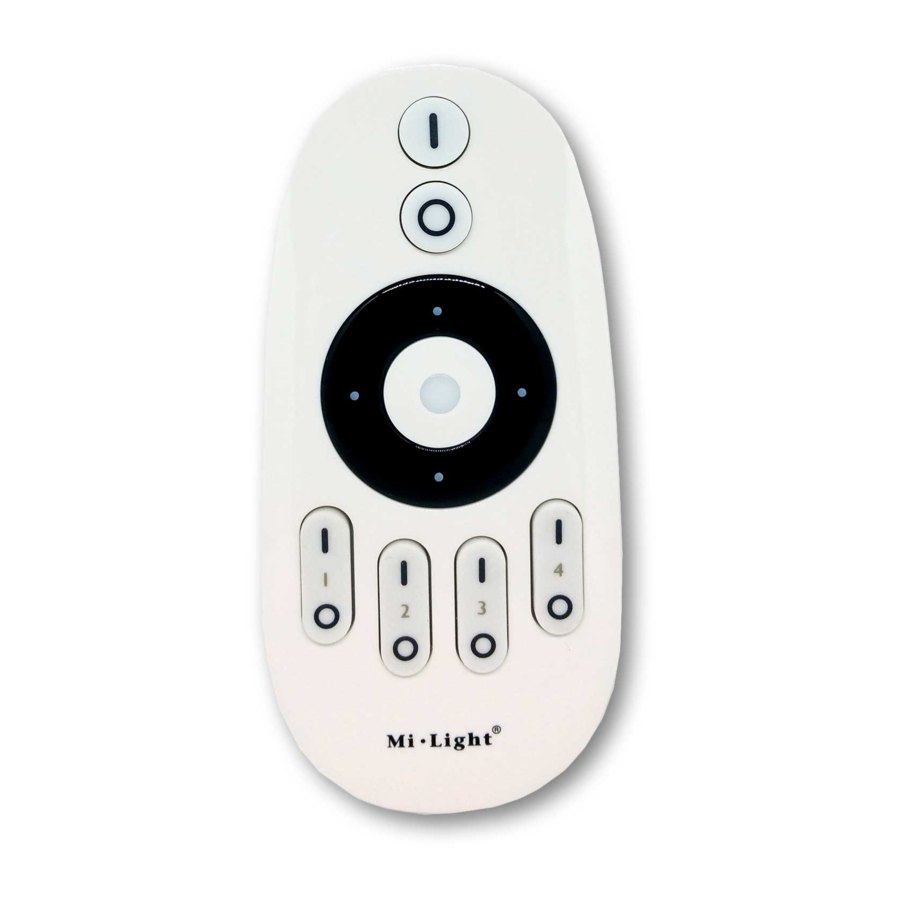

Mi-Light FUT006 Quick Start Manual

Color Temperature Remote Control
Features
This manual describes two types of remote controls with same functions. Adopt world-wide
used 2.4GHz frequency, GFSK control method, with the features of low power consumption,
long distance transmitting, strong anti-interference and fast communication rate. Can control
specified Mi-Light / MiBoxer smart light with color temperature and brightness changing.
Parameters
Product Name: Color Temperature Remote Control
(Rotating Wheel)
Model No.: FUT006
Voltage: 3V(AAA * 2PCS)
Transmission Frequency: 2.4GHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power Consumption: 20uA
Control Distance: 30m
Size: 53*21*110.5mm
Product Name: Color Temperature Remote Control
(Full Button)
Model No.: FUT007
Voltage: 3V(AAA * 2PCS)
Transmission Frequency: 2.4GHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power Consumption: 5uA
Control Distance: 30m
Size: 53*21*110.5mm
Products Key Diagram
/ Color temperature
Warm white +
● To dim all dual white lights at once or change the color temperature, first press 'Master ON'.
● To do this with individual lights, first press ' Zone ON'. Second, set the adjustment for color
temperature or brightness.
● To turn on the night light mode of a single ( dual white ) light, press and hold the 'Zone OFF' from
one of the 4 Zones.
● To turn on all the lights in night light mode, press and hold 'Master OFF'.
● For remote control FUT006, the default mode is to adjust the brightness, rotating the wheel from left
to right, brightness up, from right to left, brightness down. Switching to adjusting the color
temperature by pressing the middle button once, left to right, cooler, right to left, warmer.
Model No.: FUT006 / FUT007
Brightness
Zone ON
Zone OFF
Zone ON
Zone OFF
Master ON
Master OFF
Press once change to
color temperature
4x(un) Link light
FUT006
Master ON
Master OFF
Brightness +
Cool white +
Brightness -
4x(un) Link light
FUT007
53mm
53mm
21mm
21mm
