Summary of Contents for Mi-Light T1
- Page 1 User Instruction Smart Panel Remote Controller Model No.: T1 / T2 / T3 / T4 & B1 / B2 / B3 / B4...
-
Page 2: Product Features
This product has T series and B series, and the difference is the method of power supplying. Both series have 4 kinds: T1/B1 4-zone dimmable panel remote controller; T2/B2 CCT 4-zone panel remote controller;... - Page 3 2. Technical Parameters B Series B Series: Powered by 3V(2*AAA Battery) Working Temperature: -20-60℃ Transmitting Power: 6dBm Input Voltage: 3V(2*AAA Battery) Control Distance: 30m Radio Frequency: 2400-2483.5MHz Standby Power: 20uA Modulation Method: GFSK Size: L86mm*W86mm T Series T Series: Powered by AC90-110V or AC180-240V Working Temperature: -20-60℃...
- Page 4 3. Installation/ Dismantlement T series Installation/ Dismantlement B series Installation/ Dismantlement Double-sided adhesive 4. Attention 1. Please check the cable, and make the circut is correct before power on. 2. When installation, pls handle with care to avoid the broken of the glass panel.
- Page 5 5. Function of keys Remark: When touching the button, LED indicating lamp will flash once with different sound(Touch slider with no sound). B1 & T1 Dimming Slider 60S Delay OFF ALL ON ALL OFF Zone ON 4x(un) Link Light Zone OFF Touch Dimming Slider to change the brightness from 1~100%.
- Page 6 B2 & T2 CCT Slider Dimming Slider 60S Delay OFF ALL OFF ALL ON Zone ON 4x(un) Link Light Zone OFF Touch the slider to change color temperature. Touch Dimming Slider to change the brightness from 1~100%. Touch Master ON, Turn on all linked lights. Long press 5 seconds to turn ON the indicating sound.

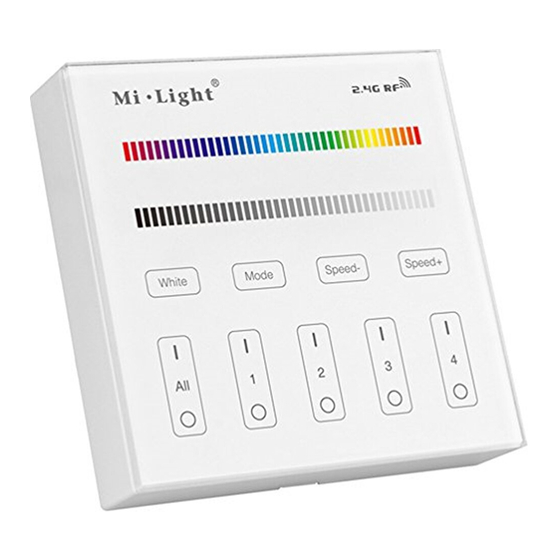

- Page 7 B3 & T3 Color Slider Dimming Slider White Mode Speed+ Mode Mode Speed- ALL ON Zone ON& 4x(un) Link Light ALL OFF Zone OFF Touch Color Slider, Choose the color you want. Touch Dimming Slider to change the brightness from 1~100%. Touch White button to white light mode.
- Page 8 B4 & T4 Color Slider CCT Slider/ Dimming Slider Saturation White Mode Speed+ Mode Mode Speed- ALL ON Zone ON& 4x(un) Link Light ALL OFF Zone OFF Touch Color Slider, Choose the color you want. Under white light mode, touch the slider to change color temperature; Under color mode, touch the slider to change the saturation.
