Mi-Light FUT095 RGBW Quick Start Manual

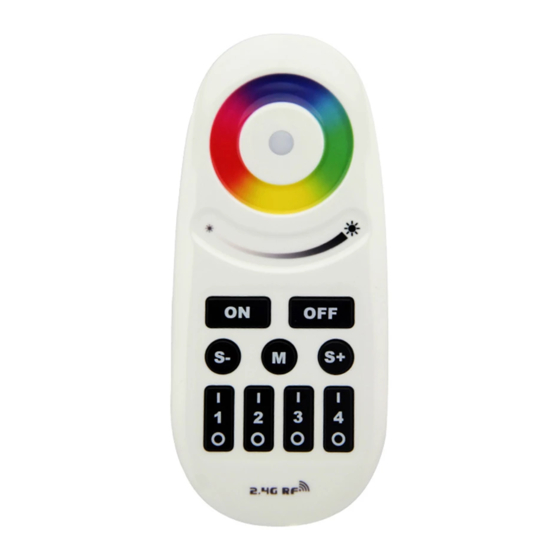

FUT095 RGBW remote control with buttons
FUT096 Touch screen RGBW remote control
Product Features
This manual describes two types of RGBW remote controls used for our RGBW product.
Both of them have same functions but different design. Each remote control can control
the led lights up to four different zones, change the color, dim/brighten the lights,
warm/cool white, different programs. In this manual.
Technical Parameters
Product Name: RGBW remote control with buttons
Model No.: FUT095
Voltage: 3V(AAA * 2PCS)
Transmission Frequency: 2.4GHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power Consumption: 20uA
Control Distance: 30m
Size: 52.5*21*120mm
Product Name: Touch screen RGBW remote control
Model No.: FUT096
Voltage: 3V(AAA * 2PCS)
Transmission Frequency: 2.4GHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power Consumption: 20uA
Control Distance: 30m
Size: 52.5*21*120mm
Products Key Diagram
Remark:
Hold " " to get white mode. Under white mode, press 'S-' to get warm white,
press 'S+' to get cool white. Under color mode, press 'S+/S-' for saturation control. When
press 'M', S+/S- can adjust the speed of the dynamic modes.
To dim all RGBW lights at once or change the color, frist press "Master ON". to do this
with individual lights, frist press "Zone ON". secondly, choose the color or brightness
according to the color ring or brightness ring.
Color ring
Brightness-
Master ON
Zone ON
Zone OFF
Master ON
Color ring
Brightness-
Zone OFF
ON
Speed-
S- S-
1
FUT095
Speed-
Zone ON
FUT096
Indicator light
Brightness+
Master OFF
OFF OFF
Modes(Programs)
Speed+
M M S+ S+
4×(un) Link Light
2 3 4
Master OFF
Indicator light
Brightness+
Speed+
Modes(Programs)
4×(un) Link Light
120mm
ON OFF
OFF
S- S- M M S+ S+
1 2 3 4
52.5mm
120mm
52.5mm
21mm
21mm
