Product Feature
● Brightness and color temperature adjustable
● 2.4GHz wireless transmission technology
● Support MiBoxer/Mi-Light 2.4G series
● Control distance: 30m
● Supports matching multiple devices and can control multiple
devices at the same time
● Easy installation, magnetic mounting
Product Parameter
Product name：
4 Zone CCT rotating panel remote
Model:
K0S
Operating Voltage:
3V(AAA*2PCS)
Standby power:
6μA
Transmit power：
6dBm
RF：
2.4GHz RF
Modulation Method：
GFSK
Control Distance：
30M
86mm

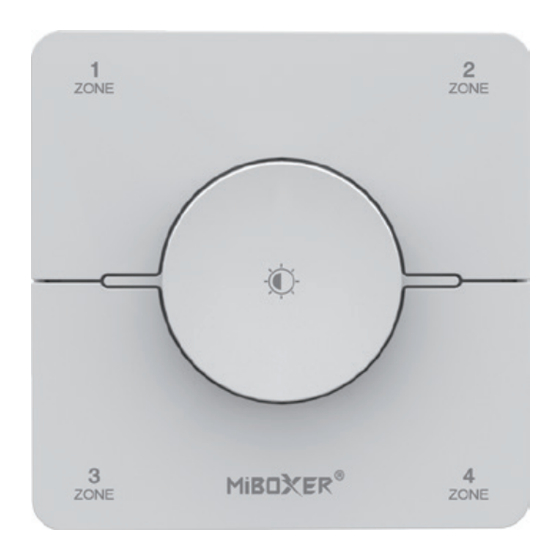

4 Zone CCT rotating panel remote
Model No.: K0S
12mm 14mm
Working Temperature：
EMC Standards (EMC)：
Safety Standard （ LVD） ：
Radio equipment（RED）：
Certification
5mm
-10~40℃
ETSI EN301 489-1 v 2.2.3 (2019-11)
ETSI EN 301 489-3 v 2.3.2 (2023-01)
EN 61347-2-11:2001+A1:2019,
EN 61347-1:2015+A1:2021,
EN 62493:2015 +A1:2022
ETSI EN 300 440 V2.2.1
CE, EMC, LVD, RED
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mi-Light MiBoxer K0S
Summary of Contents for Mi-Light MiBoxer K0S
- Page 1 Model No.: K0S Product Feature ● Brightness and color temperature adjustable ● 2.4GHz wireless transmission technology ● Support MiBoxer/Mi-Light 2.4G series ● Control distance: 30m ● Supports matching multiple devices and can control multiple devices at the same time ● Easy installation, magnetic mounting Product Parameter Product name：...
- Page 2 Indication Zone 1 Zone 2 ZONE ZONE Rotate to adjust brightness/color temperature Rotating switch Zone 3 Zone 4 ZONE ZONE ZONE ZONE ZONE ZONE Short Press: turn on light in group Rotating： Dimming Short press again: turn off light in group Short press rotary button: switch to color temperature mode, rotate to adjust the color temperature ( attention: device will step out CCT mode if user don't...
- Page 3 （Attention: no need to unlink if the light never be linked） Attention 1.This remote control supports MiBoxer/Mi-Light 2.4G series products; see the product manual for details about whether this remote control is compatible. 2. Don’t use it in humidity or high temperature area, please take out battery if don’t use it frequently and keep it in dry or static electricity area 3.
