Mi-Light FUT088 Quick Start Manual

RGB+CCT Full Touch Remote Controller

Product Features

This product adopt world-wide used 2.4GHz frequency, GFSK control method, with
the features of low power consumption, long distance transmitting, strong
anti-interference and fast communication rate. Adopt high-precision touching IC
Touching is more stable and sensitive, can control specified Mi-Light smart light
with color, color temperature, saturation and brightness changing.

Parameters

Model No.: FUT088
Working Voltage: 3V(AAA Battery*2PCS)
Transmitting Power: 6dBm
Standby Power: 20uA
Working Temperature: -20~60℃
Radio Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Control Distance: 30m
Size: 47*16.5*134mm

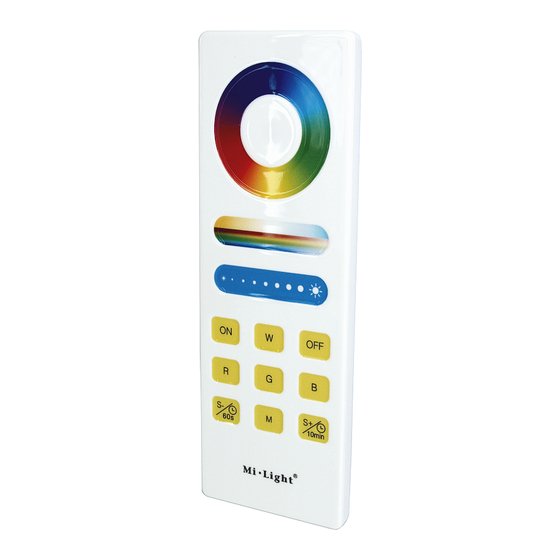

Products Key Diagram

Saturation / CCT Control
Speed- / 60S Delay OFF
Touch the color ring to change colors.
Under white light mode, adjust color temperature;
Under color light mode, change color saturation.
Slide the brightness slider to adjust the brightness.
Touch ON button, turn on the linked device.
Touch OFF button, turn off the linked device.
Press the button to get white light.
Static Red Light.
Static Green Light.
Static Blue Light.
Model No.: FUT088
Color Ring
White
ON / Link(Unlink)
Static Red Light
Static Green Light
47mm
Indicator light
Dimming Slider
OFF
Static Blue Light
Speed+ /10min Delay OFF
Mode
16.5mm
