Mi-Light MiBOXER FUT087 Quick Start Manual

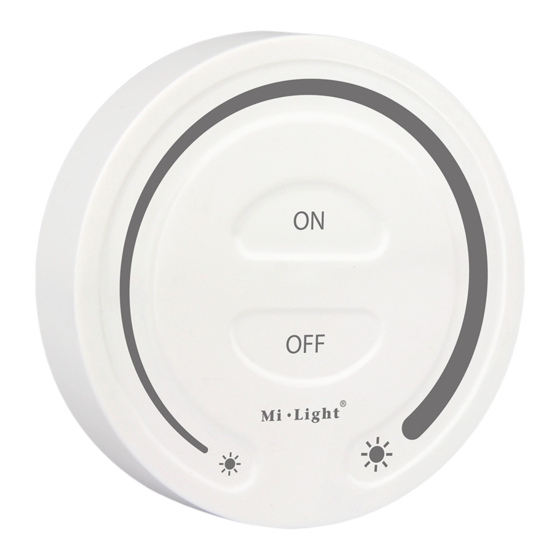

Touch Dimming Remote
Model No.: FUT087

Products Key Diagram

Dimming Slider

1% Brightness
Short press to turn on the light; Pair / Unpair bu�on
Short press to turn off the light; Long press to night light mode.
Touch adjust 1-100% brightness.
Installa�on
1. Install the remote to the selected place.
Keep the two screw on the same level
and install it with arrow up.
3. Press downward and rotate to the le�
to lock in position.
A�en�on
1. This remote only control specified Mi-Light / MiBoxer products; not all Mi-Light / MiBoxer
series can work on this remote.
2. If indicator light flashes quickly, replace battery.
3. This 2.4 GHz remote is not intended for use in humid, high temperature, or high dust
environment. Dry, low sta�c electricity environment only.
4. Using the remote in the place with metal or concrete structures or electromagnetic
interference will cause issues with communication and communication range.
Subordinate New Brand
100% Brightness
2. Install ba�ery (AAA ba�ery*2pcs),
then attach to base.
Dismantling: Rotate to the
right, then pull off base.
Made in China

Pairing / Unpairing

You can control lights and controllers after linking remote with light.
Pairing Instruc�ons
Power Light/Cont.
1
Short press "ON"
Switch off light or
button 3 times
controller for 10
within 3 seconds
seconds. Then, switch
when light on.
light or controller on.
If light does not blink slowly, then the pairing process failed.
Switch off controller and follow steps again.
Unpairing Instruc�ons
Power Light/Cont.
1
Short press "ON"
Switch off light or
button 5 times
controller for 10
within 3 seconds
seconds. Then, switch
when light on.
light or controller on.
If light does not blink slowly, then the unpairing process
failed. Switch off controller and follow steps again.
Power Light/Cont.
3
2
Connected lights blink
3 times slowly to indicate
pairing is successful.
Power Light/Cont.
3
2
Connected lights blink
3 times slowly to indicate
unpairing is successful.
