NRS Healthcare N85146 User Instructions

General Safety Warning

Please ensure these instructions are fully read and
understood before installation/ use. Retain these
instructions in a safe place for future reference.

1.0 Intended Use

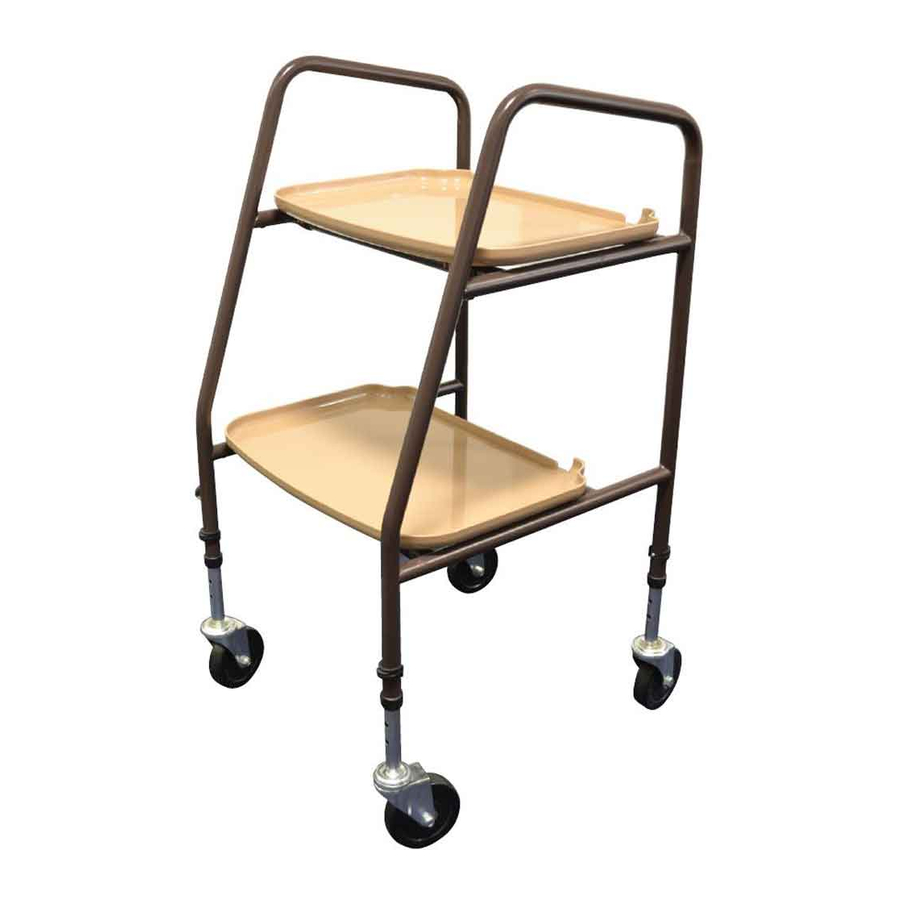

The Home Helper Trolley is designed to enable users to
safely transfer items and meals around the home; the lower
tray is set forward on the frame to allow users to walk
naturally when pushing.

2.0 Safety Precautions

WARNING this trolley is not designed to be sat upon.
WARNING although this item is used when walking
IT SHOULD NOT BE USED AS A WALKING AID.

3.0 Unpacking

Carefully unpack the product, check all parts are present,
see pack contents below. Check for any damage. If you see,
or suspect, a fault do not use. Contact your supplier.
1
4 6
Item Pack Contents
1 Frame Side Right
2 Frame side Left
3 Tray
4 Cross Tube Rear
5 Cross tube Front
6 E-Clip
7 Castor

4.0 Assembly Instructions

Note this product does not require tools for assembly
1- Place the frame side on the floor, as shown in
diagram-1. A soft surface is preferred to prevent
scratching.
2- Fit the cross tubes into the frame, note; there are
four tubes, two rear tubes and two front tubes (with
welded tabs), the front tubes must be fitted in the
correct orientation, with the tabs facing forward and
upwards see diagram 3.
NRS Healthcare, Sherwood House, Cartwright Way, Forest Business Park, Bardon Hill,
Tel. Customer Services: 03451218111 Email: customerservices@nrshealthcare.co.uk
User Instructions: N85146
Home Helper Trolley – Flat Pack
Diag.1
3
7
No. Off
Coalville, Leicestershire, LE67 1UB, UK
2
Front of trolley
5
1
Enlarged View
1
showing Front Cross
2
tube with TABS
2
facing forward and
2
upward
4
4
Diag.2
REAR
FRONT
Cross tube
Cross
tube
Diag.3
