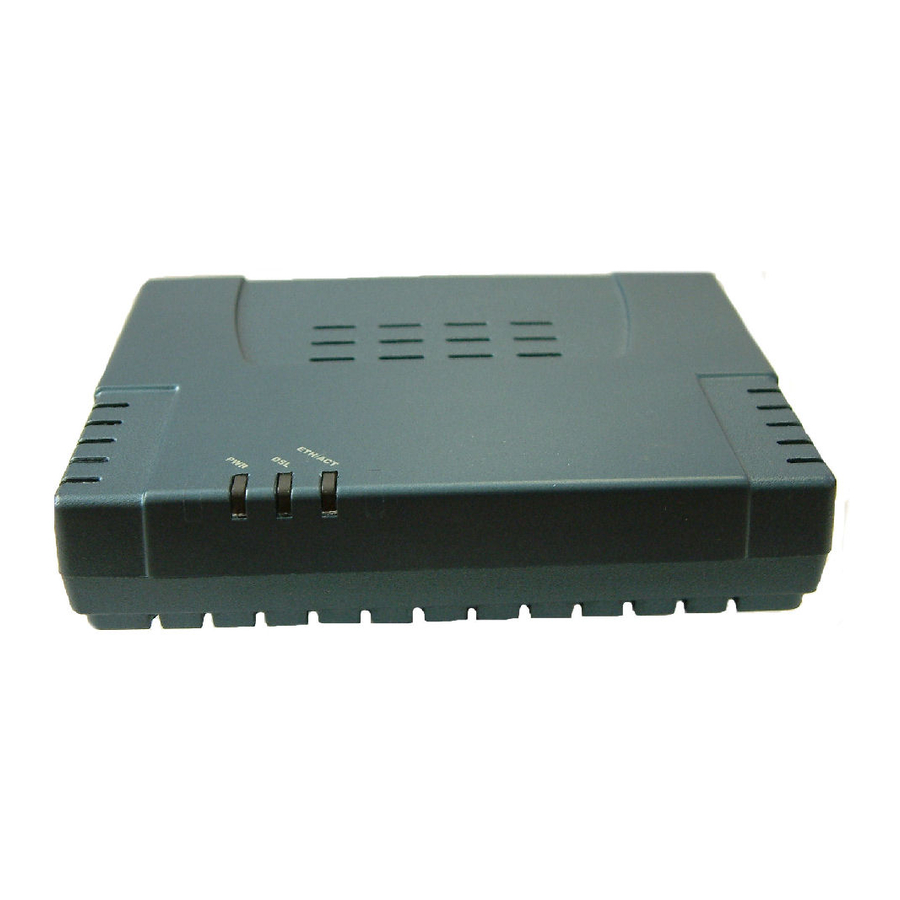

Solwise SAR-600E User Manual

Adsl 2/2+ ready 1 port router
Hide thumbs Also See for SAR-600E:
Table of Contents

Advertisement

Quick Links

Download this manual
ADSL Ethernet Router
User Guide
Version 1.0
SAR-600E ADSL 2/2+ Ready 1 Port Router
Sol w i s e
Ltd.
www.solwiseforum.co.uk
The Solwise Forum is designed to be the first port-of-call for technical support and sales advice
for the whole Solwise product range.
Please check the forum for coverage on any technical problems you have. Many people have
trodden your path before you, and a quick check on the forum will reduce the pressure on our
support staff
• Product warranty does not apply to damage caused by lightning, power surges or wrong
voltage usage.
• This product is for use only in UL Listed computers.
SAR-600E ADSL Ethernet Router User Guide
SAR-600E ADSL Router User Guide
Page 1 of 39

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAR-600E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Solwise SAR-600E

Summary of Contents for Solwise SAR-600E

  • Page 1 Sol w i s e Ltd. www.solwiseforum.co.uk The Solwise Forum is designed to be the first port-of-call for technical support and sales advice for the whole Solwise product range. Please check the forum for coverage on any technical problems you have. Many people have...
  • Page 2 SAR-600E ADSL Ethernet Router User Guide Solwise Ltd. 13/15 Springfield Way Anlaby Hull HU10 6RJ Tel: 0845 458 4558 (local rate) Fax: 0845 458 4559 Support Tel: 0845 1931320 Email sales@solwise.co.uk Http www.solwise.co.uk Copyright All rights reserved. No part of this document may be reproduced in any form or by any means without written permission from the product manufacturer.

  • Page 3: Table Of Contents

    SAR-600E ADSL Ethernet Router User Guide Table of Contents Preliminary Pages Page Table of Contents ........................3 List of Illustrations .........................5 Chapter 1 - About this Manual.....................8 Introduction ..................8 Scope and Purpose................8 Targeted Audience................8 Manual Organisation ................8 Chapter 2 – ADSL Ethernet Router Description ..............9 ADSL Router Overview ..............9...
  • Page 4 SAR-600E ADSL Ethernet Router User Guide 5.5.10 IP QoS ....................26 5.5.11 IGMP Multicast ................27 5.5.12 Port Forwarding................28 5.5.13 MAC Filtering (Bridge Filters) ............29 5.5.14 Access Control................30 5.5.15 Routing (Static Routing) ..............31 5.5.16 Dynamic Routing................32 5.5.17 System Password ................33 5.5.18 Firmware Upgrade................34 5.5.19 Restore to Default................35...

  • Page 5: List Of Illustrations

    SAR-600E ADSL Ethernet Router User Guide List of Illustrations Figure Page Figure 1-1 : ADSL Router Configuration Diagram ...............9 Figure 1-2 : Front Indicators (For Ethernet Router).............11 Figure 1-3 : Back Panel Indicators..................12 Figure 1-4 : ADSL Router Connection Diagram ..............13 Figure 1-5 : Setup Page ......................14...
  • Page 6 SAR-600E ADSL Ethernet Router User Guide Figure 1-25 : MAC Filtering (Bridge Filters) ..............30 Figure 1-26 : Access Control ....................31 Figure 1-27 : Static Routing ....................32 Figure 1-28 : Dynamic Routing ...................33 Figure 1-29 : System Password....................33 Figure 1-30 : Firmware Upgrade..................34 Figure 1-31 : Restore to Default prompt ................35...
  • Page 7 SAR-600E ADSL Ethernet Router User Guide Safety Summary Messages WARNING HIGH VOLTAGE is used in the equipment. Make sure equipment is properly grounded BEFORE opening. Failure to observe safety precautions may result in electric shock to user. CAUTION Check voltages before connecting equipment to power supplies. Wrong voltages applied may result in damage to equipment.

  • Page 8: Chapter 1 - About This Manual

    This manual is designed and developed for the operators and users who are required to operate and perform first-level maintenance of the SAR-600E Router. It assumes the user of this manual has basic knowledge and experience in operating similar modem configuration and computer systems equipment.

  • Page 9: Chapter 2 - Adsl Ethernet Router Description

    SAR-600E ADSL Ethernet Router User Guide Chapter 2 – ADSL Ethernet Router Description The SAR-600E Router is the perfect high-speed WAN bridge/router. This full-featured product is specifically designed to connect to the Internet and directly connect to your local area network via high speed 10/100 Mbps Ethernet.

  • Page 10: Chapter 3 - Your Gateway At A Glance

    SAR-600E ADSL Ethernet Router User Guide Chapter 3 - Your Gateway At A Glance The SAR-600E may have different ports and LEDs. Let’s take a look at the different options. Depending on your model, it may have some or all of the features listed below...

  • Page 11: Adsl Router Overview

    SAR-600E ADSL Ethernet Router User Guide ADSL Router Overview Front Indicators 3.2.1 Fig 1-2 shows the front indicators of the ADSL Router. Figure 1-2 : Front Indicators (For Ethernet Router) 1 PPP Lights up when the PPP connection is established.

  • Page 12: Back Panel

    SAR-600E ADSL Ethernet Router User Guide Back Panel 3.2.2 Fig 1-3 shows the back panel indicators of the ADSL Router. Figure 1-3 : Back Panel Indicators 1 DSL Telephone jack (RJ-11) to connect to your Telephone Wall Socket (ADSL line).

  • Page 13: Chapter 4 - Installing The Adsl Router

    SAR-600E ADSL Ethernet Router User Guide Chapter 4 - Installing The ADSL Router Locate a suitable location for the ADSL Router. For connections to the Ethernet and DSL interfaces, please refer to the Easy Start. Connect the AC Power Adapter. Depending upon the type of network, you may want to put the power supply on an uninterruptible supply (UPS).

  • Page 14: Chapter 5 - Setting Up The Adsl Router

    SAR-600E ADSL Ethernet Router User Guide Chapter 5 - Setting Up the ADSL Router The basic tabs consist of features which are catered for basic users. This section will guide you through your ADSL Router’s configuration. The ADSL Router is shipped with a standard PPP configuration..

  • Page 15: Quick Start

    SAR-600E ADSL Ethernet Router User Guide For those who have their routers configured, you will be directed to the “Basic Home” page. See Fig 1-6. Figure 1-6 : Basic Home Screen Quick Start If you have already configured your router and wish to change your current configuration, click on the ‘Quick Start’...

  • Page 16: Lan / Dhcp Configuration

    SAR-600E ADSL Ethernet Router User Guide Note. . . After clicking on Connect, please be sure to click on “Save Settings” to register the username / password or any other changes. LAN / DHCP Configuration On one side of your ADSL Router, you have your own Local Area network (LAN) connections.

  • Page 17: Diagnostic Test

    SAR-600E ADSL Ethernet Router User Guide Figure 1-8 : LAN / DHCP Configuration Diagnostic Test Diagnostic Test is used for investigating whether the ADSL Router is properly connected to the WAN Network. See Fig 1-9. This test may take a few seconds to complete. To perform the test, select your connection from the list and press the Test button.

  • Page 18: Ping Test

    SAR-600E ADSL Ethernet Router User Guide Ping Test 5.4.1 Once you have your ADSL Router configured, ensure you can ping the network. You can access the Ping Test page by clicking on the “here” hyperlink in Diagnostic Page. Type the target address that you want to ping.

  • Page 19: Advanced

    SAR-600E ADSL Ethernet Router User Guide Advanced This mode is catered for advance users, a brief explanation of the links are listed as shown below. Figure 1-13 : Advanced Screen WAN Connection 5.5.1 On the other side of the ADSL Router is where your Wide Area Network (WAN) connection;...

  • Page 20: Adsl Modulation

    SAR-600E ADSL Ethernet Router User Guide Figure 1-14 : New Connection (PPPOE Connection Setup) ADSL Modulation 5.5.3 To configure the DSL modulation type, Click setup. Under WAN Setup, select Modem Setup. This will bring up the modem setup screen. Leave the default value if you are unsure or the DSL/ISP did not provide this information.

  • Page 21: Quickstart

    SAR-600E ADSL Ethernet Router User Guide Quickstart 5.5.4 To configure the gateway for a new connection, click on Setup and then click on New Connection. The default PPPoE connection setup is displayed. Give your connection a unique name; the name must not have spaces and cannot begin with numbers. Select the encapsulation type (LLC or VC);...

  • Page 22: Lan Configuration

    SAR-600E ADSL Ethernet Router User Guide Figure 1-16 :Quickstart (PPPOE Connection Setup) LAN Configuration 5.5.5 You can change the ADSL Router’s IP address by, clicking Setup and under LAN Setup, select LAN Configuration, then click Configure. Your ADSL Router’s default IP address and subnet mask are 192.168.1.1/255.255.255.0; this subnet mask will allow the ADSL Router to support 254 users.

  • Page 23: Lan Clients

    SAR-600E ADSL Ethernet Router User Guide Figure 1-17 : LAN Configuration LAN Clients 5.5.6 To add a LAN client select LAN clients, under LAN. If DHCP is used, all DHCP clients are automatically assigned. If a fixed IP address server is on the LAN and you want this server to be visible via the WAN, you must add its IP address.

  • Page 24: Application (Upnp)

    SNTP servers. It uses the UDP protocol on port 123 to communicate between clients and servers. When the SNTP feature is enabled, your SAR-600E will start querying for the time clock information from the primary SNTP server. If it fails to get a valid response within the “timeout”...

  • Page 25: Snmp

    Polling Interval - Time between a successful connection with a SNTP server and a new attempt to connect to an SNTP server. Retry Count - The number of times the SAR-600E will try to connect to an SNTP server before it try to connect to the next server in line.

  • Page 26: Ip Qos

    SAR-600E ADSL Ethernet Router User Guide Figure 1-21 : SNMP Management IP QoS 5.5.10 When QoS is enabled in the AR7, the designated machine, application or person would have precedence over peers when competing for bandwidth. The IP QoS Setup page allows you to configure QoS for a connection, view previously configured QoS rules, add a new rule, or delete an existing rule.

  • Page 27: Igmp Multicast

    SAR-600E ADSL Ethernet Router User Guide Figure 1-22 : IP QoS IGMP Multicast 5.5.11 If the ADSL Router is connected to more than one network, you may need to set up a static route between them. A static route is a pre-defined pathway that network information must travel to reach a specific host or network.

  • Page 28: Port Forwarding

    SAR-600E ADSL Ethernet Router User Guide Figure 1-23 : IGMP Multicast Port Forwarding 5.5.12 Using the Port Forwarding page, you can provide local services (for example web hosting) for people on the Internet or play Internet games. When users send this type of request to your network via the Internet, the ADSL Router will forward those requests to the appropriate PC.

  • Page 29: Mac Filtering (Bridge Filters)

    SAR-600E ADSL Ethernet Router User Guide Figure 1-24 : Port Forwarding MAC Filtering (Bridge Filters) 5.5.13 The bridge filtering mechanism provides a way for the users to define rules to allow/deny frames through the bridge based on source MAC address, destination MAC address and/or frame type.

  • Page 30: Access Control

    SAR-600E ADSL Ethernet Router User Guide Figure 1-25 : MAC Filtering (Bridge Filters) Access Control 5.5.14 Access control allows you to open the access from the Internet LAN to the following management ports of the SAR-600E: • Telnet • Web •...

  • Page 31: Routing (Static Routing)

    SAR-600E ADSL Ethernet Router User Guide Figure 1-26 : Access Control Routing (Static Routing) 5.5.15 If the ADSL Router is connected to more than one network, you may need to set up a static route between them. A static route is a pre-defined pathway that network information must travel to reach a specific host or network.

  • Page 32: Dynamic Routing

    SAR-600E ADSL Ethernet Router User Guide Figure 1-27 : Static Routing Dynamic Routing 5.5.16 Dynamic Routing allows the ADSL Router to automatically adjust to physical changes in the network. The ADSL Router, using the RIP protocol, determines the network packets’ route based on the fewest number of hops between the source and the destination.

  • Page 33: System Password

    SAR-600E ADSL Ethernet Router User Guide Figure 1-28 : Dynamic Routing System Password 5.5.17 You can change your ADSL Router’s username and password by clicking on User Management. From here you can change the login name and password. You can also change the idle timeout;...

  • Page 34: Firmware Upgrade

    SAR-600E ADSL Ethernet Router User Guide Firmware Upgrade 5.5.18 You can upgrade the ADSL Router’s firmware, clicking on Update Gateway under the Tools page. To upgrade the firmware, click browse, find the firmware file to download. Make sure this is the correct file. Click on upgrade firmware. Once the upgrade is complete the ADSL Router will reboot.

  • Page 35: Restore To Default

    SAR-600E ADSL Ethernet Router User Guide Restore to Default 5.5.19 The restore to factory defaults feature will set the ADSL Router to its factory default configuration by resetting the ADSL Router. You may need to place the ADSL Router into its factory defaults if the configuration is changed, you loose the ability to interface to the ADSL Router via the web interface, or following a software upgrade,.

  • Page 36: Ip Filters

    SAR-600E ADSL Ethernet Router User Guide IP Filters 5.6.1 IP filter is identical to what Port blocking to Access Control. Fig 1-33 demonstrates that the router will block workstations with the IP in the defined range of 192.168.1.5 to 192.168.1.20 and port range from 2000 to 3000.

  • Page 37: Lan Isolation

    SAR-600E ADSL Ethernet Router User Guide LAN Isolation 5.6.2 Figure 1-34 : LAN Isolation LAN isolation allows you to disable the flow of packets between up to three-user-defined LAN groups (WLAN, Ethernet). This allows you to secure information in private portions of the LAN from other, publicly accessible LAN segments.

  • Page 38: Status

    SAR-600E ADSL Ethernet Router User Guide Status This status section allows users to view the following connections and interfaces: Connection Status • System Log • Remote Log • Network Statistics • DHCP Clients • Modem Status • Product Information •...

  • Page 39: System Log

    SAR-600E ADSL Ethernet Router User Guide Figure 1-36 : Connection Status System Log 5.7.2 You can display the ADSL Router’s log by going under the Status title, click on System log. From here you can view all logged information. Depending upon the severity level, this logged info will generate log reports to a remote host (if remote logging is enabled).

  • Page 40: Remote Log Settings

    SAR-600E ADSL Ethernet Router User Guide Remote Log Settings 5.7.3 This feature is for users to enable remote logging. Settings mentioned below are essential for this feature to work: Log Level • Adding / Deleting IP address • Logging destination •...

  • Page 41: Dhcp Clients

    SAR-600E ADSL Ethernet Router User Guide DHCP Clients 5.7.5 Shows the users connected. It also shows the MAC address, IP address, host name and lease time. Figure 1-40 : DHCP Clients Modem Status 5.7.6 This screen will display the Modem status and DSL statistics.

  • Page 42: Product Information

    SAR-600E ADSL Ethernet Router User Guide Product Information 5.7.7 This screen will show a summary of all the product information and software version that comes bundled with the ADSL Router. Figure 1-42 : Product Information Help The Help screen takes you to the different Help Sections for Firewall, Bridge Filters, LAN Clients, LAN Group Configurations, PPP Connection, UPnP, IP QoS and RIP Help.
