4. START UP

4.1. OPERATING MODES

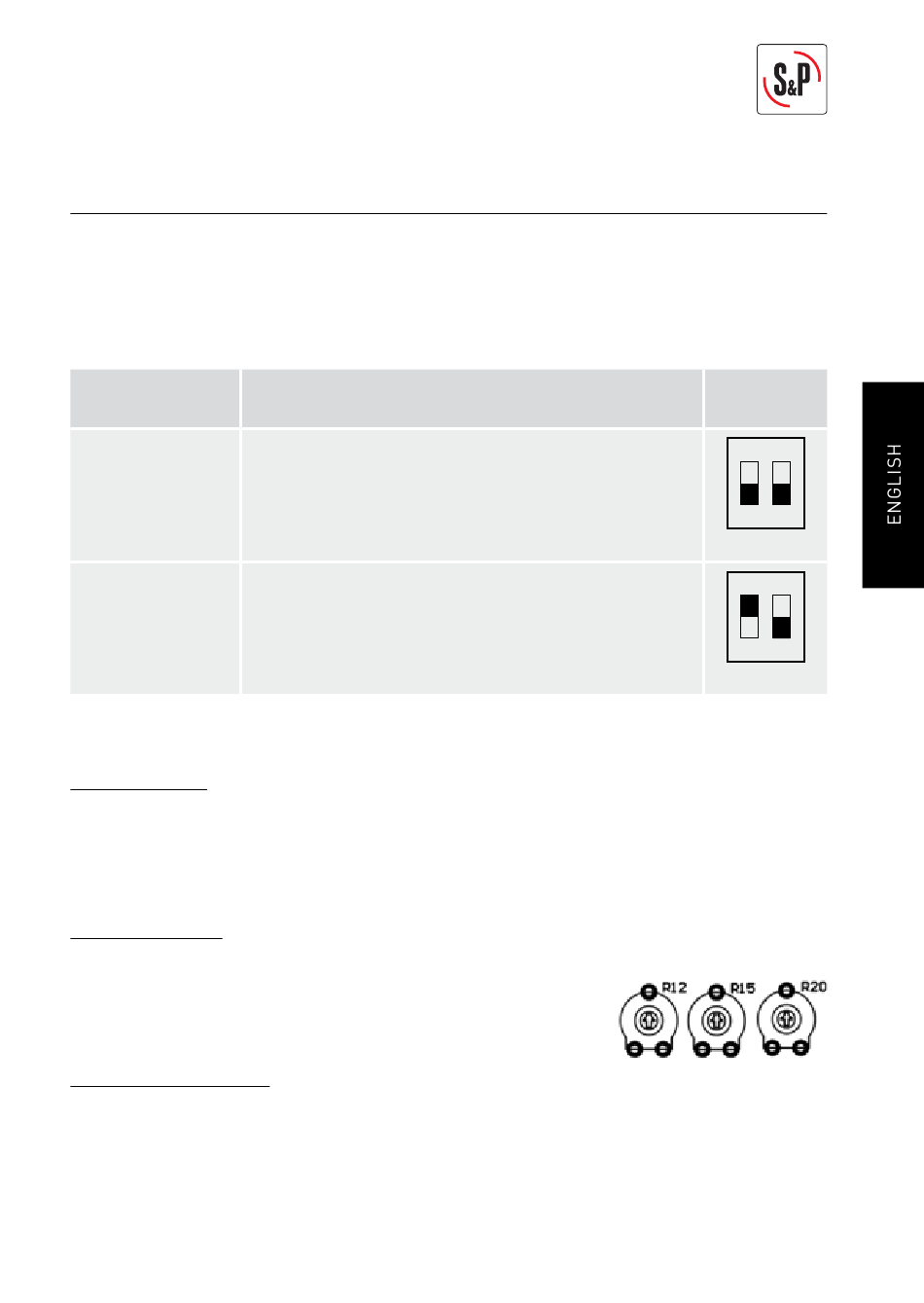

The operation mode is chosen by the micro switch S1.1.
Note: Micro switch S1.2. without function.
Operation
mode
1
2
Mode 1: ON/OFF remote + 2 speeds
Digital inputs
INPUT1:ON/OFF remote (Closed contact = ON / Opened contact = OFF)
INPUT2: Speed 1 activation (Closed contact = ON / Opened contact = OFF)
INPUT3: Speed 2 activation (Closed contact = ON / Opened contact = OFF)
Speed settings
Two available speeds are adjusted by each potentiometer.
INPUT2 / Speed 1: Potentiometer R15 0-100%/0-10V
INPUT3 / Speed 2: Potentiometer R20 0-100%/0-10V
Output signal OUT1
If control is in ON status using INPUT1, output signal always take the worst
between adjustments for INPUT2 and INPUT3 values.
Description
ON/OFF remote + 2 adjustable speeds
Up to three adjustable speeds
S1.1.
ON
1 2
S1
ON
1 2
S1
