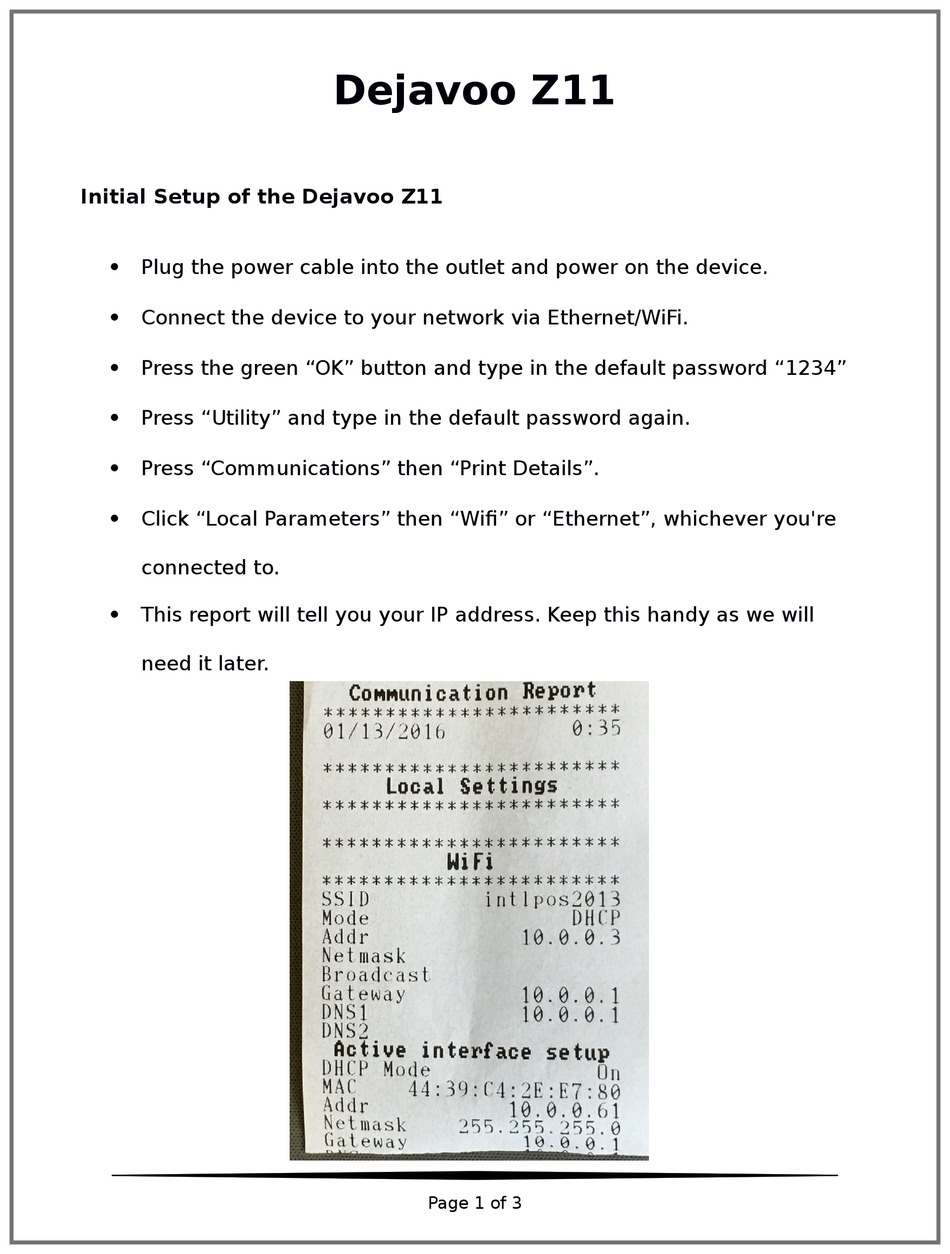

Initial Setup of the Dejavoo Z11

Plug the power cable into the outlet and power on the device.



Connect the device to your network via Ethernet/WiFi.



Press the green "OK" button and type in the default password "1234"



Press "Utility" and type in the default password again.



Press "Communications" then "Print Details".



Click "Local Parameters" then "Wifi" or "Ethernet", whichever you're



connected to.

This report will tell you your IP address. Keep this handy as we will



need it later.

Dejavoo Z11

Page 1 of 3

Table of Contents

Need help?

Do you have a question about the Z11 and is the answer not in the manual?

Page 1 Dejavoo Z11 Initial Setup of the Dejavoo Z11 Plug the power cable into the outlet and power on the device.  Connect the device to your network via Ethernet/WiFi.  Press the green “OK” button and type in the default password “1234”...
Page 2 Once completed, hit the back button on your tablet until you are  back at the initial settings screen. Select “Payment Device Setup”, then select “Dejavoo V8s”.  Enter the IP address that printed out earlier, and type 8443 for ...
Page 3 Enter your login information and password.  If you need help finding your login and password you can contact  Dejavoo You will also receive daily emails on batch close with you  registered email address. Page 3 of 3...
