DMP Electronics 1117 Installation Manual

1117 WIRELESS LED
ANNUNCIATOR
Installation Guide

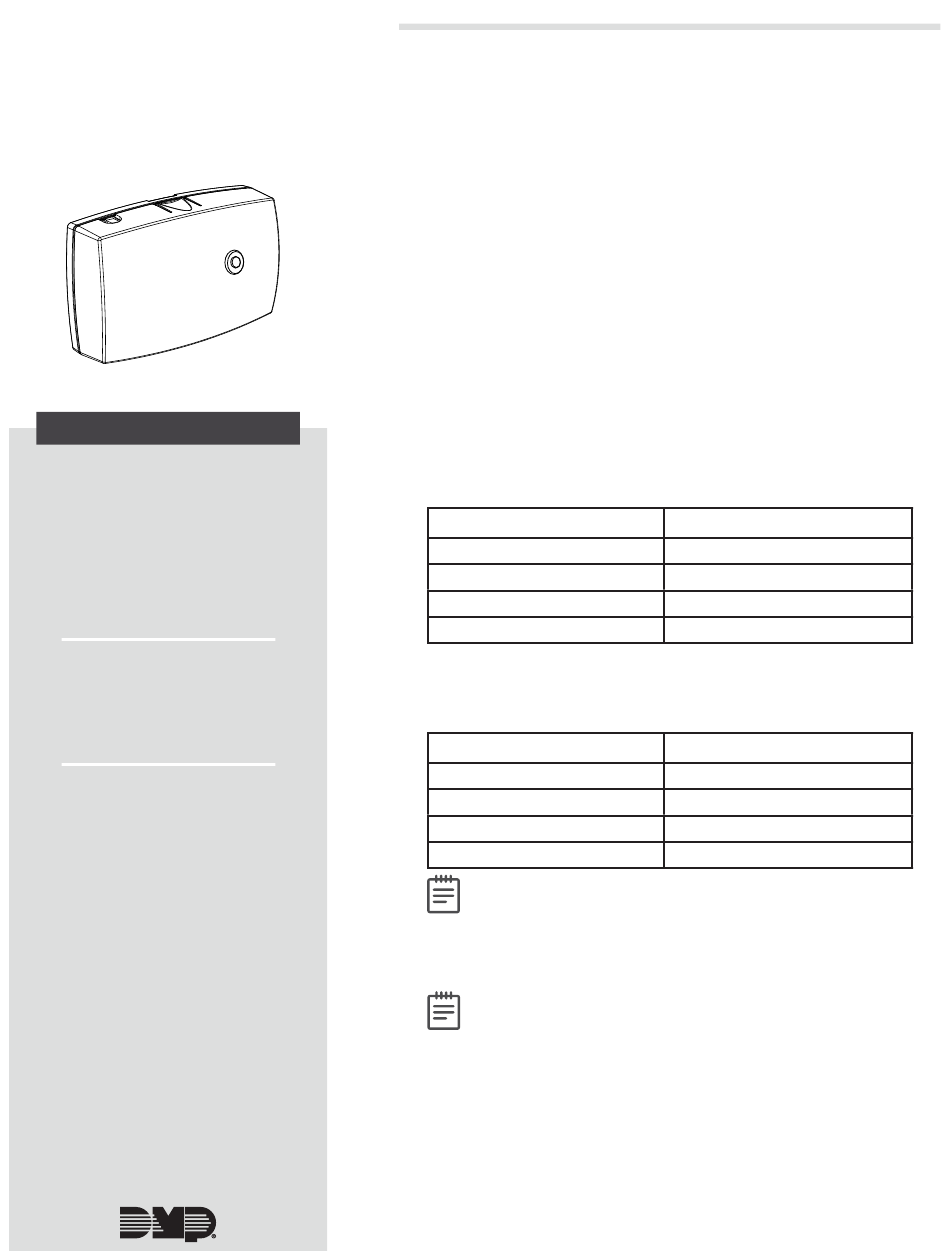

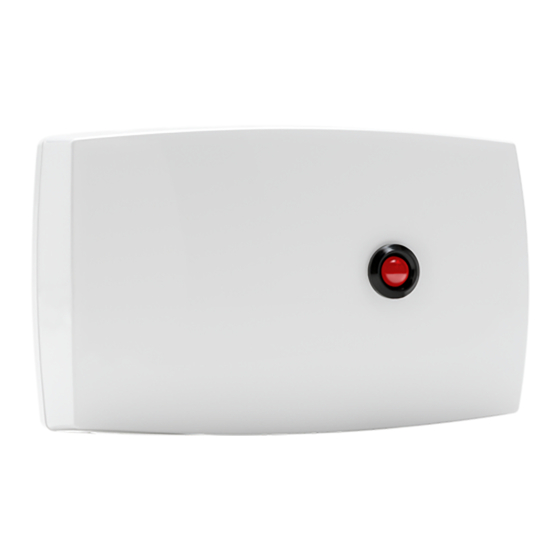

Figure 1: 1117 Wireless LED
Annunciator
DESCRIPTION
The 1117 Wireless LED Annunciator
provides a remote red LED for
visual indication of system status.
The 1117 can be programmed for
nearly any panel output option and
can respond to conditions such as
armed area annunciation, ambush
alarm, burglary alarm, exit timer,
entry timer, schedules, or
communication failure.
Compatibility
All DMP 1100 Series Panels
Wireless Receivers v104 and higher
What is Included?
• 1117 Wireless LED Annunciator
• 3 V Lithium CR123A battery
• Hardware pack
1
PROGRAM THE PANEL
Program the 1117 in Output Options as an Arm-Alarm Output.
Refer to the panel programming guide as needed.
1. In OUTPUT INFO, enter the OUTPUT number.
2. Enter the OUTPUT NAME.
Enter the eight-digit SERIAL# and press CMD.
3.
Enter the SUPRVSN TIME and press CMD.
4.
5. Press the back arrow when OUTPUT SETUP displays.
6. Press CMD until STOP displays and then press any select
area to save and exit programming.
Program Slow Response
Use the following output numbers to indicate whether the wireless
device responds within 15 seconds to trip the output (slow
response).
Panel
XTLplus (LT-1434)
XTLtouch (LT-1789)
XR150/XR550 (LT-1232)
XT30/XT50 (LT-0981)
Program Fast Response
Use the following output numbers to indicate whether the wireless
device responds within 1 second to trip the output (fast response).
Panel
XTLplus (LT-1434)
XTLtouch (LT-1789)
XR150/XR550 (LT-1232)
XT30/XT50 (LT-0981)
Note: Supervision time is reset under the following
circumstances:
• A receiver is installed, powered down, and powered up.
• The panel is reset.
• Programming is complete.
Note: If the receiver has been powered down for more than
one hour, the 1117 may take up to an additional hour to send
a supervision message unless tripped, tampered, or powered
up. This operation extends battery life. A missing message
may display on the keypad until the supervision message is
sent.
Output numbers
51-54
51-54
450-474
31-34
Output numbers
61-64
61-64
480-499
41-44
