DMP Electronics 1115 Installation Manual

1115 WIRELESS TEMPERATURE
SENSOR AND FLOOD DETECTOR
Installation Guide

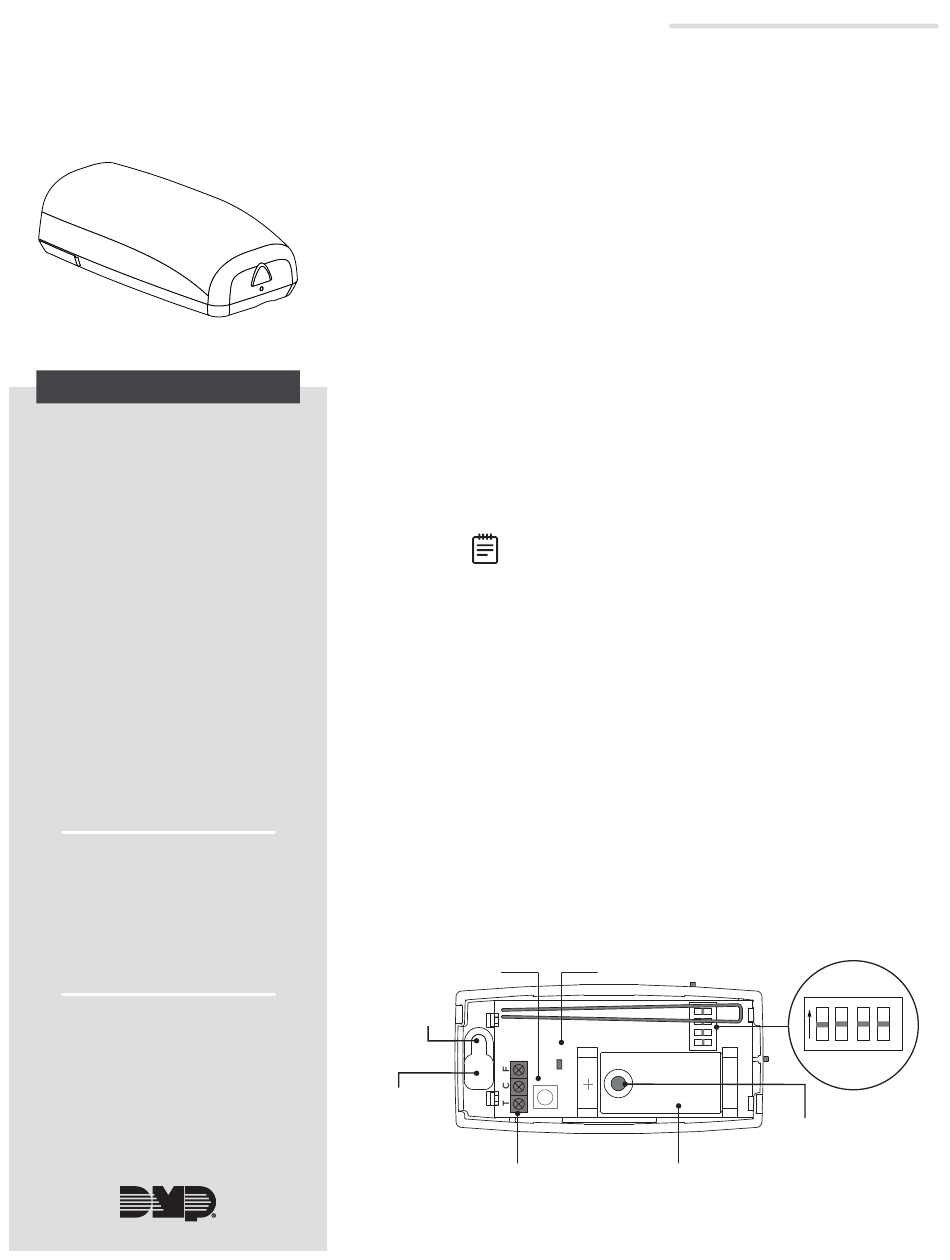

Figure 1: 1115 Transmitter
DESCRIPTION
The 1115 Wireless Temperature
Sensor and Flood Detector is
designed to protect areas from
temperature fluctuations and
flooding.
The transmitter has an internal
temperature sensor that detects
cold, hot, or warm temperature
ranges. When combined with
the remote T280R temperature
probe, the transmitter can be
set to monitor temperatures in
refrigerators and freezers.
The transmitter can also be paired
with the remote 470PB water
sensor probe to be used for flood
detection.
The transmitter can be
programmed with up to four zones
for temperature sensing, flood
detection, or both.
Compatibility
• All DMP XR Series panels
and all 1100 Series Wireless
Receivers. For details, refer to
"Compatibility".
What is Included?
• One 1115 Transmitter
• One 3 V lithium CR123 battery
• One 2M Ohm EOL resistor
• Hardware pack
1

PROGRAM THE PANEL

The 1115 can be programmed with up to four zones. Refer to the
panel programming guide as needed. After completing each of the
following steps, press CMD to advance to the next prompt.
At a keypad, enter 6653 (PROG) to access the Programmer
1.
Menu.
2. At ZONE INFORMATION, enter the wireless zone number.
1115 zones must be programmed sequentially. For example,
program the first zone as 71 and the next zone as 72.
3. At *UNUSED*, enter the zone name.
4. At ZONE TYPE, press any select key or area and select SV
(Supervisory) as the zone type.
At the NEXT ZN? prompt, select NO.
5.
6. When WIRELESS? displays, select YES.
7. At SERIAL#, enter the eight‑digit device serial number.
8. At CONTACT, enter the contact number.
Note: Refer to Table 1 to select the correct contact. For
the tamper feature to be enabled, contact 1 must be
programmed as a zone in the panel.
At SUPRVSN TIME, enter a supervision time. Default is 240.
9.
10. At the NEXT ZN? prompt, select YES if you are finished
programming the zone. Select NO if you would like to access
additional programming options.
11. To save panel programming, go to STOP and press CMD.
2

INSTALL THE BATTERY

Use only 3.0 V lithium batteries, DMP Model CR123, or the
equivalent battery from a local retail outlet. Keep in mind, when
setting up a wireless system, program zones and connect the
receiver before installing batteries in the transmitters.
Push the button on the end of the transmitter and separate the
two halves. Observing polarity, place the battery in the holder
and press it into place. Refer to Figure 2 during installation.
Tamper
Switch
Optional
Mounting Hole
Wire Opening
Terminal
Block
Figure 2: Transmitter Components
Survey
LED
Mounting
Battery
DIP
Switches
ON
1 2 3 4
OFF
Hole
