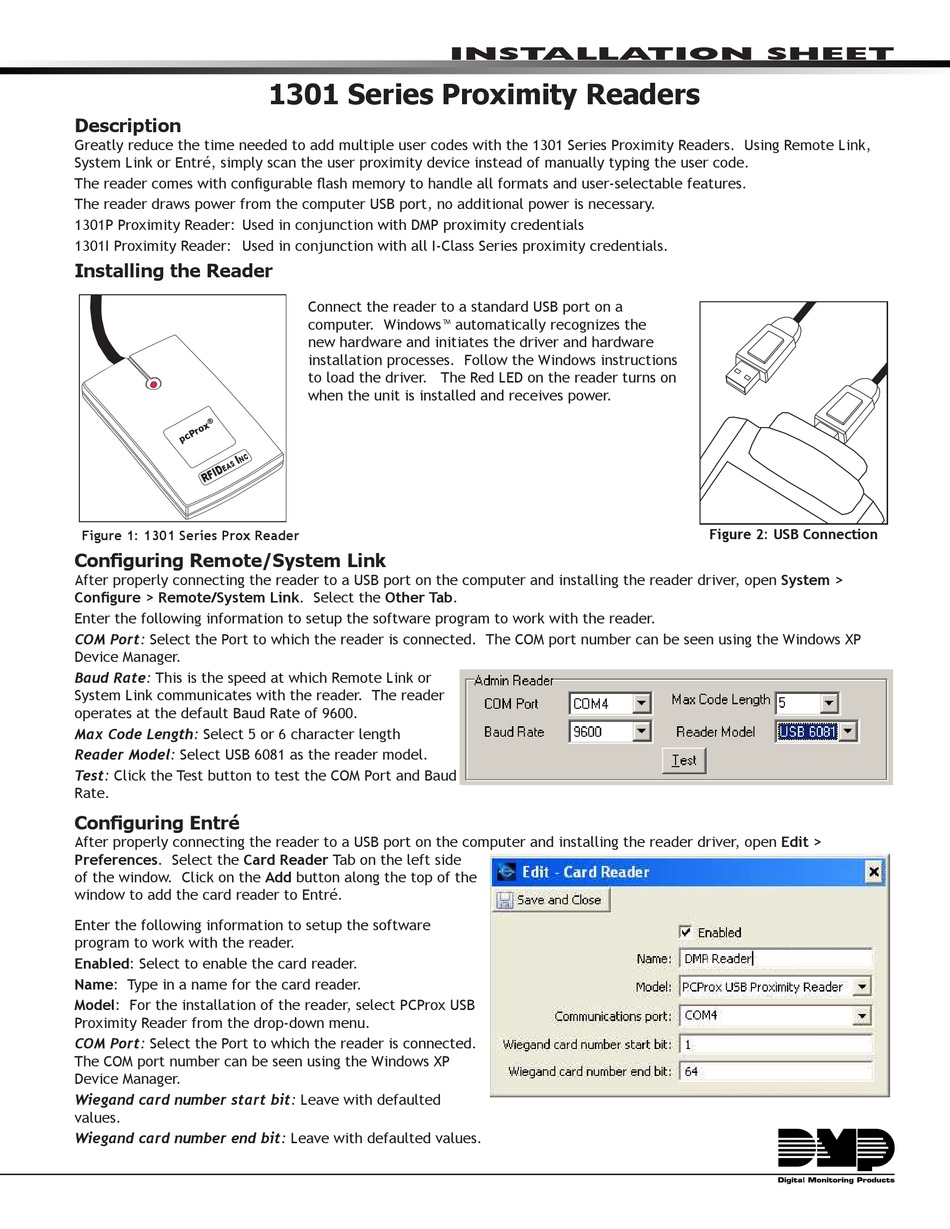

Description
Greatly reduce the time needed to add multiple user codes with the 1301 Series Proximity Readers. Using Remote Link,
System Link or Entré, simply scan the user proximity device instead of manually typing the user code.
The reader comes with configurable flash memory to handle all formats and user-selectable features.
The reader draws power from the computer USB port, no additional power is necessary.
1301P Proximity Reader: Used in conjunction with DMP proximity credentials
1301I Proximity Reader: Used in conjunction with all I-Class Series proximity credentials.
Installing the Reader
Figure 1: 1301 Series Prox Reader
Configuring Remote/System Link
After properly connecting the reader to a USB port on the computer and installing the reader driver, open System >
Configure > Remote/System Link. Select the Other Tab.
Enter the following information to setup the software program to work with the reader.
COM Port: Select the Port to which the reader is connected. The COM port number can be seen using the Windows XP
Device Manager.
Baud Rate: This is the speed at which Remote Link or
System Link communicates with the reader. The reader
operates at the default Baud Rate of 9600.
Max Code Length: Select 5 or 6 character length
Reader Model: Select USB 6081 as the reader model.
Test: Click the Test button to test the COM Port and Baud
Rate.
Configuring Entré
After properly connecting the reader to a USB port on the computer and installing the reader driver, open Edit >
Preferences. Select the Card Reader Tab on the left side
of the window. Click on the Add button along the top of the
window to add the card reader to Entré.
Enter the following information to setup the software
program to work with the reader.
Enabled: Select to enable the card reader.
Name: Type in a name for the card reader.
Model: For the installation of the reader, select PCProx USB
Proximity Reader from the drop-down menu.
COM Port: Select the Port to which the reader is connected.
The COM port number can be seen using the Windows XP
Device Manager.
Wiegand card number start bit: Leave with defaulted
values.
Wiegand card number end bit: Leave with defaulted values.
1301 Series Proximity Readers
Connect the reader to a standard USB port on a
computer. Windows™ automatically recognizes the
new hardware and initiates the driver and hardware
installation processes. Follow the Windows instructions
to load the driver. The Red LED on the reader turns on
when the unit is installed and receives power.
Inst alla tIon sheet
Figure 2: USB Connection
Advertisement
Table of Contents
Related Manuals for DMP Electronics 1301 Series
Summary of Contents for DMP Electronics 1301 Series
- Page 1 1301 Series Proximity Readers Description Greatly reduce the time needed to add multiple user codes with the 1301 Series Proximity Readers. Using Remote Link, System Link or Entré, simply scan the user proximity device instead of manually typing the user code.
- Page 2 Using the Reader with Remote Link Open File > Panel Information to select the panel for connection from the list in the Panel Information window. Click Ok to open that panel. Open Program > User Codes. To add a new user, click the New button and enter all of the user information. Click the Scan Card button at any time while entering user information to scan in the user code number from a proximity device.
