Bloomfield HW-106D Installation Instructions

Built-in food warmer
Hide thumbs Also See for HW-106D:

Advertisement

Quick Links

ELECTRICAL
MODEL
VOLTS
HW-106D
120
HW-106D
208
HW-106D
240

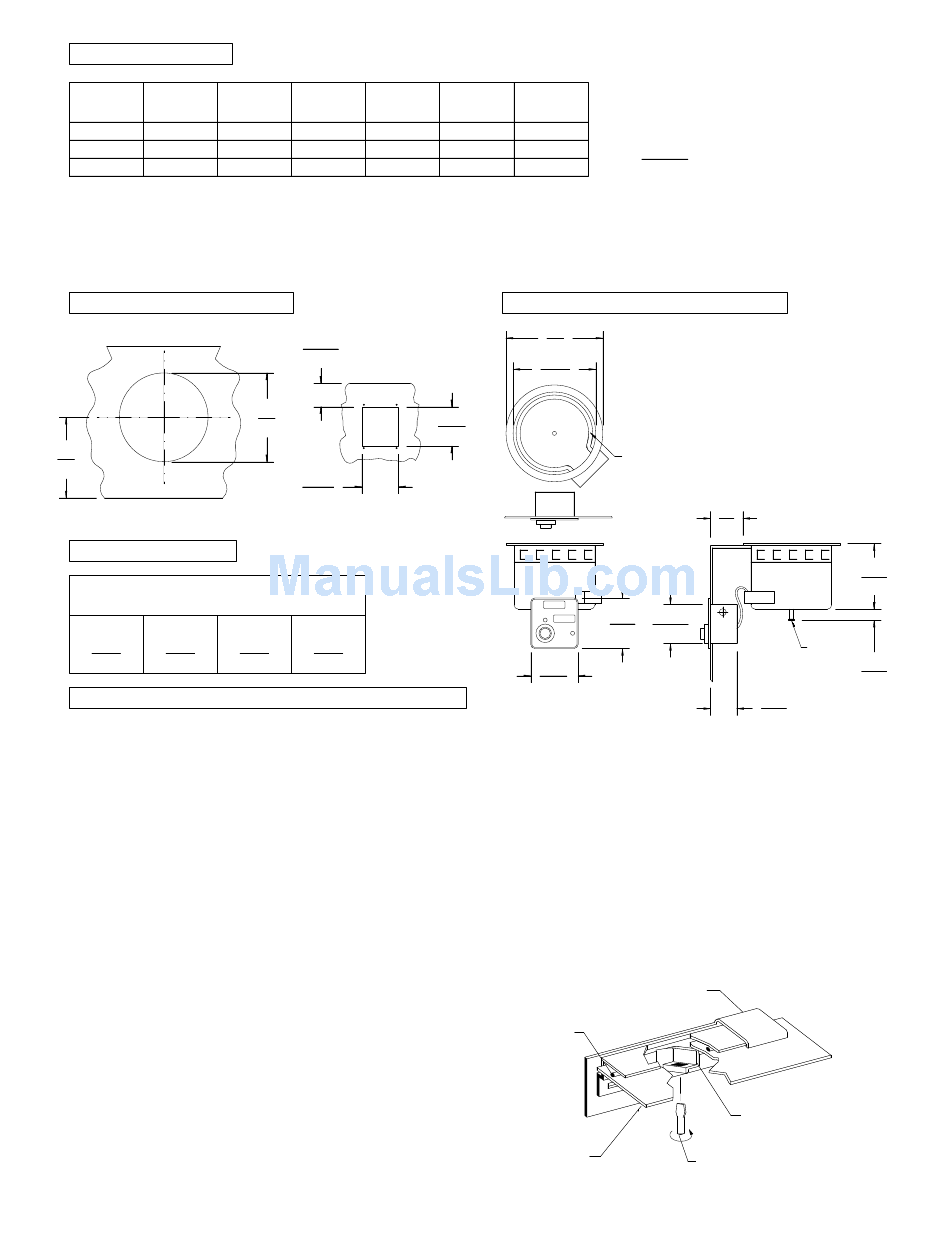

CUTOUT DETAILS
10
(254)
TOP CUTOUT
CLEARANCES
MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE
BACK
SIDE
BOTTOM
3
3
(76)
(76)

INSTALLATION INSTRUCTIONS

INSTALLER MUST MEET CONDITIONS OF ACCEPTABILITY
OUTLINED BELOW UPON INSTALLATION:
1. Required installation clearances:
Wooden and Metal Installation: DO NOT install closer than
4 1/8 inches to front wall, 3 inch to back and side walls,
and 1 inch to a surface below the unit. If the control
box is located below the unit, the front clearance may be
1 inch.
2. Unit shall be accessible for servicing from the bottom.
3. If storage is to be used underneath the unit, it is
recommended that a baffle be placed 8 1/2 inches below
the unit to avoid contact with elevated temperatures.
TO FABRICATE:
1. Lay out "cutout" dimensions on countertop and front
apron.
2. Lay out and fabricate control panel holes in counter
apron using the control box as a template.
3. Cut out holes.
TO INSTALL:
IMPORTANT - DO NOT disconnect lead wires from the Master
Control Panel when making installation.
1. Tilt and pass Control Panel and electrical box through
the countertop cutout, then through the apron cutout.
Lower modular section into countertop cutout and position.
RECOMMENDATION: Before final seating of modular section
to countertop, apply a bead of silicone adhesive/sealant
to the underside of gray gasket material supplied on the
mounting flange.
2. From underneath, insert screwdriver into slots in
Wellslock frame and twist ears outward (clockwise) as
required to secure flange tightly to countertop.
3. Mount Control Box to apron cutout as shown in drawing.
4. Mount Control Panel onto electrical box using the screws
supplied.
WATTS
AMPS
PHASE
1650
13.8
SINGLE
1240
6.0
SINGLE
1650
6.9
SINGLE
2 15/16
(75)
11
(279)
4 9/16
(116)
FRONT PANEL CUTOUT
FRONT
1
4
(25)
(102)
WELLS/BLOOMFIELD * VERDI, NV
FIELD
TEMP.
WIRING
RATING
GAUGE
14 AWB Cu
90°C
14 AWB Cu
90°C
14 AWB Cu
90°C
PRODUCT DIMENSIONS
12
(305)
10 1/4
(260)
4 7/8
(124)
6 1/4
(159)
5 7/8
(149)
TO PLUMB:
1. Warmers with a 'D' suffix are supplied with individual
1/2" female N.P.T. drains.
2. Connect to sutable drain line.
TO WIRE:
1. Final connection is accomplished by bringing proper
power supply leads (see 'WIRING REQUIREMENTS' label)
through conduit knockout to terminal block supplied within
the Master Control Panel. Check nameplates for voltage
and phase.
2. DO NOT connect to a circuit operating at more than 150
volts to ground (240 volt models only).
NOTE: INSTALLATION MUST MEET LOCAL PLUMBING AND
ELECTRICAL CODES.
GASKET
COUNTERTOP
INSTALLATION INSTRUCTIONS
BUILT-IN FOOD WARMER
INCHES
(MM)
IMMERSION
HEATING
ELEMENT
4
(102)
4 13/16
(122)
3 1/4
(83)
WARMER FLANGE
WELLSLOK
SCREWDRIVER
37210-1 REV (A)
MODEL HW-106D
8 1/8
(206)
1/2 NPT
DRAIN
1 3/8
(35)
