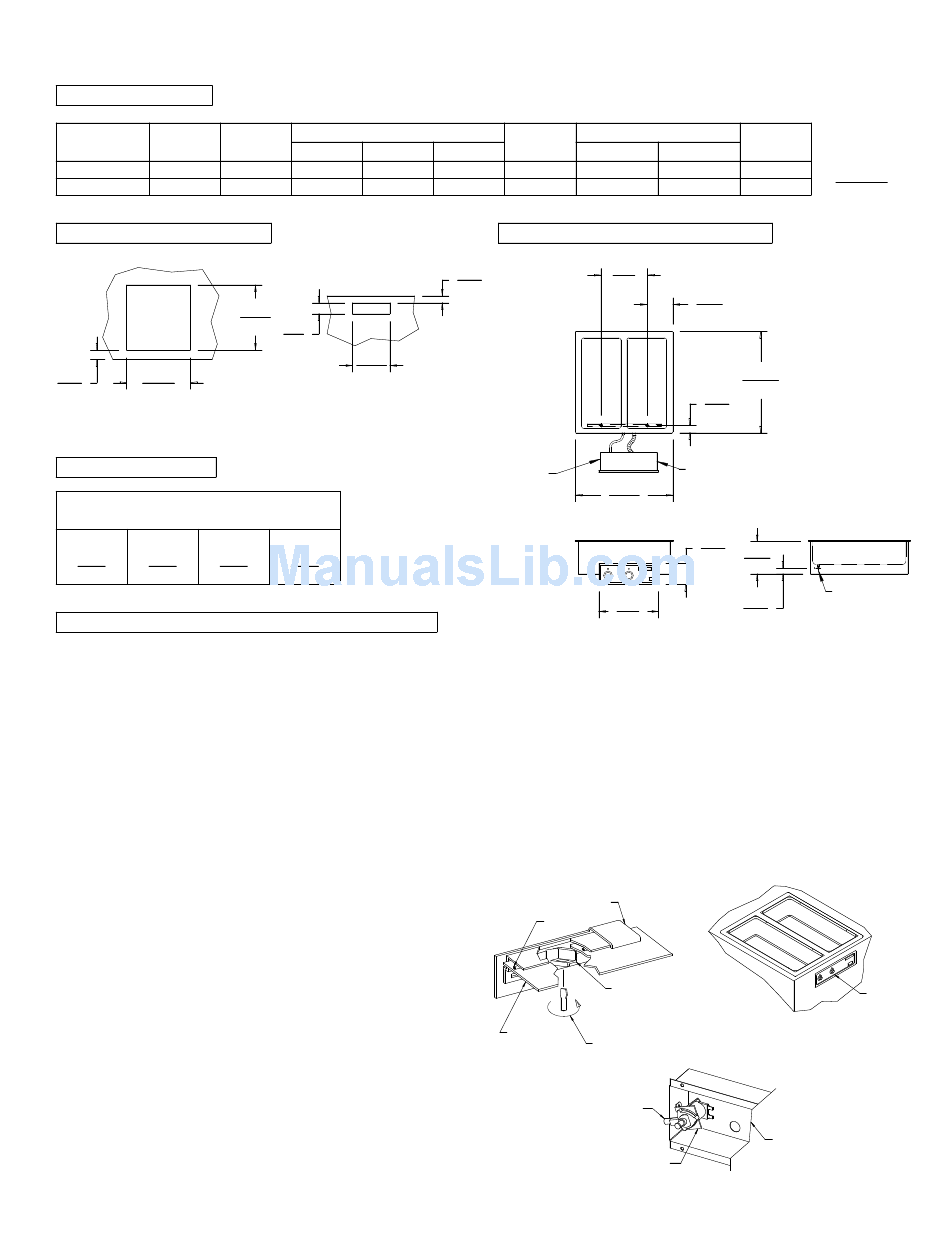

Bloomfield MOD-227TDMAF Installation Instructions

ELECTRICAL
MODEL VOLTS
MOD-227TDM 208
MOD-227TDM 240

CUTOUT DETAILS

4 1/8 28 3/4
(105) (730)
TOP CUTOUT

CLEARANCES

MINIMUM CLEARANCE REQUIRED
UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM
1 1 6 3/4
(25) (25) (171)
INSTALLATION INSTRUCTIONS
NOTE: MOD-227TDM/AF UNITS ARE SHIPPED THREE PHASE
AND ARE FIELD CONVERTIBLE TO SINGLE PHASE. THE
DRAIN MANIFOLD WITH 1 INCH INTERNAL FPT IS SUPPLIED
WITH THE UNIT.
INSTALLER MUST MEET CONDITIONS OF ACCEPTABILITY
OUTLINED BELOW UPON INSTALLATION:
1. Required Installation Clearances:
Wooden and Metal Installation: DO NOT install closer than
4 1/8 inches to front wall, 1 inch to back and side walls,
and 6 3/4 inches to surface below the unit.
2. Unit shall be accessible for servicing from the bottom.
3. If storage is to be used underneath the unit, it is
recommended that a baffle be placed 8 1/2 inches below
the unit to avoid contact with elevated temperatures.

TO FABRICATE:

1. Lay out "cutout" dimensions on countertop and front
apron.
2. Lay out and fabricate control panel holes in counter
apron using the control box as a template.
3. Cut out holes.

TO INSTALL:

IMPORTANT - DO NOT disconnect lead wires from the
Master Control Panel when making installation.
1. Tilt and pass Control Panel and electrical box through
the countertop cutout, then through the apron cutout.
Lower modular section into countertop cutout and position.
RECOMMENDATION: Before final seating of modular section
to countertop, apply a bead of silicone adhesive/sealant to
the supplied gray gasket material on the underside of the
mounting flange.
2. From underneath, insert screwdriver into slots in the
Wellslock frame and twist the ears outward (clockwise) as
required to secure flange tightly to countertop.
3. Mount Control Box to apron cutout as shown in drawing.
4. Mount Control Panel onto the electrical box using the
screws supplied.
5. Remove any excess gasket or sealant material from the
outer flange.
AMPS PER LINE 3 PHASE
WATTS
L1 L2
2480 6.0 6.0
3300 6.9 6.9
29 1/2
(749)
5
(127)
16 7/8
(429)
FRONT PANEL
CUTOUT
FRONT
4 1/8
(105)
WELLS/BLOOMFIELD * VERDI, NV
AMPS
FIELD WIRING GAUGE
SINGLE
L3 3 PHASE
PHASE
10.3 11.9 12 AWB Cu
11.9 13.8 12 AWB Cu

PRODUCT DIMENSIONS

14
3 1/8
(356)
(79)
1/4'' FPT
WATER LINE
29 1/2
CONNECTION
(749)
18
(457)

TO PLUMB:

1. A drain manifold complete with valve is supplied on all Model
'TDM' units. Location of valve handle is at the discretion of the
fabricator (see drawing).
2. Connect 1'' drain connection to a suitable drain line.
3. Connect 1/4 NPT water supply to the Solenoid valve in the
Outlet Box. NOTE: Maximum water pressure is 120 psi and
maximum temperature is 120°F. A backflow prevention valve is
installed in the water fill system. Check local codes for any
additional plumbing requirements.

TO WIRE:

1. Final connection is accomplished by bringing proper power
supply leads (see 'WIRING REQUIREMENTS label') through 1''
conduit knockout to terminal block supplied within the Master
Control Panel. Check nameplates for voltage and phase.
NOTE: INSTALLATION MUST MEET LOCAL PLUMBING AND
ELECTRICAL CODES.
FLANGE
GASKET
WELLSLOK
COUNTERTOP
SCREWDRIVER
WATER SUPPLY
1/4 NPT
SOLENOID
INSTALLATION INSTRUCTIONS
BUILT-IN MODULAR WARMERS
WITH AUTO WATER FILL
MOD 227TDM/AF
TEMP.
RATING
1 PHASE
12 AWB Cu 75°C
INCHES
12 AWB Cu 75°C
(MM)
7 3/4
(197)
30 9/16
(776)
2 1/4
(57)
1'' CONDUIT
CONNECTION
6 1/4
9 3/4
(159)
(248)
1'' FPT
1 3/4
EACH END
(44)
OF MANIFOLD
IMPORTANT:
MOUNT APPLIANCE SO THAT THE
CONTROL PANEL IS LOCATED TO
THE FRONT OF THE FIXTURE.
OUTLET BOX
300748-1 REV (-)
MASTER
CONTROL
PANEL
