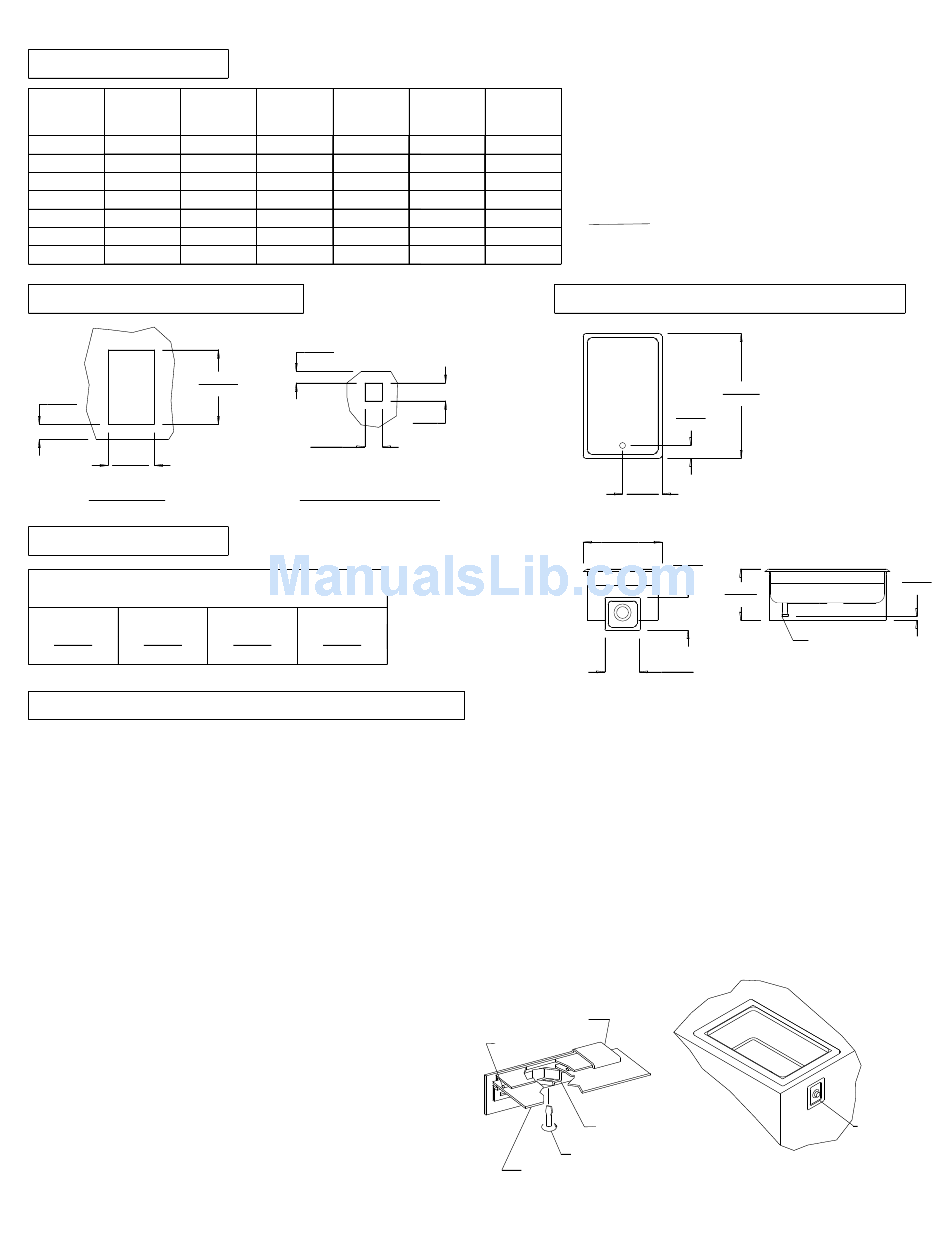

Bloomfield MOD-100 Installation Instructions

ELECTRICAL
MODELS VOLTS WATTS
MOD-100 120 1200
MOD-100 208
MOD-100 240 1200
MOD-100T 120 1650
MOD-100T 208 1240
MOD-100T 240 1650
MOD-100EUT 220-240 1650
ALL MODELS WITH A "D" SUFFIX HAVE THE SAME ELECTRICAL SPECIFICATIONS AS THE STANDARD MOD-100 AND MOD-100T MODELS
CUTOUT DETAILS
20 3/4
(527)
4 1/8
(105)
12 3/4
(324)
TOP CUTOUT
CLEARANCES
MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE.
BACK SIDE
1 1
(25) (25)
INSTALLATION INSTRUCTIONS
INSTALLER MUST MEET CONDITIONS OF ACCEPTABILITY
OUTLINED BELOW UPON INSTALLATION:
1. Required Installation Clearances:
Wooden and Metal Installation: DO NOT install closer than
4 1/8 inches to front wall, 1 inch to back and side walls,
and 6 3/4 inches to a surface below the unit. If the
control box is located below the unit, the front clearance
may be 1 inch.
2. Unit shall be accessible for servicing from the bottom.
3. If storage is to be used underneath the unit, it is
recommended that a baffle be placed 8 1/2 inches below
the unit to avoid contact with elevated temperatures.
TO FABRICATE:
1. Layout "cutout" dimensions on countertop and front
apron.
2. Layout and fabricate control panel holes in counter
apron using the control box as a template.
3. Cut out holes.
4. Unit shall be accessible for servicing from the bottom.
TO INSTALL:
IMPORTANT - DO NOT disconnect "lead wires" from the
Master Control Panel when making installation.
1. Tilt and pass Control Panel and electrical box through
the countertop cutout, then through the apron cutout.
Lower modular section into countertop cutout and position.
RECOMMENDATION: Before final seating of modular section
to countertop, apply a bead of silicone adhesive/sealant
to underside of gray gasket material supplied on the
mounting flange.
2. From underneath, insert screwdriver into "slots" in
Wellslok frame and twist "ears" outward (clockwise) as
required to secure flange tightly to countertop.
3. Mount Control Box to apron cutout as shown in
drawing.
AMPS PHASE
10.0 SINGLE
900 4.3 SINGLE
5.0 SINGLE
13.8 SINGLE
6.0 SINGLE
6.9 SINGLE
6.9 SINGLE
3 1/8
(79)
4 7/8
(124)
FRONT PANEL CUTOUT
BOTTOM FRONT
6 3/4 4 1/8
(171) (105)
FIELD
TEMP.
WIRING
RATING
GAUGE
14 AWB Cu 90°C
12 AWB Cu 75°C
12 AWB Cu 75°C
14 AWB Cu 90°C
12 AWB Cu 75°C
12 AWB Cu 75°C
1.5 mm 2 90°C
5
(127)
4. Mount Control Panel onto electrical box using the screws
supplied.
TO PLUMB:
1. Warmers with a 'D' suffix are supplied with individual 1/2''
female N.P.T. drains.
2. Connect to suitable drain line.
TO WIRE:
1. Final connection is accomplished by bringing proper power
supply leads (see 'wiring requirements' label) through conduit
knockout to wire leads supplied within the Master Control
Panel. Check nameplates for voltage and phase.
2. Do not connect to a circuit operating at more than 150
volts to ground. (240 volt models only).
NOTE: INSTALLATION MUST MEET LOCAL PLUMBING AND
ELECTRICAL CODES.
WARMER FLANGE
GASKET
SCREWDRIVER
COUNTERTOP
WELLS/BLOOMFIELD * VERDI, NV
INSTALLATION INSTRUCTIONS
BUILT-IN MODULAR WARMERS
MOD-100 SERIES (T, TD)
INCHES
(MM)

PRODUCT DIMENSIONS

21 3/4
(552)
2 1/4
(57)
6 7/8
(175)
13 3/4
(349)
6 1/4
(159)
9 3/4
(248)
5 7/8
(149)
WELLSLOK
IMPORTANT:
MOUNT APPLIANCE SO THAT THE
CONTROL PANEL IS LOCATED TO
THE FRONT OF THE FIXTURE.
1 3/4
(44)
1/2 INCH
INTERNAL N.P.T.
'D' MODELS ONLY
MASTER
CONTROL
PANEL
37099-1 REV (-)
