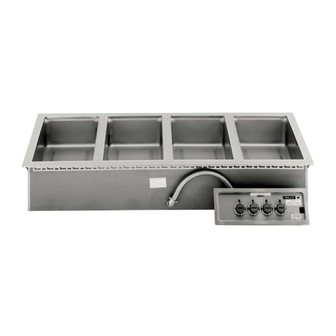

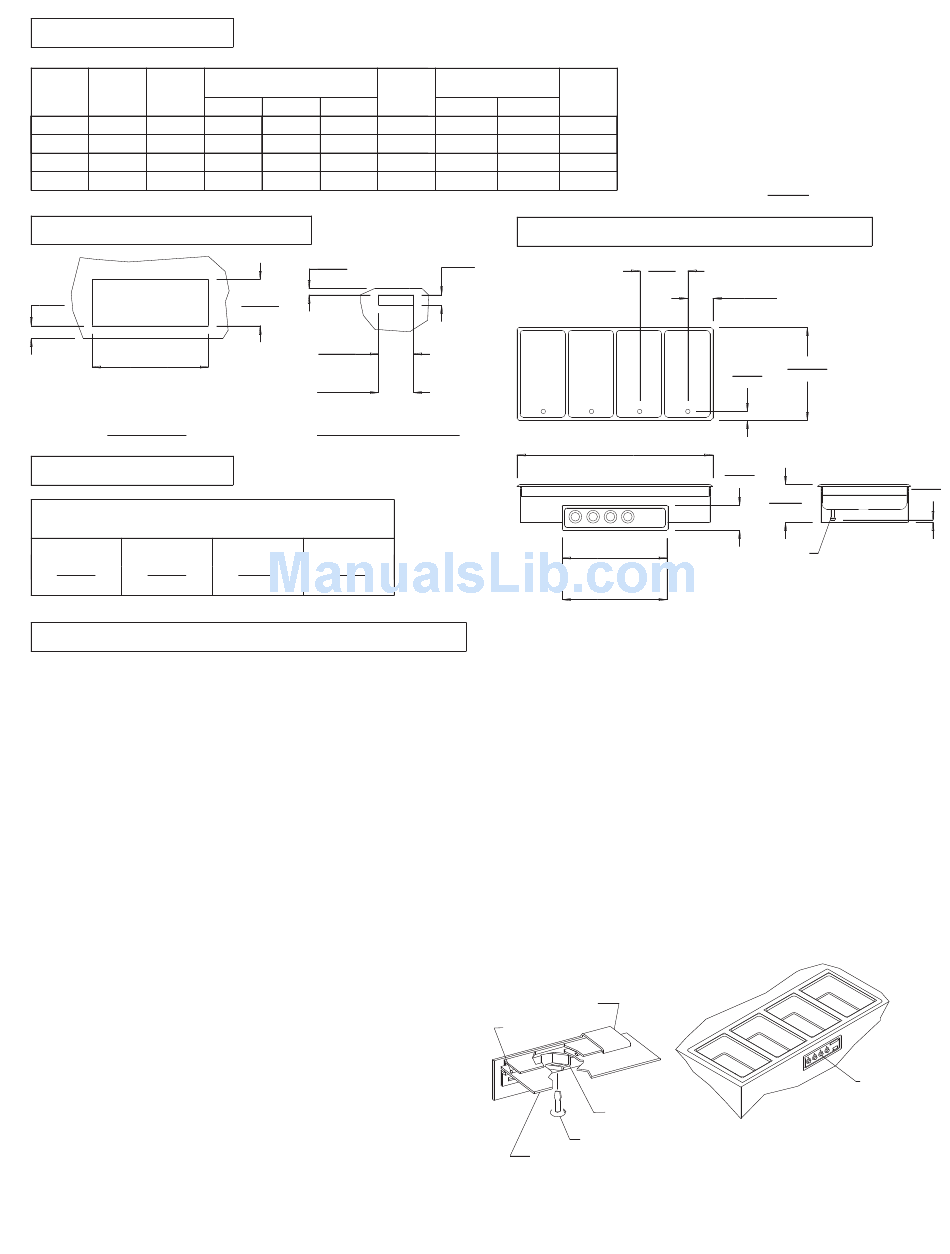

Bloomfield MOD-400 Installation Instructions

ELECTRICAL
MODELS VOLTS WATTS
MOD-400 208 3600
MOD-400 240 4800
MOD-400T 208 4960
MOD-400T 240 6600
ALL MODELS WITH A 'D' OR 'DM' SUFFIX HAVE THE SAME ELECTRICAL
CUTOUT DETAILS
6
(152)
56 1/2
(1435)
TOP CUTOUT
CLEARANCES
MINIMUM CLEARANCE REQUIRED FROM
UNITS TO THE NEAREST SURFACE
BACK SIDE
1 1
(25) (25)

INSTALLATION INSTRUCTIONS

NOTE: MOD-400 UNITS ARE SHIPPED THREE PHASE AND
ARE FIELD CONVERTIBLE TO SINGLE PHASE. THE DRAIN
MANIFOLD WITH 1" INTERNAL NPT VALVE IS SUPPLIED
FOR DM AND TDM MODELS ONLY.
INSTALLER MUST MEET CONDITIONS OF ACCEPTABILITY
OUTLINED BELOW UPON INSTALLATION:
1. Required Installation Clearances:
Wooden and Metal Installation: DO NOT install closer than
6 inches to front wall, 1 inch to back and side walls, and
6 3/4 inches to a surface below the unit.
2. Unit shall be accessible for servicing from the bottom.
3. If storage is to be used underneath the unit, it is
recommended that a baffle be placed 8 1/2 inches below
the unit to avoid contact with elevated temperatures.
TO FABRICATE:
1. Layout "cutout" dimensions on countertop and front
apron.
2. Layout and fabricate control panel holes in counter
apron using the control box as a template.
3. Cut out holes.
4. Unit shall be accessible for servicing from the bottom.
TO INSTALL:
IMPORTANT - DO NOT disconnect "lead wires" from the
Master Control Panel when making installation.
1. Tilt and pass Control Panel and electrical box through
countertop cutout, then through apron cutout. Lower
modular section into countertop cutout and position.
RECOMMENDATION: Before final seating of modular section
to countertop, apply a bead of silicone adhesive/sealant
to underside of gray gasket material supplied on mounting
flange.
2. From underneath, insert screwdriver into "slots" in
Wellslok frame and twist "ears" outward (clockwise) as
required to secure flange tightly to countertop.
3. Mount Control Box to apron cutout as shown in drawing.
AMPS PER LINE 3 PHASE AMPS
SINGLE
L1 L2 L3
PHASE
11.2 11.2 7.5
17.3
13.0 13.0 8.7
20.0
14.5 14.5 9.8
23.8
17.8 17.8 11.3
27.5
SPECIFICATIONS AS THE STANDARD
3 1/8
(79)
22 1/2
(572)
16 7/8
(430)
33 7/8
'T' MODELS
(860)
FRONT PANEL CUTOUT
BOTTOM FRONT
6 3/4 6
(171) (152)
FIELD WIRING GAUGE
TEMP.
RATING
3 PHASE 1 PHASE
12 AWB Cu
10 AWB Cu 75°C
12 AWB Cu
10 AWB Cu 75°C
8 AWB Cu
12 AWB Cu 75°C
12 AWB Cu
8 AWB Cu 75°C
MOD-400 AND MOD-400T MODELS
PRODUCT DIMENSIONS
5
(127)
57 1/2
(1461)
18
(457)
35
(889)
4. Mount Control Panel onto electrical box using screws
supplied.
TO PLUMB:
1. A drain manifold complete with valve is supplied on all
Model "DM" and "TDM" units. Location of valve handle is at the
discretion of the fabricator. Install and tighten pipe plug in
one end of the manifold.
2. Warmers with 'D" suffix are supplied with individual 1/2''
female N.P.T. drains.
3. Connect 1'' drain connection to suitable drain line.
TO WIRE:
1. Final connection is accomplished by bringing proper power
supply leads (see 'wiring requirements' label) through conduit
knockout to terminal block supplied within the Master Control
Panel. Check nameplates for voltage and phase.
2. Do not connect to a circuit operating at more than 150
volts to ground.
NOTE: INSTALLATION MUST MEET LOCAL PLUMBING AND
ELECTRICAL CODES.
WARMER FLANGE
GASKET
WELLSLOK
SCREWDRIVER
COUNTERTOP
WELLS/BLOOMFIELD * VERDI, NV
INSTALLATION INSTRUCTIONS
BUILT-IN MODULAR WARMERS
MOD 400 SERIES (D, TD, TDM)
INCHES
(MM)
14
(356)
7 3/4
(197)
23 5/8
2 1/4
(600)
(57)
6 1/4
(159)
9 3/4
(248)
1/2 INCH
INTERNAL N.P.T.
'D' MODELS ONLY
'T' MODELS
IMPORTANT:
MOUNT APPLIANCE SO THAT BOTH
THE CONTROL PANEL AND DRAIN
MANIFOLD ARE LOCATED TO THE
FRONT OF THE FIXTURE.
1 3/4
(44)
MASTER
CONTROL
PANEL
37099-4 REV (-)
