Summary of Contents for ATIM Cloud Wireless ACW/SF8-LVL

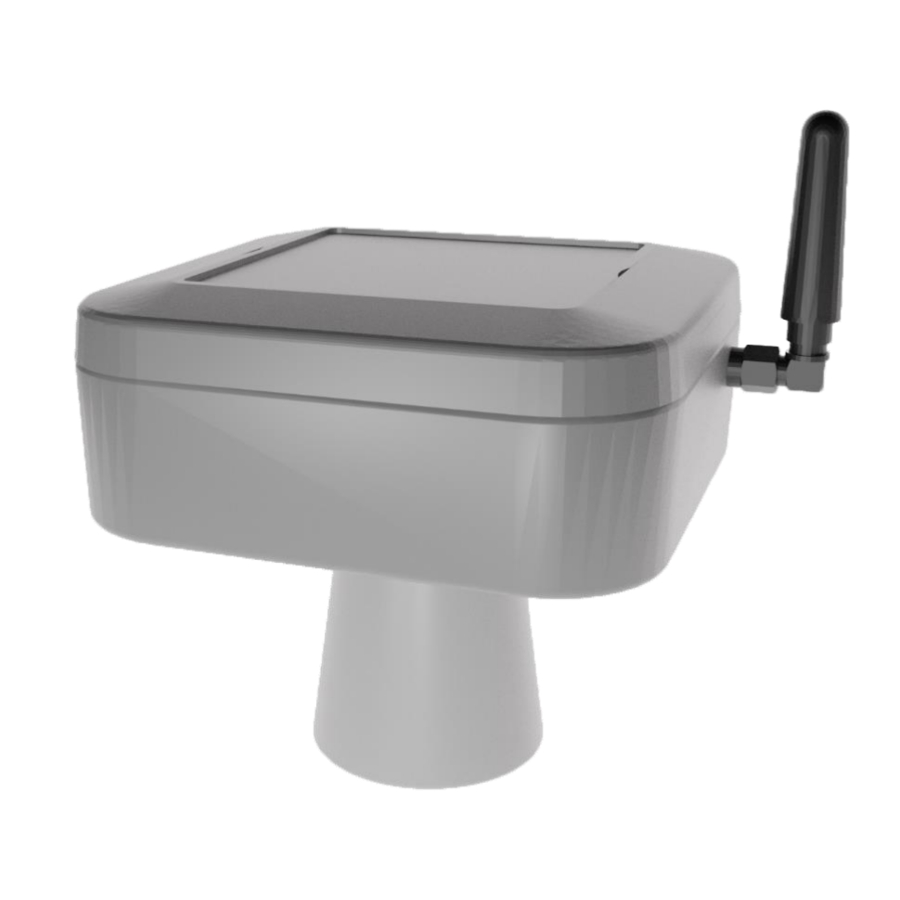

- Page 1 ATIM Cloud Wireless Ultrasonic distance measurement User Guide Concerned models: ACW/SF8-LVL ACW/LW8-LVL ATIM Radiocommunications www.atim.com Chemin des Guillets info@atim.com 38250 Villard de Lans +33 4 76 95 50 65 France...
-
Page 2: Table Of Contents
Table of contents THIS USER GUIDE IS APPLICABLE TO THE FOLLOWING REFERENCES....................4 DOCUMENT VERSION HISTORY ................................4 DISCLAIMER ......................................4 TRADEMARKS AND COPYRIGHT ................................4 DECLARATION OF COMPLIANCE ................................. 5 RADIO ........................................6 PRELUDE......................................7 TECHNICAL SPECIFICATIONS ................................8 .................................... - Page 3 Alert frame ....................................28 DOWNLINK ......................................29 .) ..............29 ONFIGURATION OF THE FRAME PARAMETERS SENDING PERIOD NUMBER OF SAMPLES ........................29 ONFIGURATION OF THE DISTANCE OFFSET PARAMETER ..................................30 HRESHOLD SETUP TECHNICAL SUPPORT ..................................31 ATIM_ACW-LVL_UG_EN_V1.0...
-
Page 4: This User Guide Is Applicable To The Following References
Trademarks and copyright ATIM radiocommunications®, ACW ATIM Cloud Wireless® and ARM Advanced Radio Modem® are registered trademarks of ATIM SARL in France. The other trademarks mentioned in this document are the property of their respective owners. ATIM_ACW-LVL_UG_EN_V1.0... -
Page 5: Declaration Of Compliance
Declaration of compliance All ACW Atim Cloud Wireless® products comply with the regulatory requirements of the R&TTE Directive (1999/5/EC), article 3: 1 SAFETY (Article 3.1a of the 1999/5/EC Directive) NF EN60950-1 Ed. 2006/A1:2010/A11:2009/A12:2011 (health) EN62479: 2010 (power <20mW) or EN62311:2008 (power > 20mW) 2 Electromagnetic compatibility (Article 3.1b of the 1999/5/EC Directive) -
Page 6: Radio
General hazard – Failure to follow the instructions presents a risk of equipment damage. Electrical hazard – Failure to follow the instructions presents a risk of electrocution and physical injury. Direct-current symbol WARNING: do not install this equipment near any source of heat or any source of humidity. WARNING: for your safety, it is essential that this equipment be switched off and disconnected from mains power before carrying out any technical operation on it. -
Page 7: Prelude
Prelude This user guide describes the ATIM ACW-LVL products functionalities. It explains operating, configuration and installation modes in functions of different use cases. ATIM_ACW-LVL_UG_EN_V1.0... -
Page 8: Technical Specifications
Technical specifications Product Dimensions 100 x 100 x 95 mm (including sensor) Antenna External (SMA connector) -25°C to +70°C (Operating mode) Temperature -40°C to +70°C (Storage mode) Mounts to Tank Casing IP 67 Battery 2x packs Lithium AA batteries Weight 300 g Frequency 865 –... -
Page 9: Casing
Casing Footprint Mounting Holes Dimensions are given in millimeters. Fasteners Different options are available to mount the ACW-LVL (by default the product is shipped with any of the option): • screwed directly to a tank thanks to its mounting hardware. The external diameter of the mounting hardware is 59 mm and the thread pitch is 2 inches. - Page 10 • Using a bracket (attached the the mounting holes of the case) for wall mounting for example. Images are for reference only • Using U shaped brackets for tubes Images are for reference only ATIM_ACW-LVL_UG_EN_V1.0...
-
Page 11: Product Identification
Product Identification The Sigfox or LoRaWAN IDs of the product are visible on the outside label on the back of the product, inside on the electronic card, and in the status section of the ACW configurator. For LoRaWAN modems, the communication keys are automatically given by the network (pairing by "Over The Air Activation", or OTAA). -
Page 12: Installation And Dismantling
Installation and dismantling It is necessary to open the box to the micro-USB port allowing the configuration of the module. To do this, you must unscrew the four screws which hold the top and bottom of the enclosure together. Screws dismount enclosure Installation... -
Page 13: Magnet Position
Magnet position The magnet should be positioned on the bottom right corner of the case (when the antenna is on the top left corner) as shown in the following picture: ATIM_ACW-LVL_UG_EN_V1.0... -
Page 14: Operating
Operating Operating modes The operating of the ACW-LVL is divided between different modes: Operation mode: this is the default mode when starting the product. In this mode, the module periodically sends measurements according to the configuration applied (if the product has never been configured, the factory configuration applies, see Factory settings). -
Page 15: Product Start-Up
Product start-up In most cases, the ACW-LVL is started up before delivery (battery packs already connected) and then placed in deep standby to limit consumption. To place the product in its operating mode, bring a magnet close to the side of the case for 6 seconds. During these 6 seconds, the product LED should flash WHITE and then... -
Page 16: Battery Passivation
Battery passivation The ACW-TMXP incorporates a battery depassivation feature, to limit the phenomenon of battery passivation during prolonged phases of deep standby. This feature is automatically activated as soon as the product goes into its deep sleep mode. The product will then wake up once a day to start the battery depassivation sequence, then the product will automatically return to deep standby. -
Page 17: Acw Configurator
Sigfox: V0.0.1 V4.5.8 LoRaWAN: V0.0.1 Download and install the configuration software setup ’setupACW.exe‘ at: http://www.atim.com/docs/downloadcheck.php?ID=3536 When the ACW Configurator is launched, the waiting Click on "Help" at the top left of the window then on window appears on the screen. -
Page 18: Acw-Lvl Setup
ACW-LVL setup Emission period and samples in the frame The transmission period (1) corresponds to the time interval between each sending of a measurement frame. This period can be configured from 10 min to 255 h and its default value is 1 hour. In addition, it is possible to configure the number of samples in a frame (2). -
Page 19: Keep Alive Frame Period
Keep alive frame period A life frame can be sent periodically (6). This frame will raise the supply voltage of the product. The value of this period can be configured from 1 hour to 1 month. By default, the value is set to 4 days. Frame timestamp It is possible to deactivate / activate the time stamping of all radio frames (7) WARNING: This option when activated monopolizes 4 bytes in the frame which cannot be used for useful data. -
Page 20: Factory Settings
Once the configuration is complete, do not leave the module connected via USB. This operating mode is very energy intensive. When you remove the USB link without disconnecting the battery, the module automatically returns to normal operation. Factory settings Radio frames settings: Radio frame emission period: 10 minutes Number of samplings: 1 History depth: 1... -
Page 21: Updates Of Acw
Updates of ACW When connected with Bluetooth Low Energy to the product, it is possible to update the different software that composes it. To do this, go to the menu Tools->Updater (CTRL+U) ATIM_ACW-LVL_UG_EN_V1.0... -
Page 22: Frames Format
Frames format Sigfox and LoRaWAN Uplink frame Byte 1 Byte 2 . . . Byte n Frame header Frame-specific data We can differentiate three types of frames: Classic frame; New generation: Very close to the old frames, the difference is that you can ⚫... -
Page 23: Measurement Frame
Different type of frames: Frame type Size of data Descriptions 0x00 Reserved 0x01 5 bytes Keep alive frame 0x02 0 byte Downlink request for network testing 0x03 8 bytes Reserved 0x04 Reserved 0x05 1 byte Test frame with counter 0x06 Variable (Cfg box) Response to a setup frame. -
Page 24: Alert Frame
In the case of ACW-LVL, the measurement type is 0x07 on 2 bytes for the distance in centimeters. In the case of the ACW-LVL, there is only 1 way (i.e. 1 sensor) the channel’s number will always be 0. Type of measurement Units Data size Data type... -
Page 25: Keep-Alive Frame
The sample that caused the alert is then inserted afterwards. Keep-alive frame The life frame is sent at regular intervals according to the configuration applied (by default 4 days) and contains the battery levels of the product when empty (the product does nothing) and when charging (the product is transmitting a frame radio). - Page 26 Error Type of error Description code 0x81 ERR_UNKNOWN 0x82 ERR_BUF_SMALLER The data table is full, impossible to write any additional data 0x83 ERR_DEPTH_HISTORIC_OUT_OF_RANGE The history depth is too large or too small for the frame 0x84 ERR_NB_SAMPLE_OUT_OF_RANGE The number of sampling is too large or too small for the frame 0x85 ERR_NWAY_OUT_OF_RANGE The number of the channel in the header of the frame is too large or...
-
Page 27: Examples Of Frames
Examples of frames Measurement frame Measurement frame without time stamp, no history and a sample number of 1. Byte 1 Byte 2 Byte 3 Byte 4 0xA0 0x07 0x01 0x22 (new generation (channel 0, measurement measurement frame, type: distance) no history, 1 sample) In this frame the sensors returned the value 0x0122 (290 centimeters) Measurement frame without time stamp, no history and a sample number of 2. - Page 28 Alert frame For exceeding the threshold value defined: Byte 1 Byte 2 Byte 3 Byte 4 0x8D 0x47 0x01 0xAF (new generation alert frame) (exceeding high threshold channel 0, distance measurement The sample that triggered the threshold on channel 0 is 0x01AF (431 centimeters). ATIM_ACW-LVL_UG_EN_V1.0...
- Page 29 The operation of the Downlink is explained in the document ATIM_ACW-DLConfig_UG_FR_v1.4, relating to version V1.2.0 of the ATIM Downlink Protocol (see this document for all parameters and commands common to all products). The parameters specific to ACW-LVL are as follows: Configuration of the frame parameters (sending period, number of samples, etc.)
- Page 30 Threshold setup Parameter Frame size Index Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 Byte 9 Byte 10 code (Byte 1) (Byte 2) (byte 3 0xD5 0x08 0x00 High threshold Low threshold hysteresis Duration For the threshold setup, the byte 0 is the header for an extended downlink frame + the number of the parameter (0xC0 | 0x15).
- Page 31 Technical support For any information or technical problems, you can contact our technical support: www.atim.com/fr/technical-support ATIM_ACW-LVL_UG_EN_V1.0...
