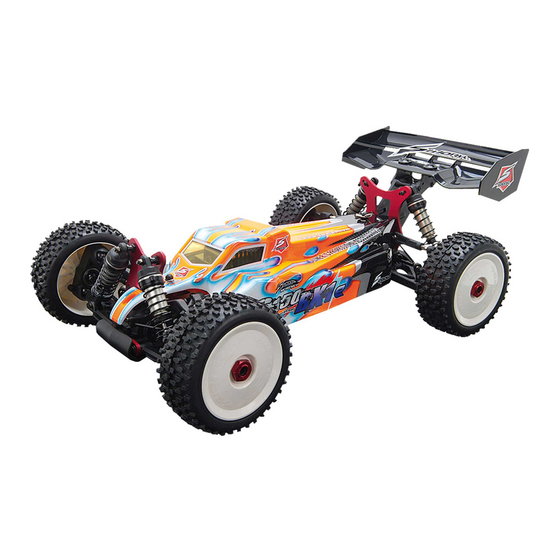

1/8 scale off-road racing brushless power sport buggy
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SWORKz S350 BX1e series INSTRUCTION MANUAL
SWORKz S350 BX1e series INSTRUCTION MANUAL
2802439

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S350 BX1e and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SWorkz S350 BX1e

Summary of Contents for SWorkz S350 BX1e

  • Page 1 SWORKz S350 BX1e series INSTRUCTION MANUAL SWORKz S350 BX1e series INSTRUCTION MANUAL 2802439...

  • Page 2: Instruction

    (www.sworkz.com), so check often. If you should ever have any questions on your S350 BX1e, please feel free to contact our official SWORKz dealers and distributors, as they will be glad to help you. You may also contact us at any time for the most up to date information and support.

  • Page 3: Warranty

    Contact your local hobby shop or SWORKz distributor for all claims and questions. Claims must be well documented. All Claims are subject to expert...

  • Page 4: Table Of Contents

    7-34 Set-up Sheet SWORKz Driver’s Set-up Sheet for Reference S350 BX1e Part No. List 37-38 S350 BX1e Spare & Option Part List 38-39 Company Info Explosion View with Screw Items 41-42 This radio control racing car is not a toy! This high-performance R/C model is recommended for ages 14 and older.

  • Page 5: Required Equipment For Operation

    R e q u i re d Eq ui pm e nt fo r O p e rat i o n Radio Gear Stick Type Receiver ESC system Steering servo Wheel & Trigger Type Required for 1/8 Brushless Motor series Charger and LiPo Battery (Maximun up for 4168mm 2250KV) Tools Recommended...

  • Page 6: Operation Guide/Safety Precautions

    The SWORKz S350 BX1e is a high performance radio control model which needs to be operated with caution and common sense. The S350 BX1e Sport RTR is not intended for children under the age of 14 without adult supervision. SWORKz shall not be held liable for any loss or damages, whether direct, indirect, act of nature, arising from abuse or misuse of this product or any other product required.

  • Page 7: Assembly Steps

    330013 Bevel Gear Shaft 101004 Washer 3.5X10X0.2mm 610002 101004 101004 320004 101004 330013 320004 320004 101004 Fill the differentials with oil up to 80% full. Use SWORKz diff. Oil 3000cps for the front Diff. and 1000cps for the rear Diff.
  • Page 8 M3x10mm FH/ST HEX Screw 330013 Bevel Gear Shaft 101004 610002 Washer 3.5X10X0.2mm 101004 200268 108007 108007 101004 320004 330013 320004 101004 101004 Fill the differentials with Oil up to 80% full. Use SWORKz Diff. Oil 3000cps for the center Diff.
  • Page 9 104001 M5x4mm Set Screw 106010 M3x6mm Hex Socket OH/TP Screw 200024 108001 M3x12mm FH/ST HEX Screw 200267 106012 M3x35mmHex Soket OH/TP Screw 116006 106010 101018 SHIM 13x16x0.2mm 330160 116006 104001 Ball Bearing 8x16x5mm 200102 330227 108001 The standard front lower arm holder (200102) can offer 0°...
  • Page 10 200024 104001 M5x4mm Set Screw 106010 200267 330160 M3x6mm Hex Socket OH/TP Screw 106003 M3x16mm Hex Socket OH/TP Screw 116006 106010 200108 108001 200280 M3x12mm FH/ST HEX Screw 300026 108008 The rear lower arm holder insert can offer 1.0, 2.0 and M3x35mm FH/ST HEX Screw 104001 3.0 rear kick-up for your rear...
  • Page 11 200134 200110 330103 200110 200134 Front/Rear Lower Arm HingPin 330103 Use a 2mm Hex Wrench and slowly tighten the 2.0mm Hinge Pins. 104004 200101 M3x3mm Set Screw Pop in the Stabilizer Guide. 104004 104004 115008...
  • Page 12 104005 M3x4mm Set Screw 105004 M2.6x6mm Cap Screw 104005 105004 106002 M3x10mm Hex Socket OH/TP Screw 106002 300030 300030 330252 200124 330252 330118 200124 Screw and adjust 330118 Knuckle Pivot Ball Nut so as the pivot ball can be moved smoothly.
  • Page 13 104001 M5x4mm Set Screw 330111 Pin M2.5x14.8mm 330124 330110 Pin M3.0x16.8mm 330109 330112 330111 116006 Ball Bearing 8x16x5mm 116012 330124 116012 330121 Ball Bearing 15x21x4mm 116006 104001 106002 M3x10mm Hex Socket OH/TP Screw 103001 106002 200126 103001 M3 Nut Lock 200125 106002 200126...
  • Page 14 106008 M3x12mm Hex Socket OH/TP Screw 330119 Front Upper Arm HingPin 330119 200133 200128 300027 200133 330119 200134 106008 200127 200298 200297 200298 200297...
  • Page 15 330251 Steering Plate Bushing 106008 200296 106008 106008 330135 M3x12mm Hex Socket OH/TP Screw 300031 330251 330251 103001 101021 115004 M3 Nut Lock 200117 101021 101021 M3x8xT1mm 200296 200116 103001 200118 330114 103001 106002 106002 M3x10mm Hex Socket OH/TP Screw 101019 SHIM 6.0x10.0x0.2mm 101019...
  • Page 16 104007 M4x8mm Set Screw 330136 104007 106005 M3x15mm Hex Socket OH/TP Screw 200158 330134 106005 200132 106002 M3x10mm Hex Socket OH/TP Screw 108015 108015 M3x16mm FH/ST HEX Screw 200172 300028 200170 106008 M3x12mm Hex Socket OH/TP Screw 200119 106002 106008 Ensure that the direction of the shock tower insert #200119...
  • Page 17 200133 106010 M3x6mm Hex Socket OH/TP Screw 330103 200133 106010 330103 Use a 2mm Hex Wrench and slowly tighten the Hinge Pins. 330103 (Check page 11) Front/Rear Lower Arm HingPin 104004 Pop in the Stabilizer Guide. 200101 M3x3mm Set Screw 104004 104004 105005...
  • Page 18 104005 M3x4mm Set Screw 105004 M2.6x6mm Cap Screw 104005 105004 104005 104001 M5x4mm Set Screw 330124 Pin M3.0x16.8mm 330228 200130 116006 Ball Bearing 8x16x5mm 116012 116006 330121 116012 Ball Bearing 15x21x4mm 200129 330124 104001...
  • Page 19 200136 330232 200135 330120 330232 106010 106010 330120 Rear Hub Carriers Hing pin 200135 106010 Use a 2mm Hex Wrench M3x6mm Hex Socket OH/TP Screw 330120 and slowly tighten the Hinge Pins. 200136 200135 Rear Wheel Axle Insert (1mm) 200138 200136 Rear Wheel Axle Insert (2mm) 330125...
  • Page 20 103001 M3 Nut Lock 106003 106003 M3x16mm Hex Socket OH/TP Screw 105011 103001 M3x23mm Cap Screw 105011 103001 105011 103001 103001 108014 M3x3mm FH/ST HEX Screw 108014 108014 106011 M3x4mm Hex Soket OH/TP Screw 106011 106011 250015 330259 108014 106011 106011 250015 108014...
  • Page 21 106008 106008 M3x12mm Hex Soket OH/TP Screw 108003 M3x10mm FH/ST HEX Screw 200254 108001 M3x12mm FH/ST HEX Screw 108010 M4x10mm FH/ST HEX Screw 108012 M4x16mm FH/ST HEX Screw 108003 108012 108010 108001 108012 M4x16mm FH/ST HEX Screw 200111 108012...
  • Page 22 106002 104008 M4x4mm Set Screw 106002 106002 M3x10mm Hex Socket OH/TP Screw 200269 105012 M3x10mm Cap Screw Only included in RTR kit 330238 101010 105012 101010 330236 105012 104008 330235 108006 M3x8mm FH/ST HEX Screw 108010 M4x10mm FH/ST HEX Screw 330260 108006 108010...
  • Page 23 200253 103001 M3 Nut Lock 108001 106006 M3x12mm FH/ST HEX Screw 103001 108012 M4x16mm FH/ST HEX Screw 106006 M3x20mm Hex Socket OH/TP Screw 330233 108012 108001 330126 Right Steering Turnbuckle 200139 330126 330127 330127 Left 200140 22mm...
  • Page 24 103001 M3 Nut Lock 108009 103001 M3x20mm FH/ST HEX Screw 108009 108009 103001 108006 M3x8mm FH/ST HEX Screw 200272 108006 108006...
  • Page 25 106011 M3x4mm Hex Soket OH/TP Screw 106010 M3x6mm Hex Socket OH/TP Screw 106011 106011 Assemble 200277 106011 200277 Transponder Mount when 106010 using the transponder. transponder is not included 200277 in the kit. 106008 M3x12mm Hex Socket OH/TP Screw 200276 Only included 106008 in RTR kit...
  • Page 26 200179 103001 M3 Nut Lock 330134 330134 330155 Steering Servo Turnbuckle (M3x30mm) 330155 106005 200179 M3x15mm Hex Socket OH/TP Screw 101014 M3 Pivot Ball Bushing 106005 101014 103001 200175 200175 200175 103001 M3 Nut Lock 108006 M3x8mm FH/ST HEX Screw 106005 106005 M3x15mm Hex Socket OH/TP Screw(HT)
  • Page 27 Use the Hook & Loop strap following the teps above. Right 540001 Left 540001 200270 540001 200271 108007 M3x6mm FH/ST HEX Screw 108007 108007 108007...
  • Page 28 108007 M3x6mm FH/ST HEX Screw 108007 200274 106010 Only included M3x6mm Hex Socket OH/TP Screw in RTR kit 106010 200273 200275 Only included in RTR kit...
  • Page 29 420010 106010 M3x6mm Hex Socket OH/TP Screw 200193 108006 M3x8mm FH/ST HEX Screw 106010 108006...
  • Page 30 103004 101011 330254 410029 Shock Body (L) 200283 330253 Shock Shaft (S) 200293 410029 shock seal O-Ring 200284 330255 101011 200292 M2.6x6xT0.6mm 330256 103004 M2.5 Nut Lock 410028 Shock Bladder 200281 410028 330253 330254 115049 Shock Spring (S) 200290 200291 330257 200285 Spring Spacer 1mm...
  • Page 31 330258 105013 330258 105013 M3x28mm Cap Screw 105013 105013 103001 103001 M3 Nut Lock 103001 106005 M3x15mm Hex Socket OH/TP Screw 106005 106005 103001 103001 106005 106005...
  • Page 32 200146(R) 106005 103001 103001 M3 Nut Lock 200145(L) 103001 106005 M3x15mm Hex Socket OH/TP Screw 200144 200143(R) 103001 106005 200142(L) 106006 106006 M3x20mm Hex Socket OH/TP Screw 106006 105005 200147 200147 105005 M3x12mm Cap Screw 200141...
  • Page 33 330122 Wheel Nut 420024 420024 200022 200022 330122 330122 106010 106010 M3x6mm Hex Socket OH/TP Screw 250014...
  • Page 34 250014 115019 115019...

  • Page 35: Set-Up Sheet

    SET-UP SHEET Race time / Lap: w w w. s w o r k z . c o m Best lap: Track Conditions Size: Open Med. Tight Med. Traction: High Surface: Smooth Med. Bumpy Diff. Oil Electric System Name: Front: Date: Center: ESC Type:...

  • Page 36: Sworkz Driver's Set-Up Sheet For Reference

    Track Conditions Size: Open Med. Tight Med. Traction: High Surface: Smooth Med. Bumpy Diff. Oil Electric System Name: S350 BX1e Sport Front: 3000 Date: 3000 Center: SePower SE-90 ESC ESC Type: Track: Rear: 1000 SePower SP-1800 BL Tire Motor Type: Front...

  • Page 37: S350 Bx1E Part No. List

    210002 Diff Case with Matel part SW-210002 200120 Front Lower Arm (L) SW-2501093 250014 S350 BX1e Shark Style Clean Body Shell(Pre Cut) 1 SW-250014 200121 Front Lower Arm ( R ) SW-2501093 250015 S350 BE1 Side Guard R/L (Pre Cut)

  • Page 38: S350 Bx1E Spare & Option Part List

    Antenna Tube SW-210002 S350 Diff. Case Set SW-210010 1/8 RTR Shock Spring Set SW-250014 S350 BX1e Shark Style Clean Body Shell(Pre Cut) SW-250015 S350 BE1 Side Guard R/L (Pre Cut) SW-2501093 S350 Front Lower Arm Set (L&R) SW-2501094 S350 Rear Lower Arm Set (L&R) SW-2501095 S350 Rear Hub Carrier Set (L&R)
  • Page 39 SW-330242 S350 Series Lightened Aluminum CVD Axle (2pc) SW-330236 S350 BE1 Series Aluminum Center Diff. Mount (F) SW-330243 SWORKz 3x18mm Shock Hex Screw Set (Anti-Clockwise) SW-330237 S350 BE1 Series Main Chassis for Pro Kit SW-330398 S-WORKz Pro Wheel Nut SW-330238 S350 BE1 Series Aluminum Center Diff.

  • Page 40: Company Info

    Speedmaster Hobby CO., LTD. TEL:+886-3-538-7638 FAX:+886-3-538-7328 1F., No.18, Aly. 32, Ln. 251, Niupu E. Rd., Xiangshan Dist., Hsinchu City 300, Taiwan (R.O.C.)
